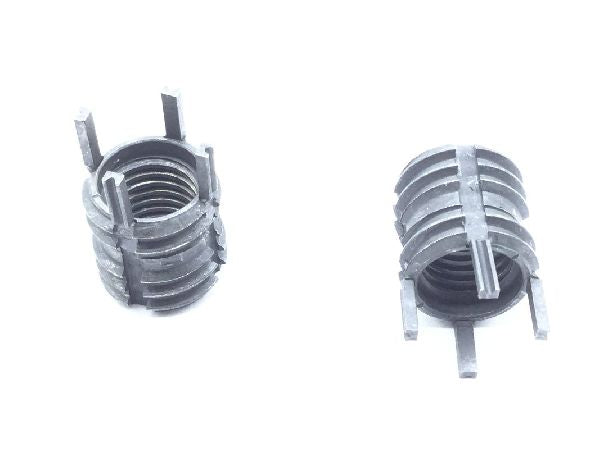

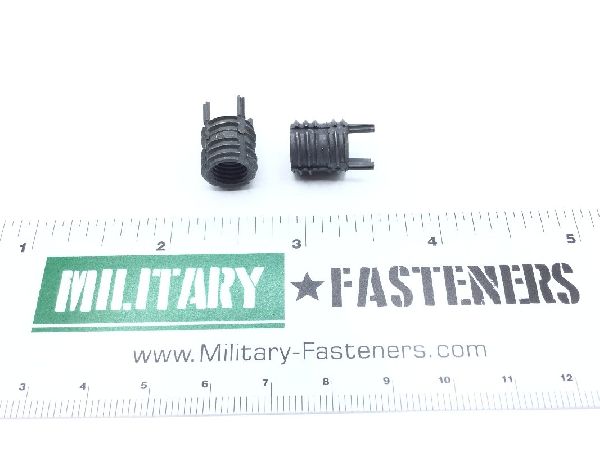

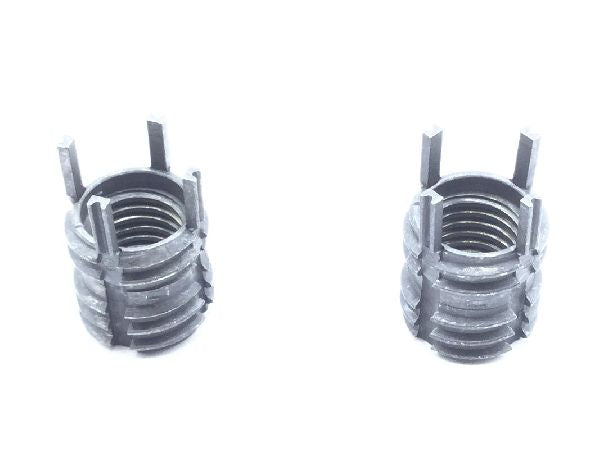

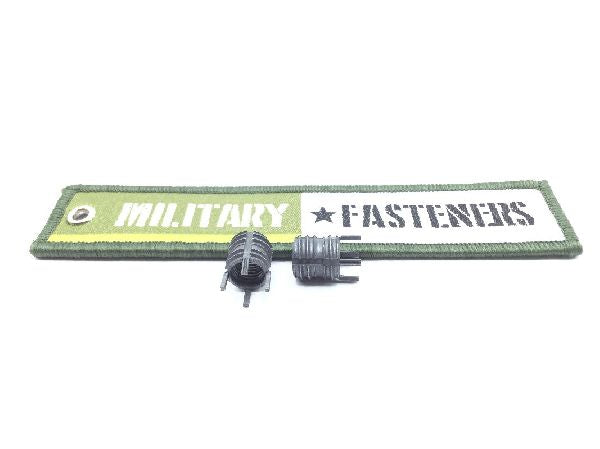

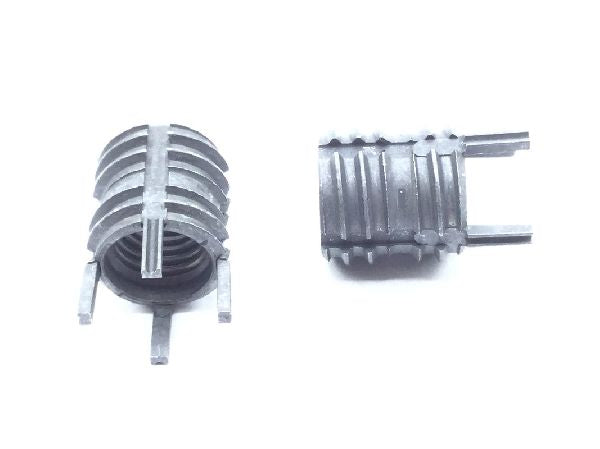

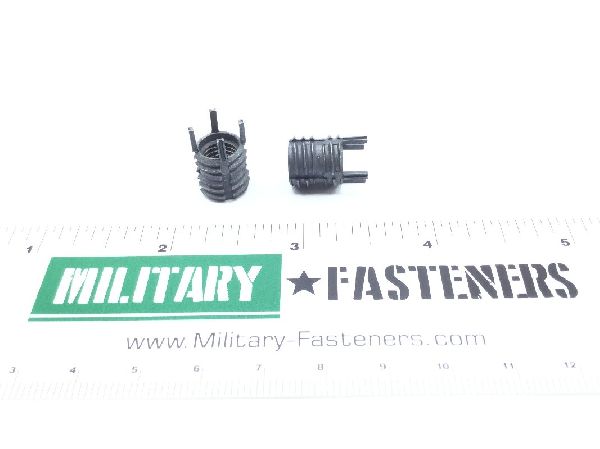

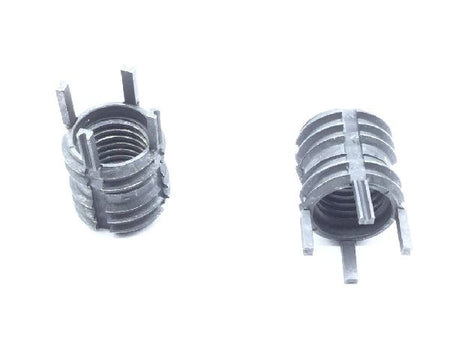

MS51830CA203L Screw Thread Insert

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Iron alloy 660

Surface Treatment

Mil-s-5002 military specification single treatment response

Thread Class

Thread Size

0.312 inches

Features: Individually keyed
Features Provided: Individually keyed
Full Internal Thread Length: 0.360 inches
Insert Size: 0.438-14 unc (coarse thread) 2a
Internal Thread Relief Depth: 0.070 inches
Length: 0.430 inches
Material Specification: Ams 5737 assn standard single material response
Specification Data: 80205-nas1394 professional/industrial association standard
Style Designator: Grooved keylock
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
