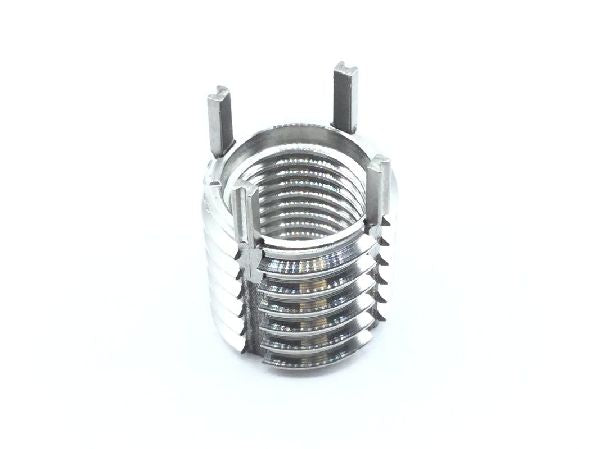

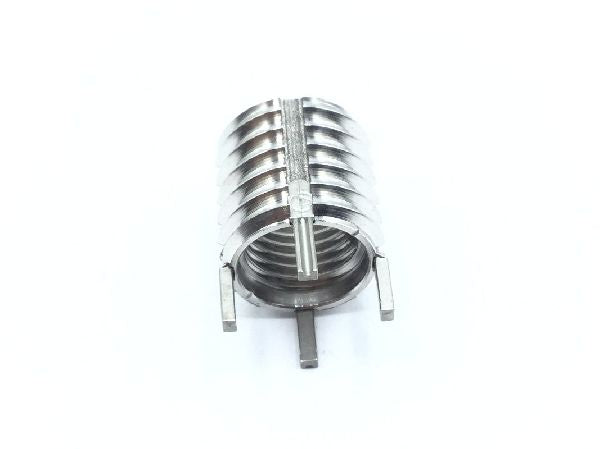

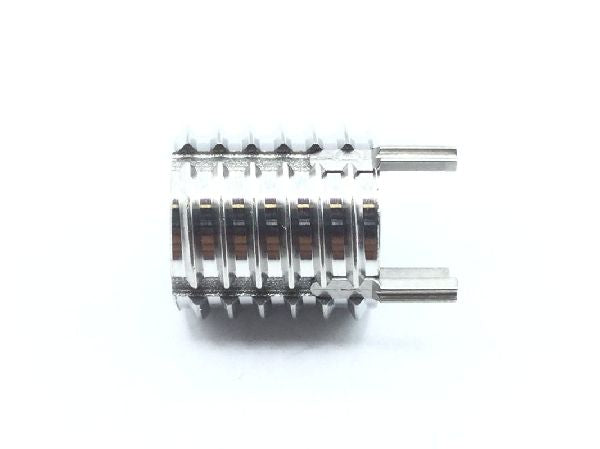

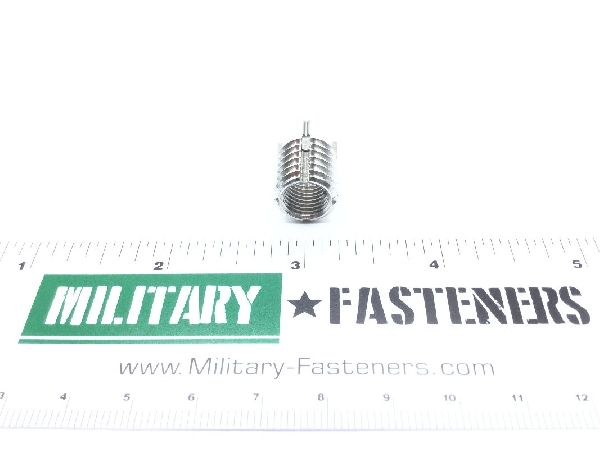

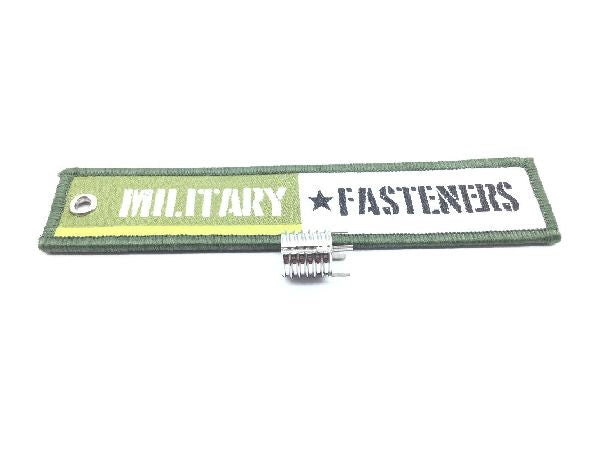

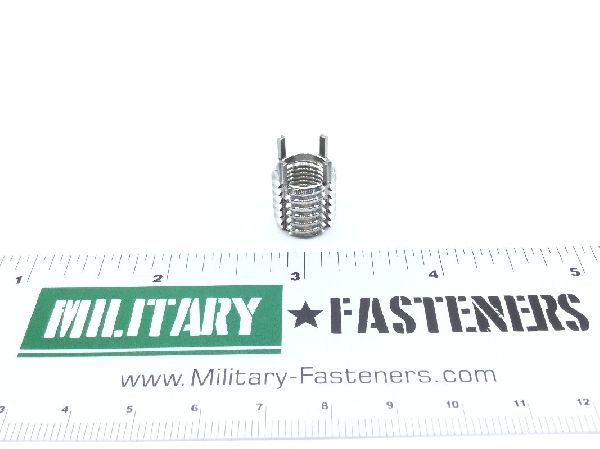

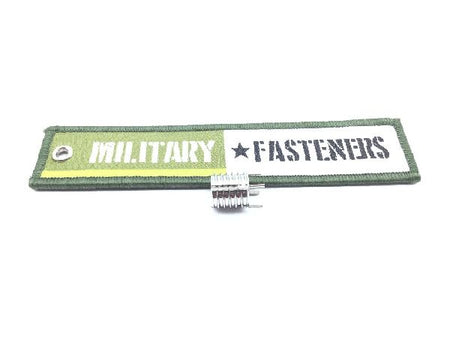

MS51830CA204 Screw Thread Insert

MS51830CA204 Screw Thread Insert (2)

MS51830CA204 Screw Thread Insert (3)

MS51830CA204 Screw Thread Insert (4)

MS51830CA204 Screw Thread Insert (5)

MS51830CA204 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51830CA204 Screw Thread Insert

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $37.75

Units per Pack 2

Price per Pack $75.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $75.50

Add item to quote

Material

Iron alloy 660

Surface Treatment

Mil-s-5002 military specification single treatment response

Thread Class

3b

Thread Size

0.375 inches

Full Internal Thread Length: 0.430 inches
Insert Size: 0.500-13 unc (coarse thread) class 2a
Internal Thread Relief Depth: 0.070 inches
Length: 0.500 inches
Material Specification: Ams 5737 assn standard single material response
Specification Data: 80205-nas1394 professional/industrial association standard
Style Designator: Keylock
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
