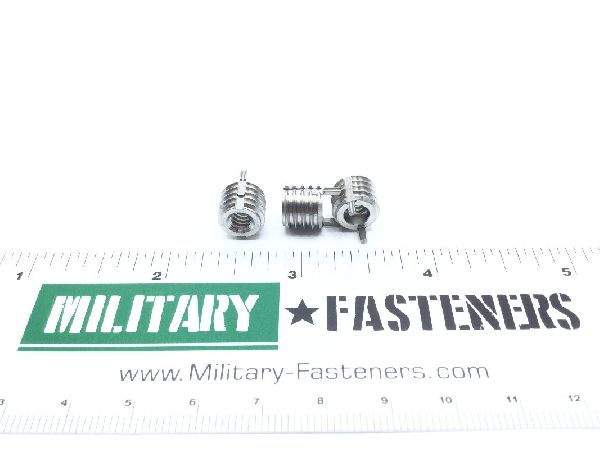

MS51831-101 Screw Thread Insert

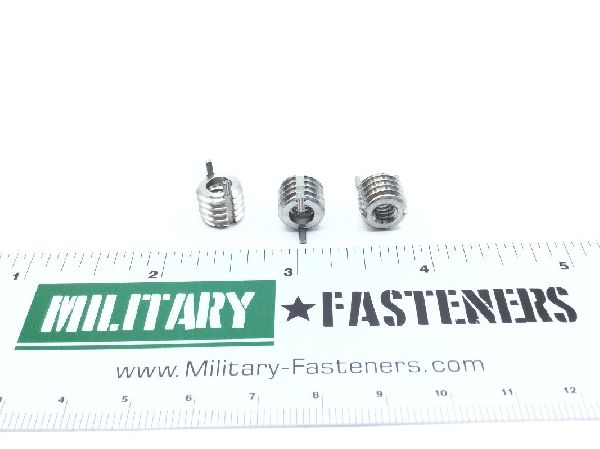

MS51831-101 Screw Thread Insert (2)

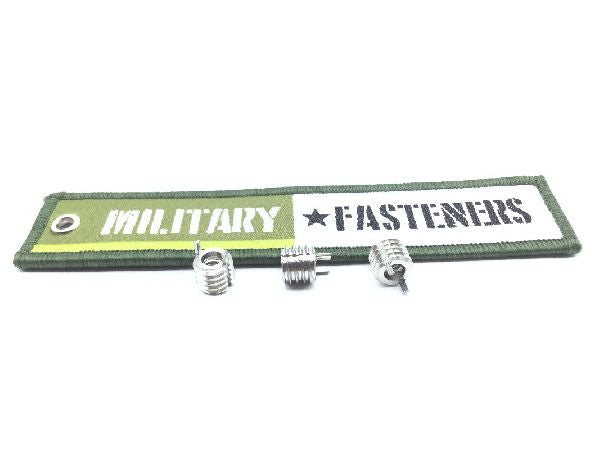

MS51831-101 Screw Thread Insert (3)

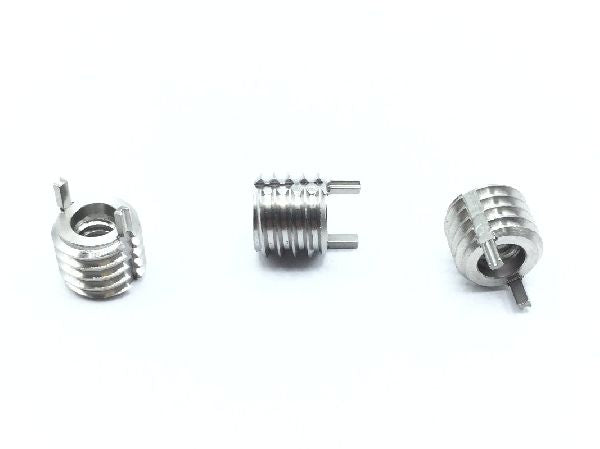

MS51831-101 Screw Thread Insert (4)

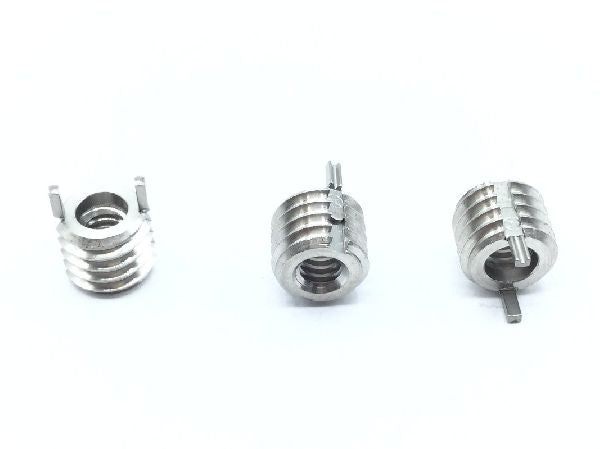

MS51831-101 Screw Thread Insert (5)

MS51831-101 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51831-101 Screw Thread Insert

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $3.74

Units per Pack 10

Price per Pack $37.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $37.40

Add item to quote

Material

Steel comp

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

3b

Thread Size

0.190 inches

Full Internal Thread Length: Between 0.217 inches and 0.267 inches
Insert Size: 42437
Internal Thread Relief Depth: Between 0.06 inches and 0.08 inches
Length: Between 0.297 inches and 0.327 inches
Material Specification: Fed standard 66 federal standard single material response
Style Designator: Keylock
Thread Direction: Right-hand
Thread Length: 0.242 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjc
