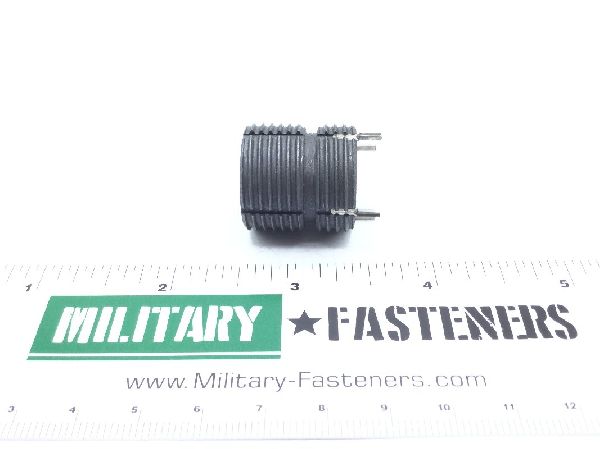

MS51831-108L Screw Thread Insert

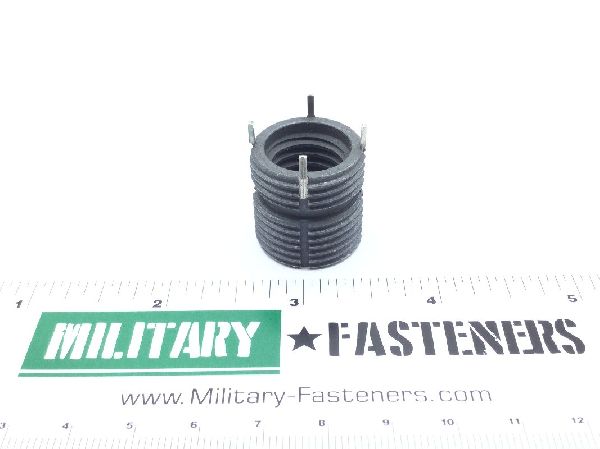

MS51831-108L Screw Thread Insert (2)

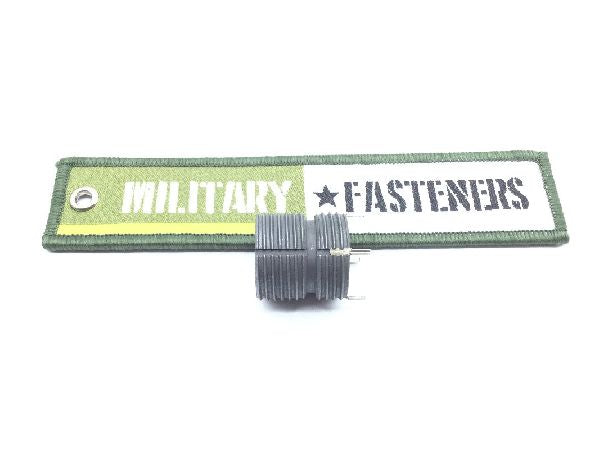

MS51831-108L Screw Thread Insert (3)

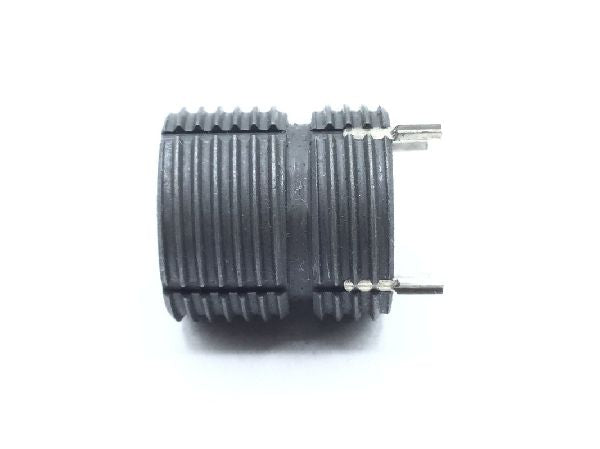

MS51831-108L Screw Thread Insert (4)

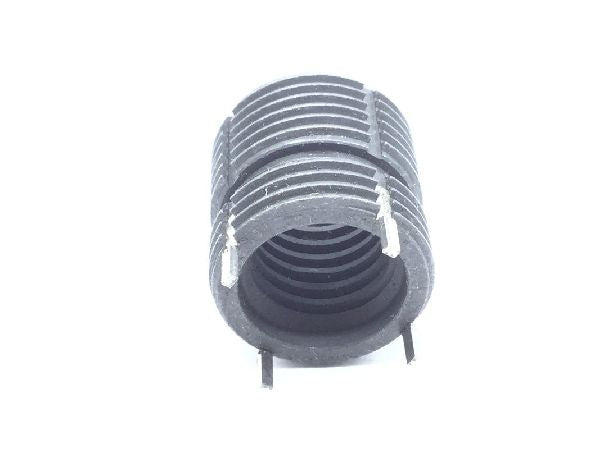

MS51831-108L Screw Thread Insert (5)

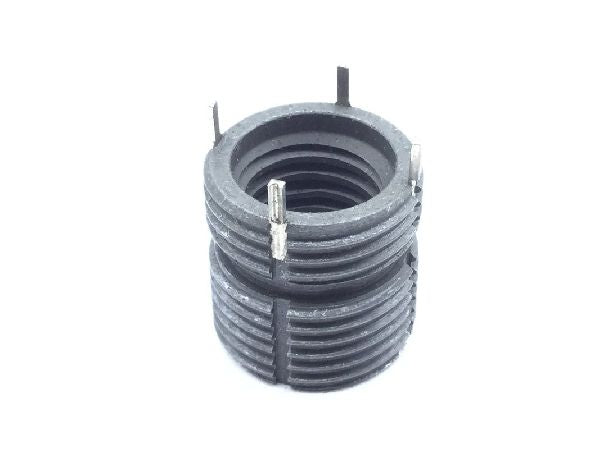

MS51831-108L Screw Thread Insert (6)
MS51831-108L Screw Thread Insert
MS51831-108L Screw Thread Insert (2)
MS51831-108L Screw Thread Insert (3)
MS51831-108L Screw Thread Insert (4)
MS51831-108L Screw Thread Insert (5)
MS51831-108L Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51831-108L Screw Thread Insert

Product Series
MS
ECCN
EAR99
Schedule
7318.16.0085
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel comp
Surface Treatment
Qq-p-35 federal specification single treatment response
Thread Class
3b
Thread Size
0.625 inches
Features
Individually keyed
Features Provided
Individually keyed
Full Internal Thread Length
0.775 inches
Insert Size
0.875-14 unf (fine thread) class 2a
Internal Thread Relief Depth
0.10 inches
Length
0.875 inches
Material Specification
Aisi/sae assn standard single material response
Special Features
Has internal thread lock
Style Designator
Keylock
Thread Direction
Right-hand
Thread Length
0.775 inches
Thread Qty Per Inch (tpi)
11
Thread Series Designator
Unjc
