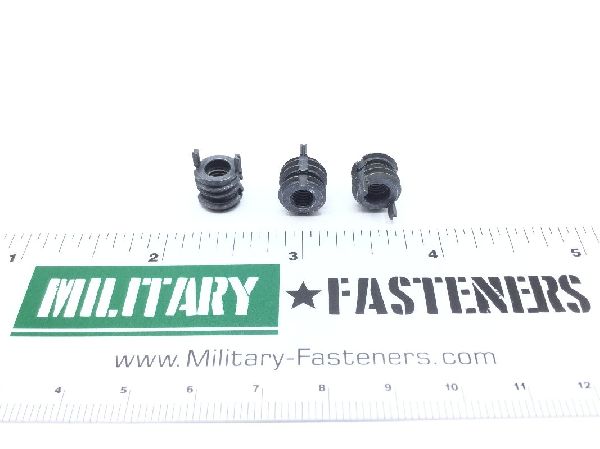

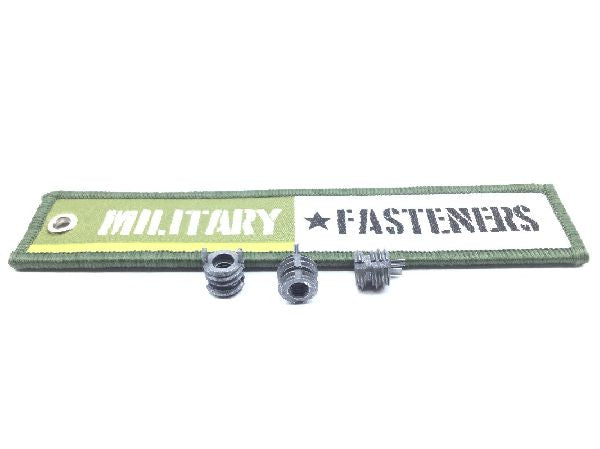

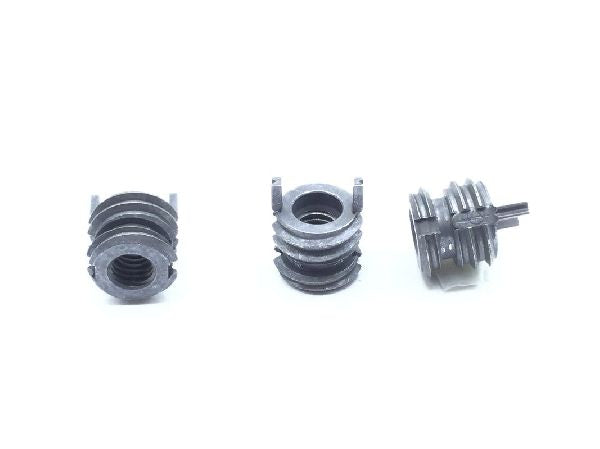

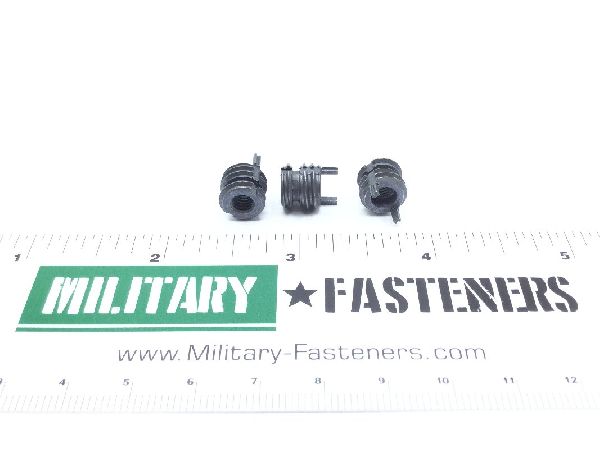

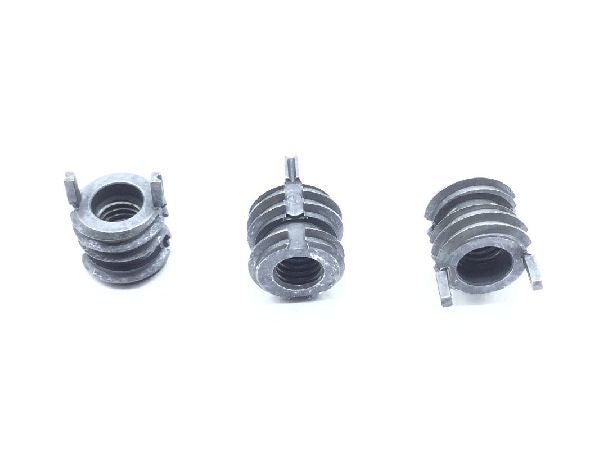

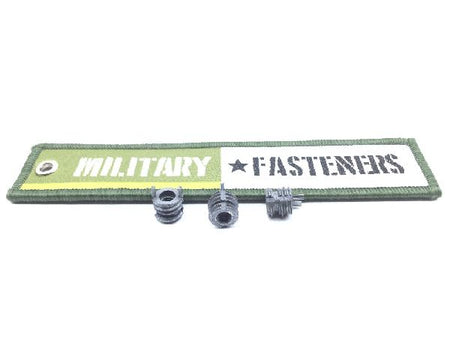

MS51831-201L Screw Thread Insert
MS51831-201L Screw Thread Insert (2)
MS51831-201L Screw Thread Insert (3)
MS51831-201L Screw Thread Insert (4)
MS51831-201L Screw Thread Insert (5)
MS51831-201L Screw Thread Insert (6)
MS51831-201L Screw Thread Insert
MS51831-201L Screw Thread Insert (2)
MS51831-201L Screw Thread Insert (3)
MS51831-201L Screw Thread Insert (4)
MS51831-201L Screw Thread Insert (5)
MS51831-201L Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51831-201L Screw Thread Insert

Product Series
MS
ECCN
EAR99
Schedule
7318.15.9000
Price per Unit $6.58
Units per Pack 10
Price per Pack $65.80
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $65.80
Add item to quote
Material
Steel
Surface Treatment
Qq-p-35 federal specification single treatment response
Thread Class
3b
Thread Size
0.19 inches
Features
Individually keyed
Features Provided
Individually keyed
Full Internal Thread Length
0.242 inches
Insert Size
0.375 in.-16
Internal Thread Relief Depth
0.07 inches
Length
0.312 inches
Material Specification
Fed standard 66 federal standard single material response
Special Features
Has internal thread lock
Style Designator
Keylock
Thread Direction
Right-hand
Thread Length
0.242 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unf (fine thread)
