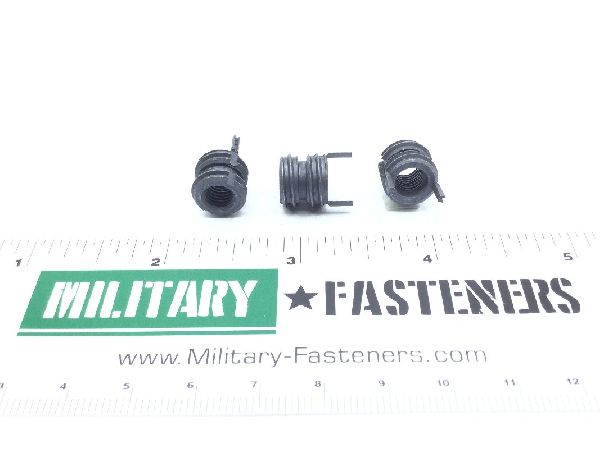

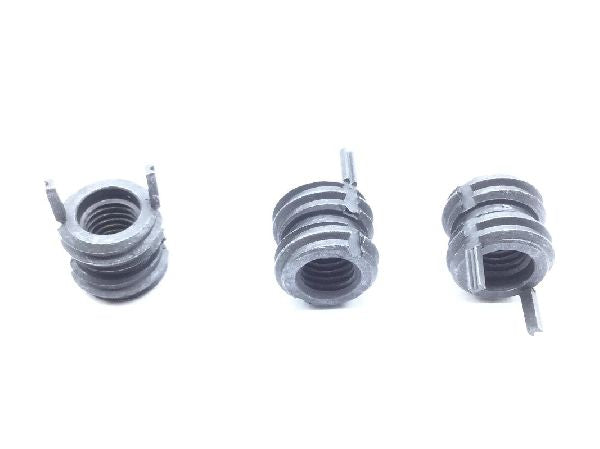

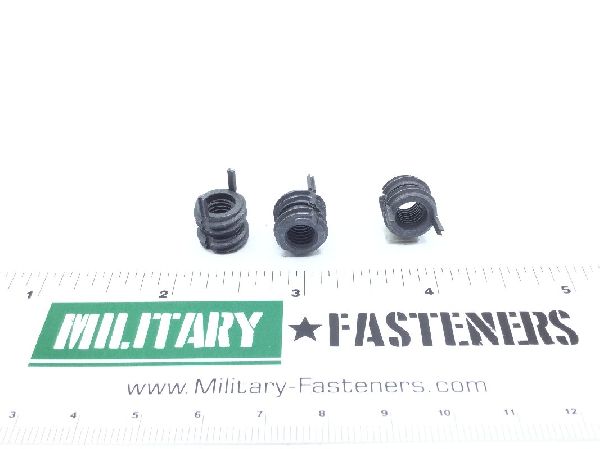

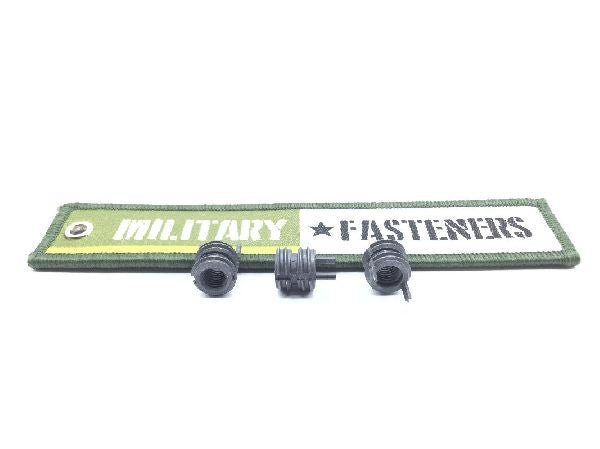

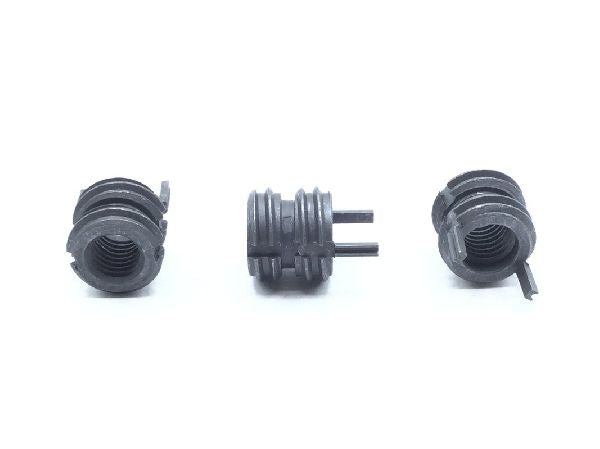

MS51831-202L Screw Thread Insert

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $5.47

Units per Pack 10

Price per Pack $54.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $54.70

Add item to quote

Material

Stainless Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Size

0.250 inches

Features: Individually keyed
Features Provided: Individually keyed
Full Internal Thread Length: 0.305 inches
Insert Size: 0.437 in.-14
Internal Thread Relief Depth: 0.070 inches
Length: 0.375 inches
Material Specification: Ams 5640 comp 303/303e assn standard single material response or stm a582 comp 303/303e assn standard single material response
Special Features: Has internal thread lock
Style Designator: Keylock
Thread Direction: Right-hand
Thread Length: 0.305 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
