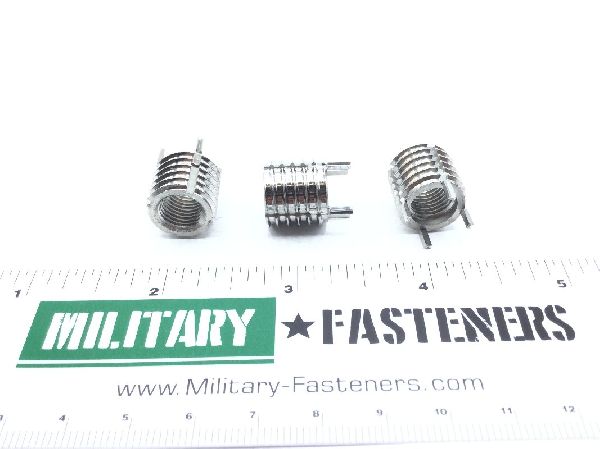

MS51831-204 Screw Thread Insert

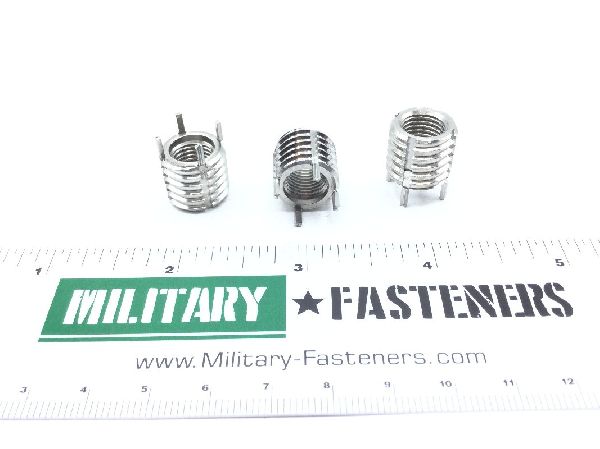

MS51831-204 Screw Thread Insert (2)

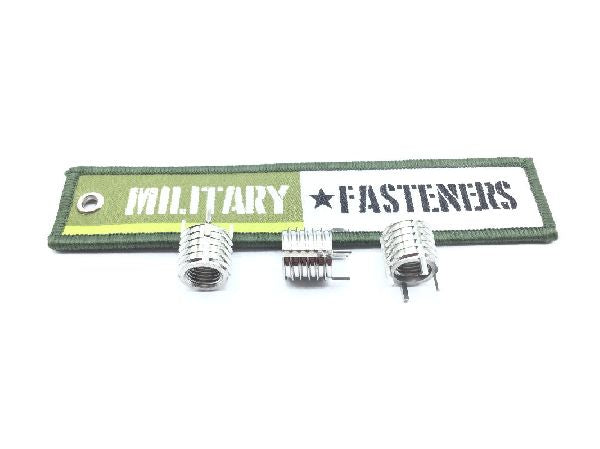

MS51831-204 Screw Thread Insert (3)

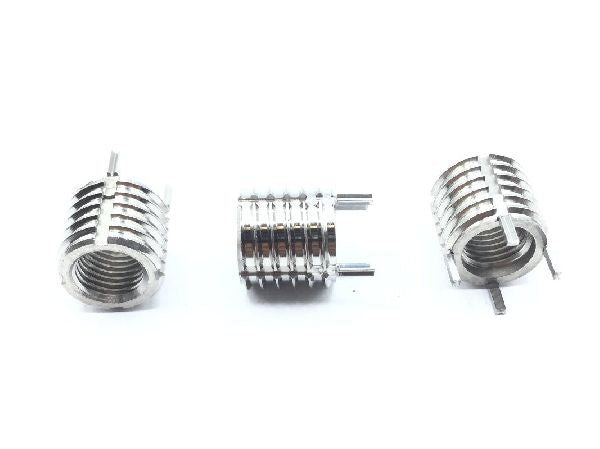

MS51831-204 Screw Thread Insert (4)

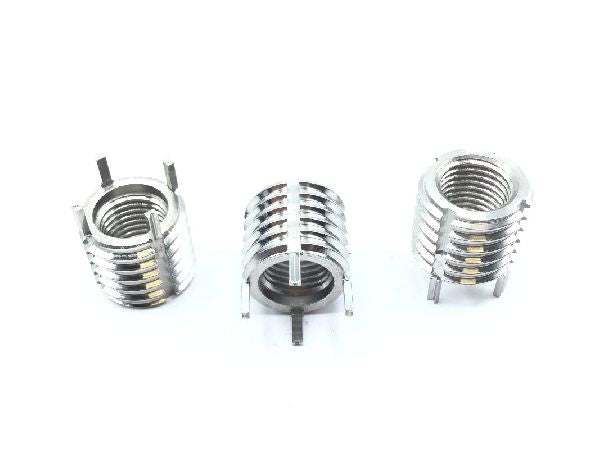

MS51831-204 Screw Thread Insert (5)

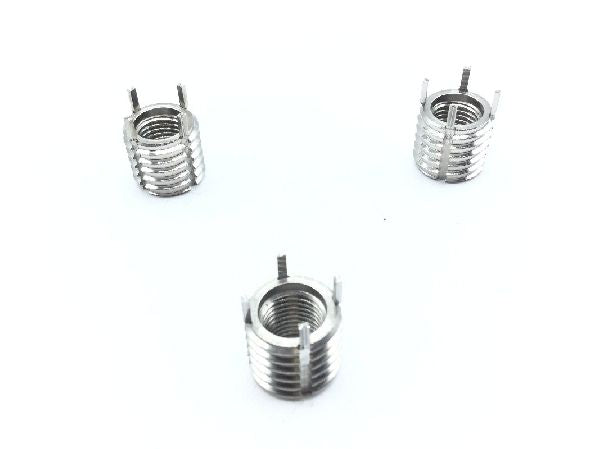

MS51831-204 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51831-204 Screw Thread Insert

Product Series
MS
ECCN
EAR99
Schedule
7318.16.0085
Price per Unit $5.89
Units per Pack 10
Price per Pack $58.90
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $58.90
Add item to quote
Material
Steel comp 302
Surface Treatment
Qq-p-35 federal specification single treatment response
Thread Class
3b
Thread Size
0.375 inches
Full Internal Thread Length
0.430 inches
Insert Size
0.562-12 unc (coarse thread) 2a
Internal Thread Relief Depth
0.070 inches
Length
Between 0.485 inches and 0.515 inches
Material Specification
Fed standard 66 federal standard single material response
Style Designator
Grooved keylock
Thread Direction
Right-hand
Thread Length
Between 0.485 inches and 0.515 inches
Thread Qty Per Inch (tpi)
24
Thread Series Designator
Unf (fine thread)
