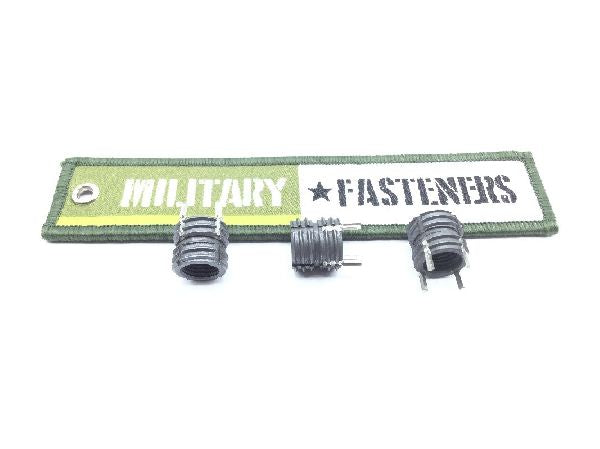

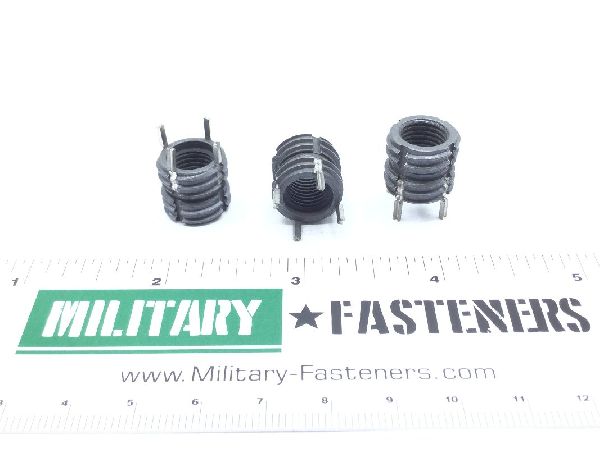

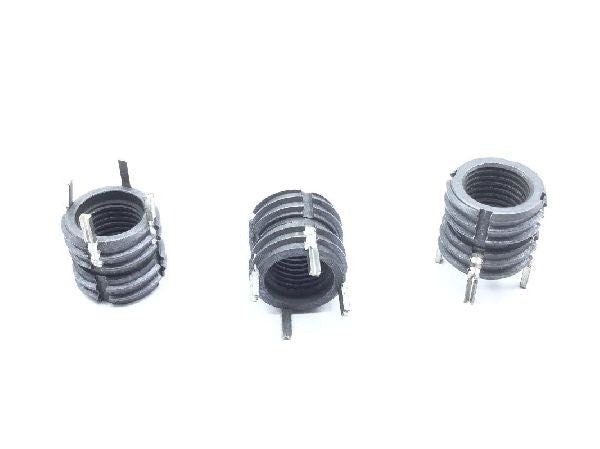

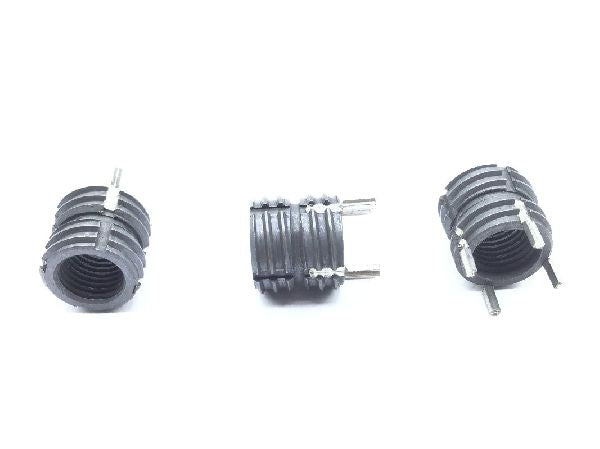

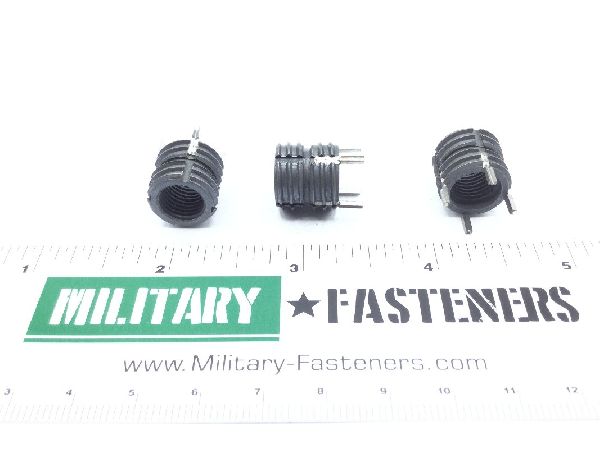

MS51831-204L Screw Thread Insert

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 302

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Size

0.375 inches

Features: Individually keyed
Features Provided: Individually keyed
Full Internal Thread Length: Between 0.405 inches and 0.455 inches
Insert Size: 0.5625-12 unc (coarse thread) 2a
Internal Thread Relief Depth: Between 0.060 inches and 0.080 inches
Length: Between 0.485 inches and 0.515 inches
Material Specification: Fed standard 66 federal standard single material response
Special Features: Has internal thread lock
Style Designator: Grooved keylock
Thread Direction: Right-hand
Thread Length: 0.399 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
