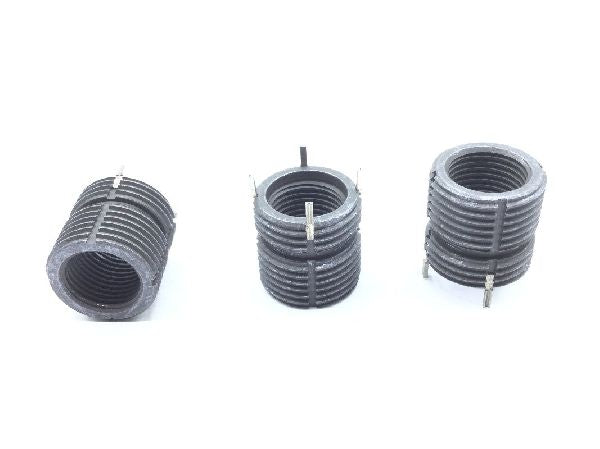

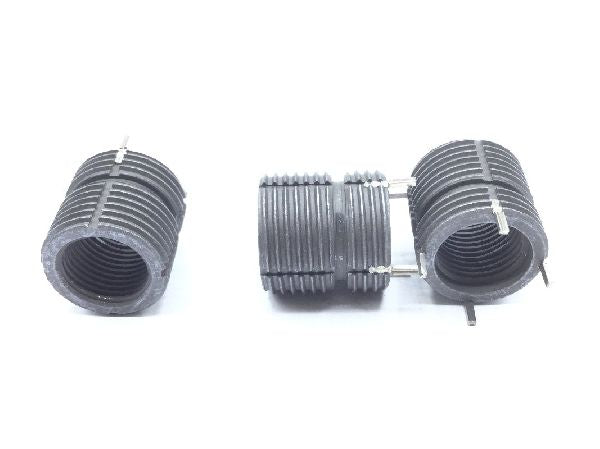

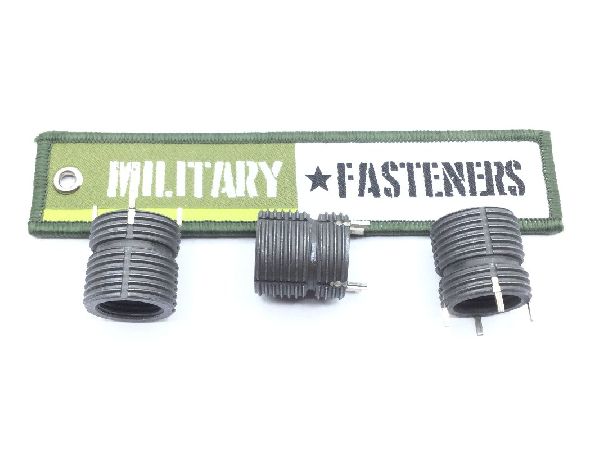

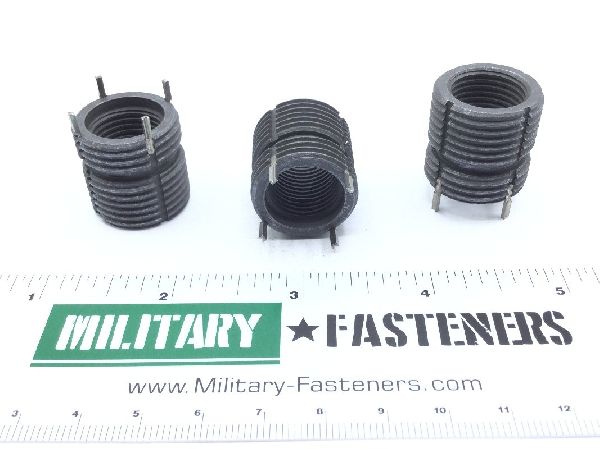

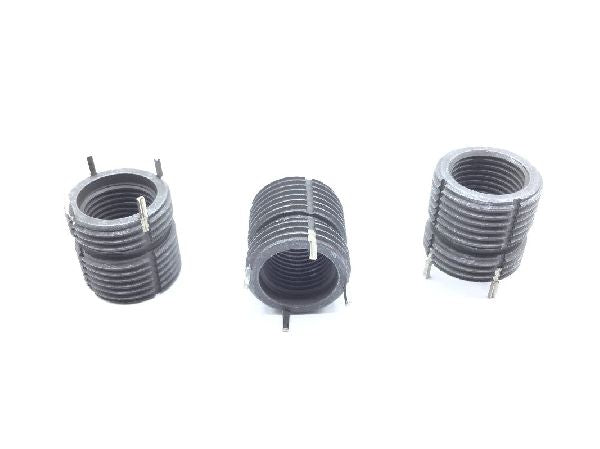

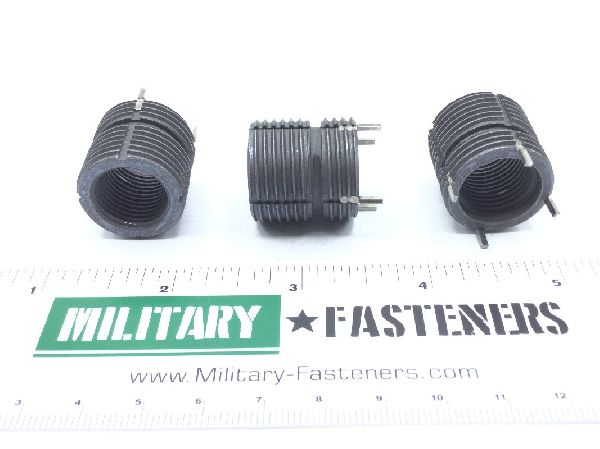

MS51831-208L Screw Thread Insert

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $13.65

Units per Pack 5

Price per Pack $68.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $68.25

Add item to quote

Material

Steel comp 302

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Size

0.625 inches

Features: Individually keyed
Features Provided: Individually keyed
Full Internal Thread Length: Between 0.750 inches and 0.800 inches
Insert Size: 0.875-14 unf (fine thread) 2a
Internal Thread Relief Depth: Between 0.090 inches and 0.110 inches
Length: 0.870 inches
Material Specification: Fed standard 66 federal standard single material response
Special Features: Has internal thread lock feature
Style Designator: Keylock
Thread Direction: Right-hand
Thread Length: 0.775 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unjf (fine thread with external controlled root radius)
