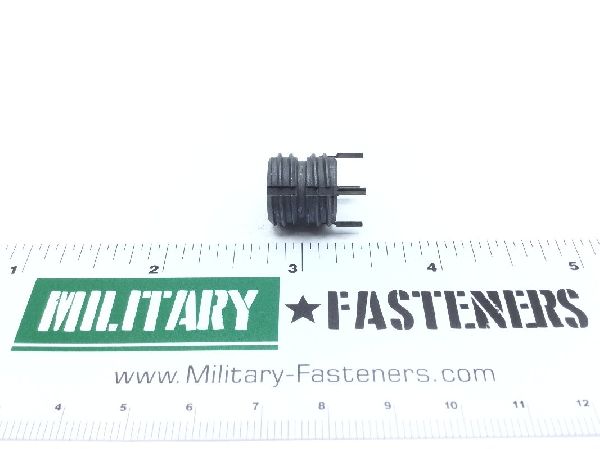

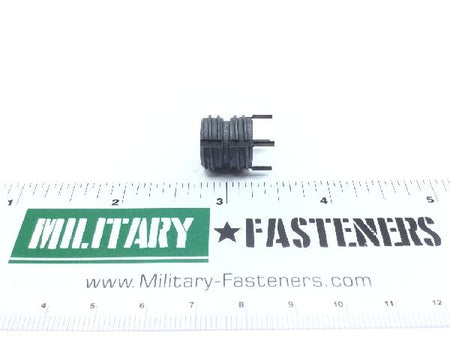

MS51831CA104L Screw Thread Insert

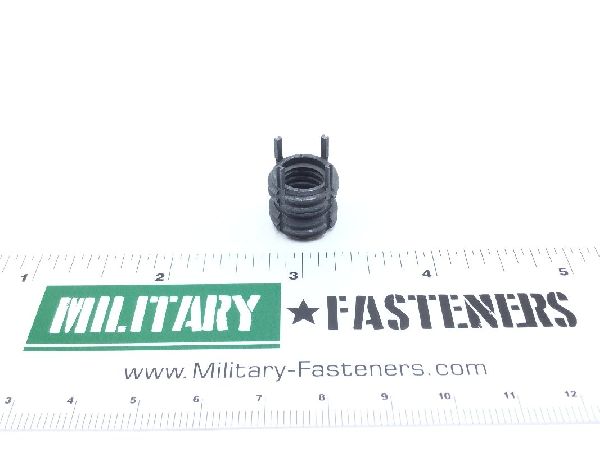

MS51831CA104L Screw Thread Insert (2)

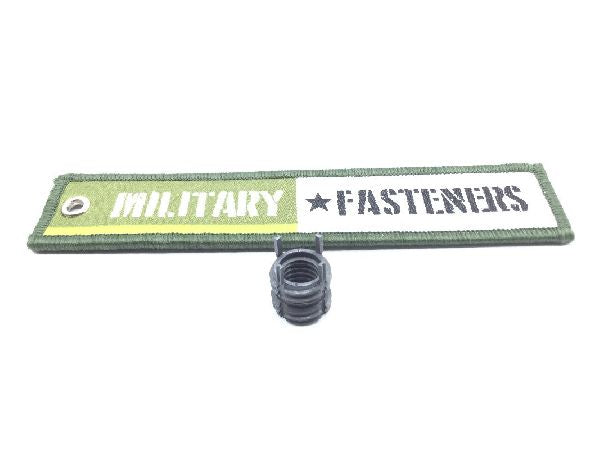

MS51831CA104L Screw Thread Insert (3)
MS51831CA104L Screw Thread Insert (4)

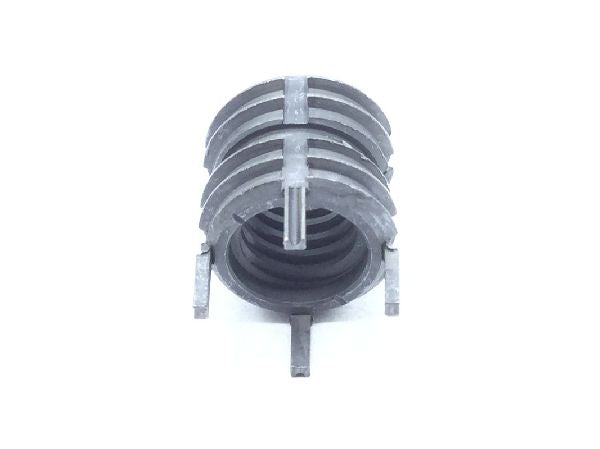

MS51831CA104L Screw Thread Insert (5)
MS51831CA104L Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51831CA104L Screw Thread Insert

Product Series
MS
ECCN
EAR99
Schedule
7318.15.9000
Price per Unit $52.59
Units per Pack 1
Price per Pack $52.59
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:
Total Packs 1
Total Price $52.59
Add item to quote
Material
Iron alloy 660
Surface Treatment
Qq-p-35 federal specification single treatment response
Features
Individually keyed
Features Provided
Individually keyed
Full Internal Thread Length
Between 0.405 inches and 0.455 inches
Insert Size
0.562-12 unc (coarse thread)-2a rh
Internal Thread Relief Depth
Between 0.060 inches and 0.080 inches
Length
Between 0.485 inches and 0.515 inches
Material Specification
Ams 5371 assn standard single material response
Style Designator
Grooved keylock
