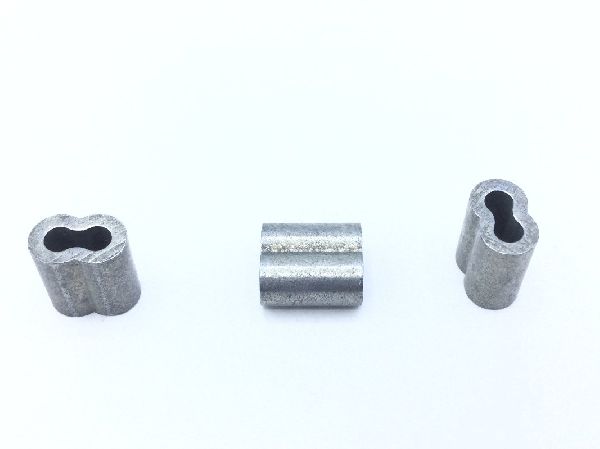

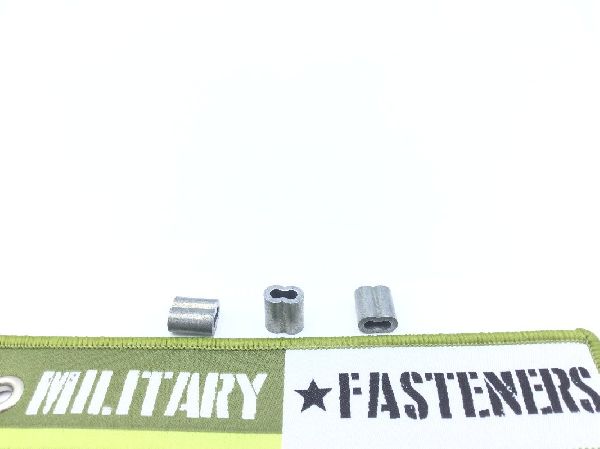

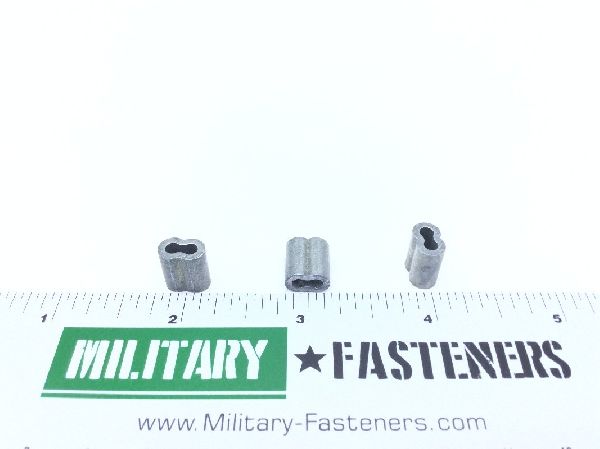

MS51844-23 Wire Rope Swaging Sleeve

Product Series: MS
ECCN: EAR99
Schedule: 8544.49.9000

Price per Unit $0.77

Units per Pack 50

Price per Pack $38.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $38.50

Add item to quote

Material

Copper alloy 102 or copper alloy 103 or copper alloy 122

Overall Length

0.440 inches

Surface Treatment

type 2 cl 3 federal specification 1st treatment response or qq-n-290 federal specification 2nd treatment response qq-z-325

Accommodated Material Diameter: 0.094 inches
Material Specification: Astm b75 assn standard all material responses
Overall Height: 0.380 inches
Overall Width: 0.240 inches
Safe Operating Load Rating: 1000.000 pounds
Style Designator: Figure 8
