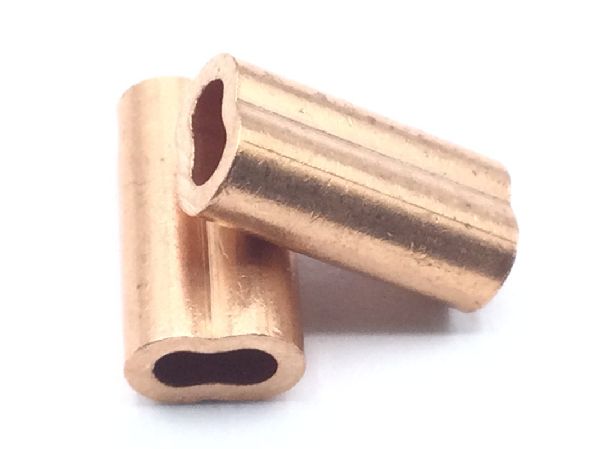

MS51844-41 Wire Rope Swaging Sleeve

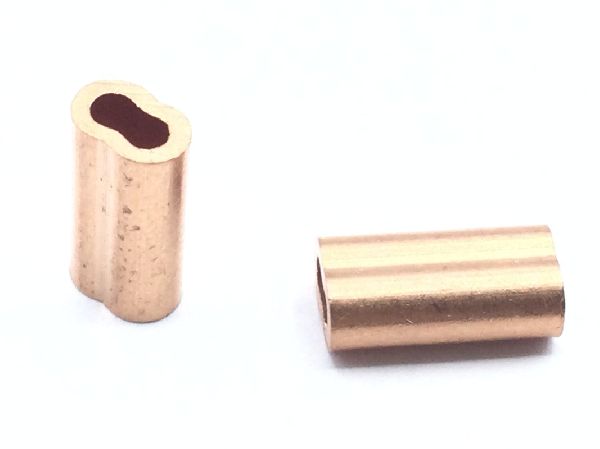

MS51844-41 Wire Rope Swaging Sleeve (2)

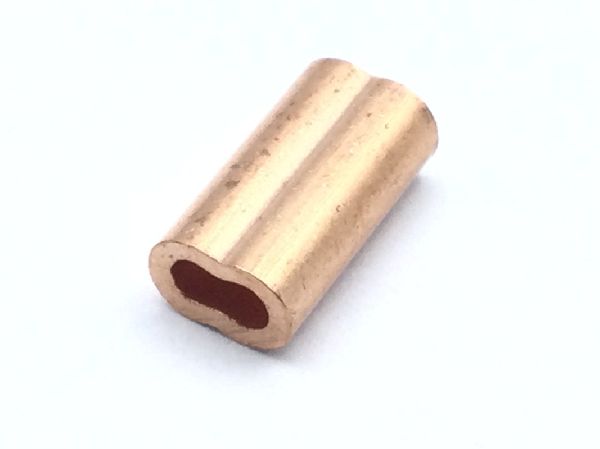

MS51844-41 Wire Rope Swaging Sleeve (3)

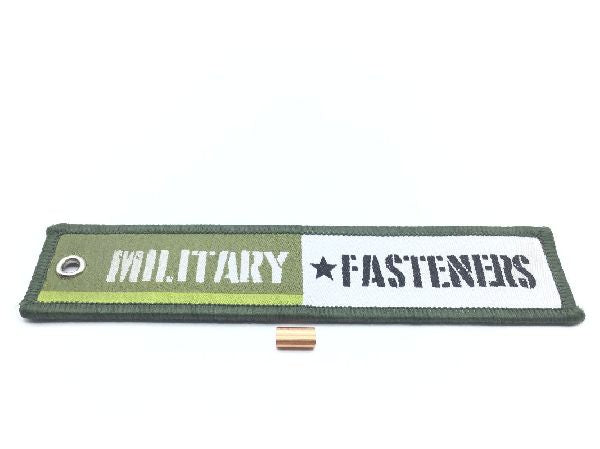

MS51844-41 Wire Rope Swaging Sleeve (4)

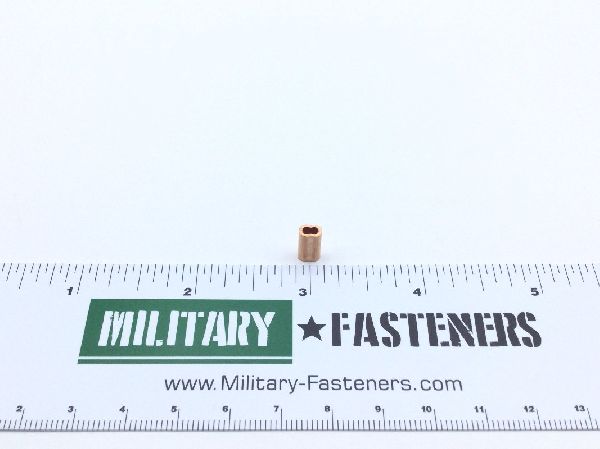

MS51844-41 Wire Rope Swaging Sleeve (5)

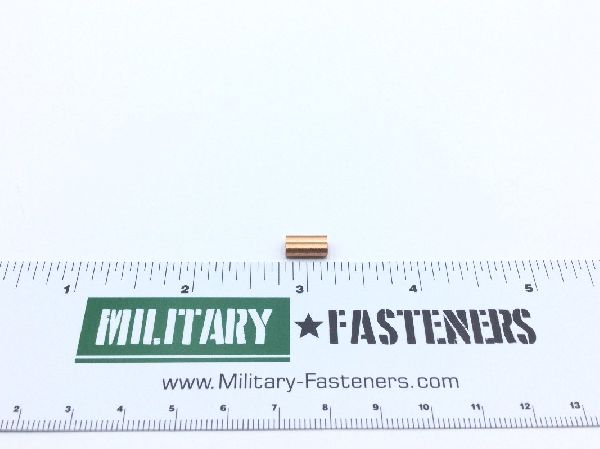

MS51844-41 Wire Rope Swaging Sleeve (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51844-41 Wire Rope Swaging Sleeve

Product Series: MS
ECCN: EAR99
Schedule: 8544.49.9000

Price per Unit $0.82

Units per Pack 50

Price per Pack $41.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $41.00

Add item to quote

Material

Copper alloy 102 or copper alloy 103 or copper alloy 122

Overall Length

0.440 inches

Accommodated Material Diameter: 0.0468 inches
End Application: B-2 bomber
Material Specification: Astm-b75 assn standard single material response
Overall Height: 0.206 inches
Overall Width: 0.140 inches
Part Name Assigned By Controlling Agency: Swaging-wire rope sleeve
Specification Data: 96906-ms51844e government specification
Style Designator: Figure 8
