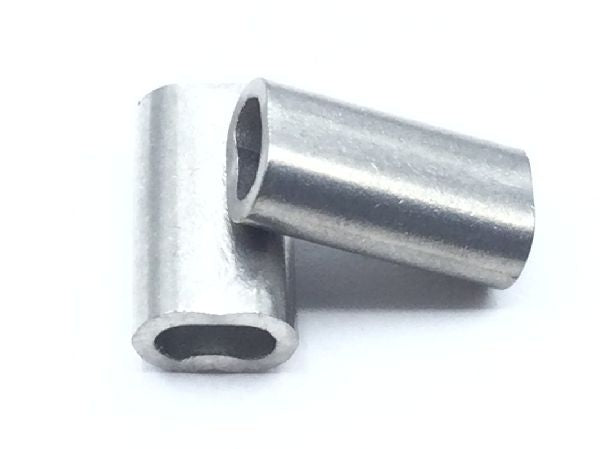

MS51844-62 Wire Rope Swaging Sleeves (2)

MS51844-62 Wire Rope Swaging Sleeves (3)

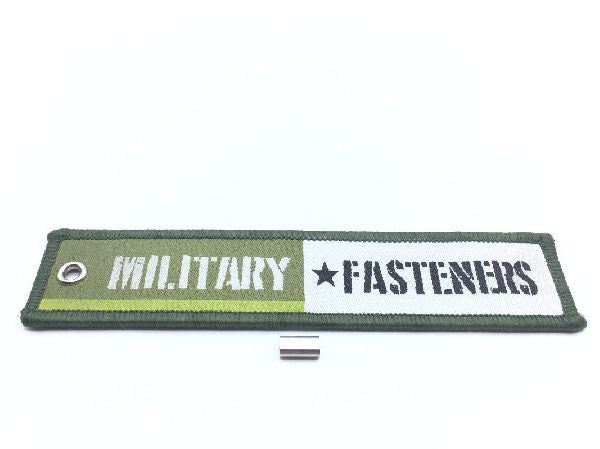

MS51844-62 Wire Rope Swaging Sleeves (4)

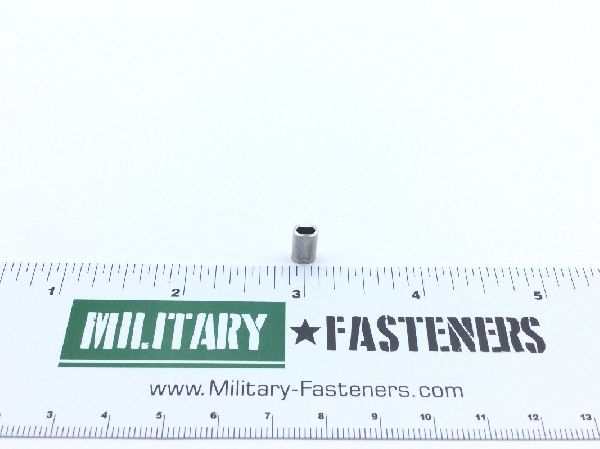

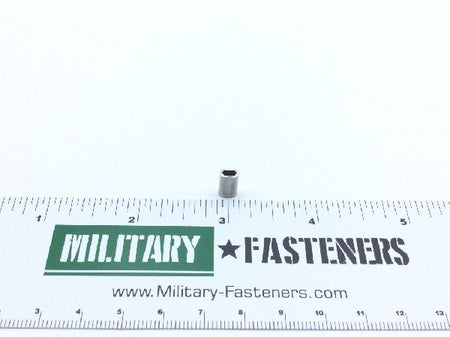

MS51844-62 Wire Rope Swaging Sleeves (5)

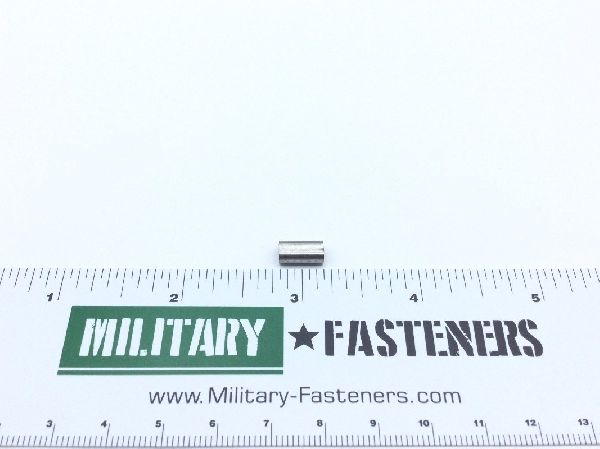

MS51844-62 Wire Rope Swaging Sleeves (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51844-62 Wire Rope Swaging Sleeves

Product Series: MS
ECCN: EAR99
Schedule: 8544.49.9000

Price per Unit $2.56

Units per Pack 20

Price per Pack $51.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $51.20

Add item to quote

Material

Steel comp 304 or steel comp 305

Overall Length

0.440 inches

Surface Treatment

Astm a380 assn standard single treatment response

Accommodated Material Diameter: 0.062 inches
Material Specification: Astm a249 assn standard all material responses or astm a269 assn standard 1st material response or astm a511 assn standard 2nd material response
Overall Height: 0.236 inches
Overall Width: 0.143 inches
Safe Operating Load Rating: 480.000 pounds
Style Designator: Figure 8
