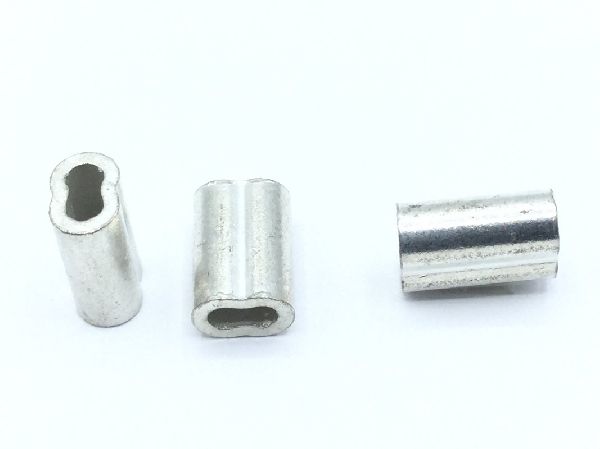

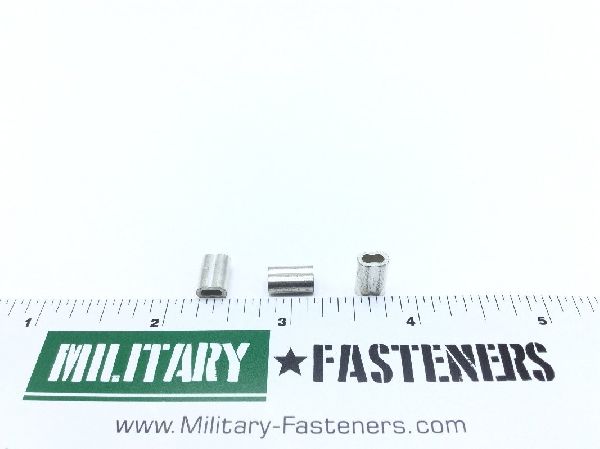

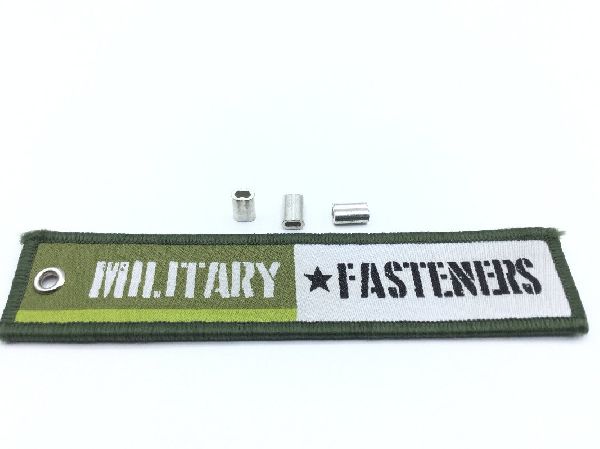

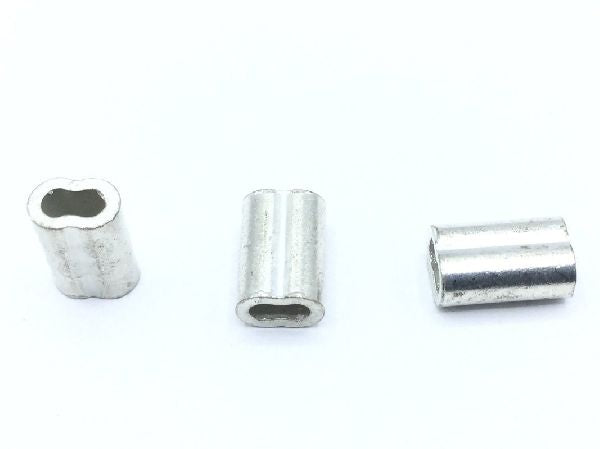

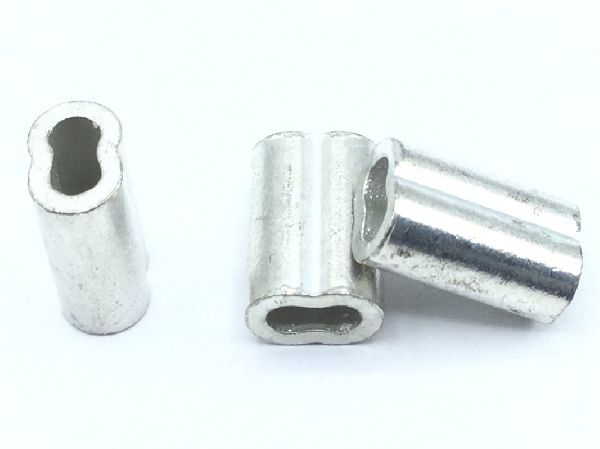

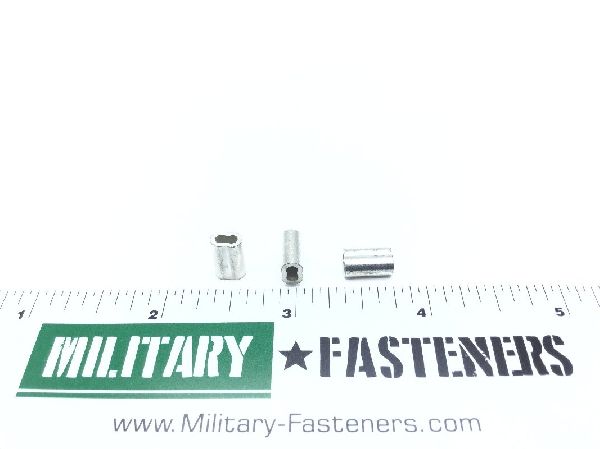

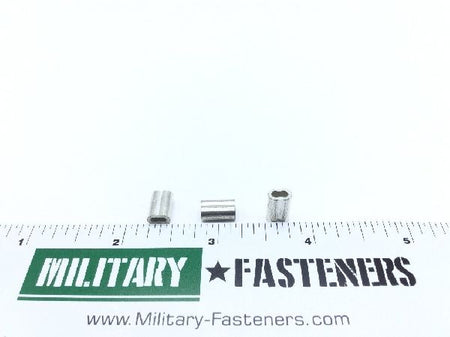

MS51844-82 Wire Rope Swaging Sleeve
MS51844-82 Wire Rope Swaging Sleeve (2)
MS51844-82 Wire Rope Swaging Sleeve (3)
MS51844-82 Wire Rope Swaging Sleeve (4)
MS51844-82 Wire Rope Swaging Sleeve (5)
MS51844-82 Wire Rope Swaging Sleeve (6)
MS51844-82 Wire Rope Swaging Sleeve
MS51844-82 Wire Rope Swaging Sleeve (2)
MS51844-82 Wire Rope Swaging Sleeve (3)
MS51844-82 Wire Rope Swaging Sleeve (4)
MS51844-82 Wire Rope Swaging Sleeve (5)
MS51844-82 Wire Rope Swaging Sleeve (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51844-82 Wire Rope Swaging Sleeve

NSN
4030-01-124-8201
Product Series
MS
ECCN
EAR99
Schedule
8544.49.9000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Copper alloy 102 or copper alloy 103 or copper alloy 122
Overall Length
0.375 inches
Surface Treatment
Mil-t-10727 type 1 military specification single treatment response
Accommodated Material Diameter
0.062 inches
Material Specification
Astm b75 assn standard all material responses
Overall Height
Between 0.240 inches and 0.260 inches
Overall Width
Between 0.160 inches and 0.180 inches
Style Designator
Figure 8
