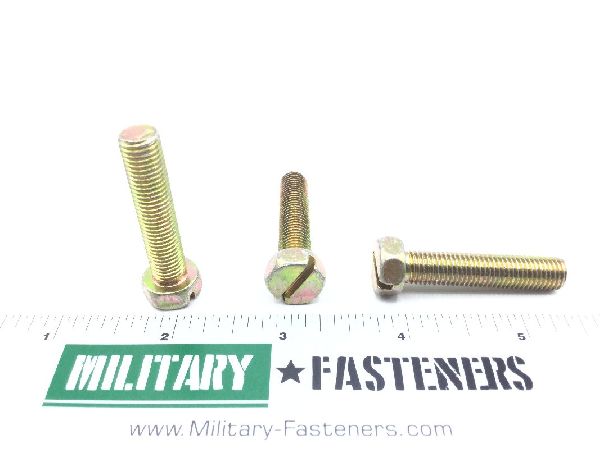

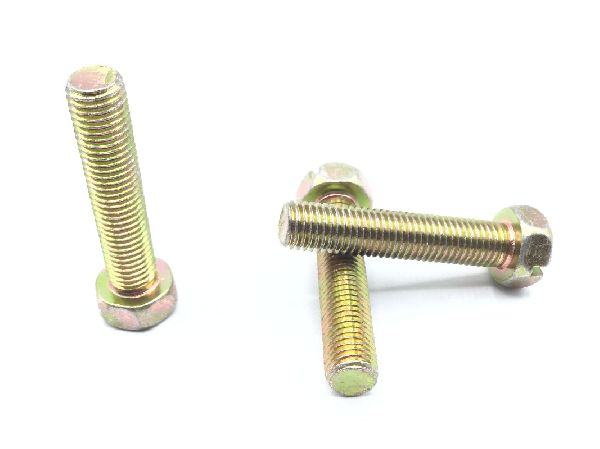

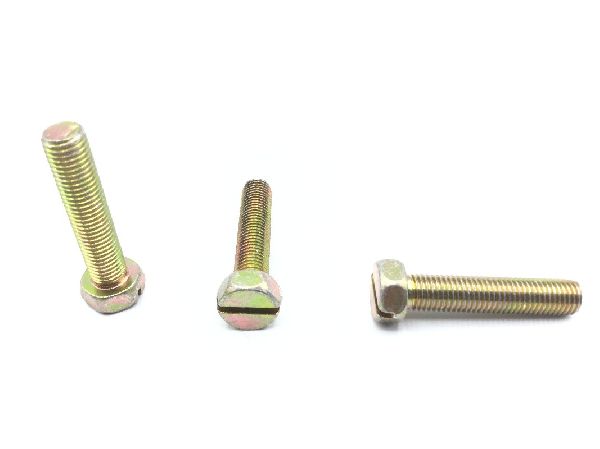

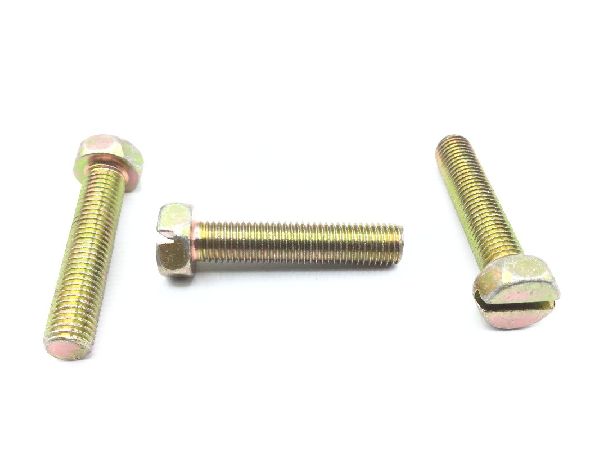

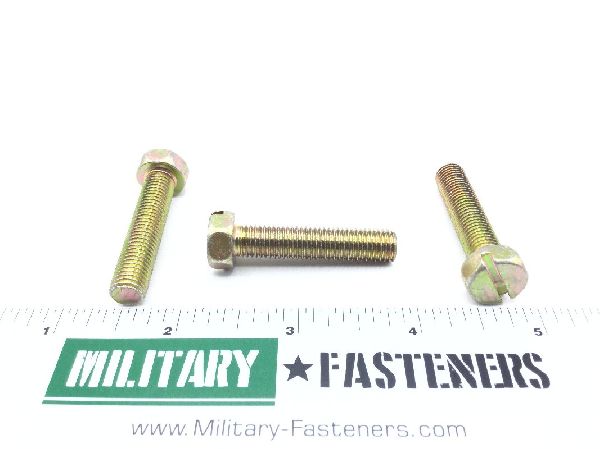

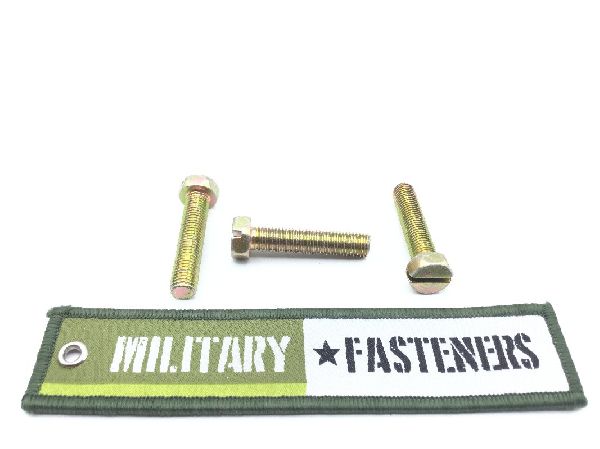

MS51849-110 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $3.60

Units per Pack 10

Price per Pack $36.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $36.00

Add item to quote

Head Style

Hexagon

Thread Class

Fastener Length: Between 1.440 inches and 1.500 inches
Head Height: Between 0.208 inches and 0.230 inches
Internal Drive Style: Slot
Min. Tensile Strength (psi): 60000 pounds per square inch
Nondefinitive Specification/std Data: 1 type and 10s style
Screw Material: Steel
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Cl 3 military specification single treatment response cl 3 federal specification single treatment response or mil-c-81562 type 2 type 2 qq-p-416
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 1.357 inches and 1.500 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.489 inches and 0.500 inches
