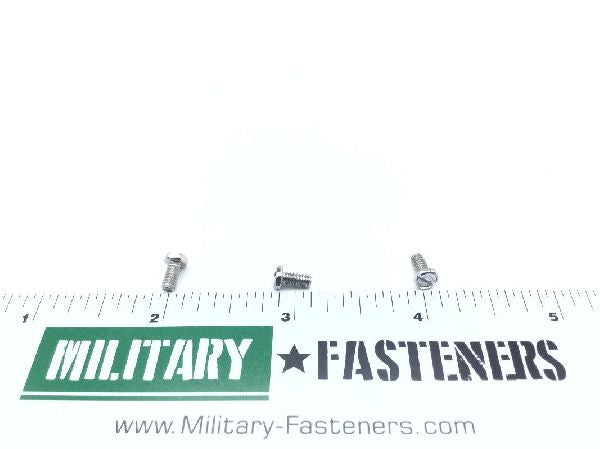

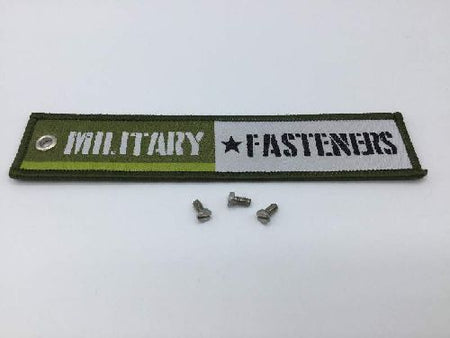

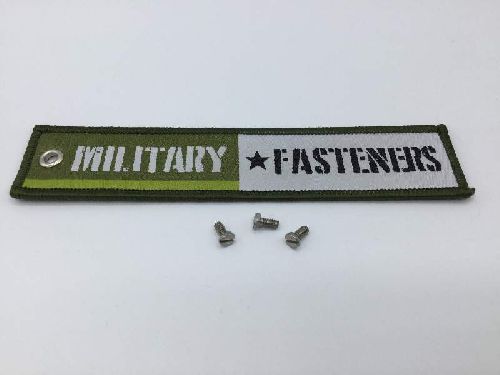

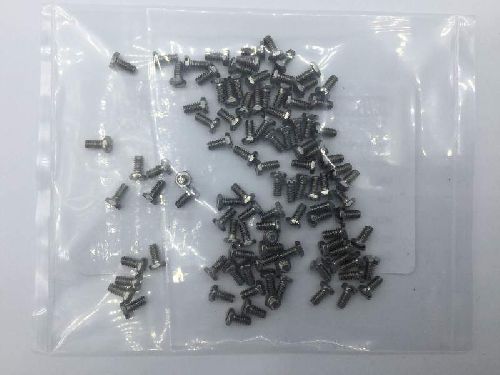

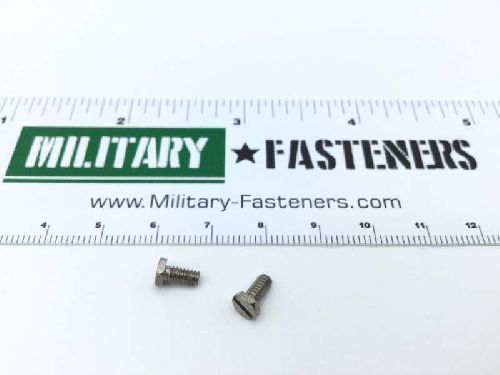

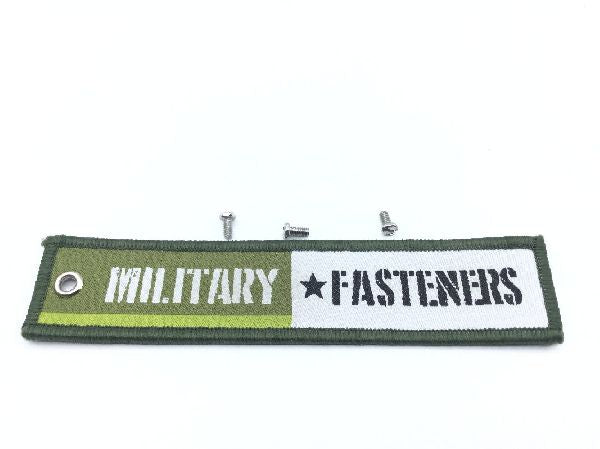

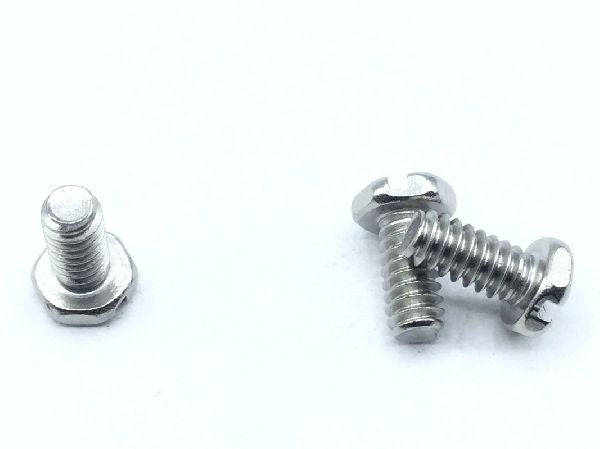

MS51849-11C Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.69

Units per Pack 100

Price per Pack $69.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $69.00

Add item to quote

Head Style

Hexagon

Thread Class

Fastener Length: Between 0.220 inches and 0.250 inches
Head Height: Between 0.049 inches and 0.060 inches
Internal Drive Style: Slot
Min. Tensile Strength (psi): 80000 pounds per square inch
Screw Material: Steel comp 302 or steel comp 303 or steel comp 303se or steel comp 304 or steel comp 304l or steel comp 305 or steel comp 309 or steel comp 310 or steel comp 316 or steel comp 316l or steel comp 317 or steel comp 321 or steel comp 347
Screw Material Specification: Qq-s-763 federal specification all material responses or fed-std66 federal standard all material responses
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Astm a380 assn standard single treatment response
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: 0.250 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.181 inches and 0.187 inches
