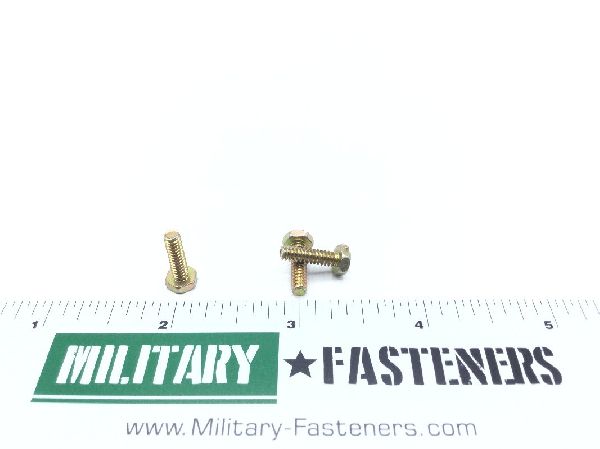

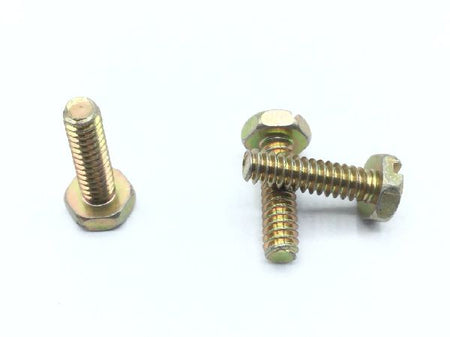

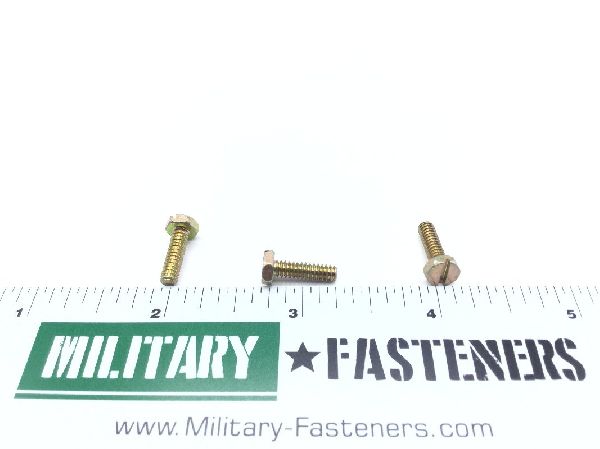

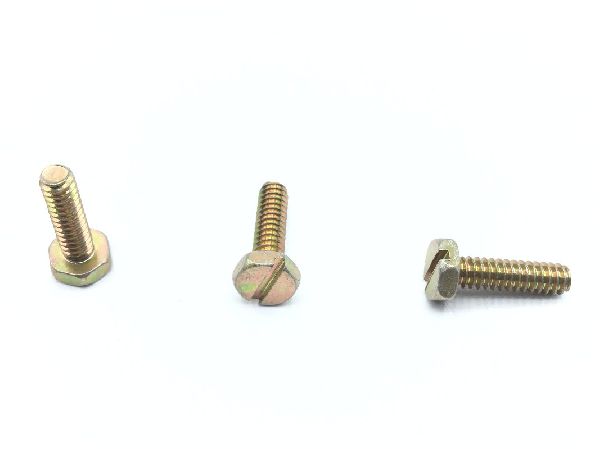

MS51849-34 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.77

Units per Pack 50

Price per Pack $38.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $38.50

Add item to quote

Head Style

Hexagon

Thread Class

Fastener Length: Between 0.470 inches and 0.500 inches
Head Height: Between 0.080 inches and 0.093 inches
Internal Drive Style: Slot
Min. Tensile Strength (psi): 60000 pounds per square inch
Nondefinitive Specification/std Data: 1 type and 10s style
Screw Material: Steel
Screw Material Specification: Qq-s-634 federal specification single material response or qq-s-637 federal specification single material response or 66 federal standard single material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Qq-p-416 federal specification single treatment response
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.408 inches and 0.500 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.244 inches and 0.250 inches
