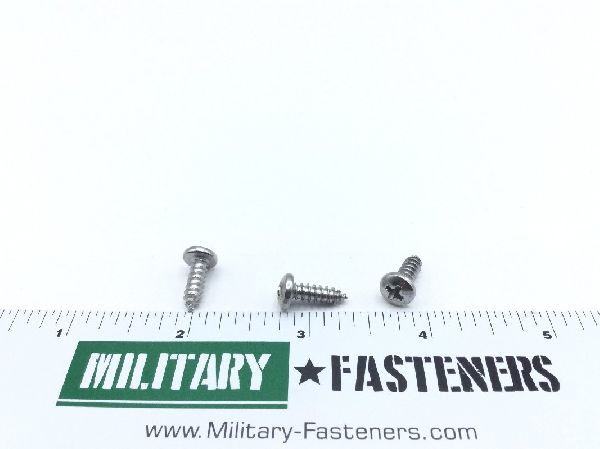

MS51861-35C Tapping Screw

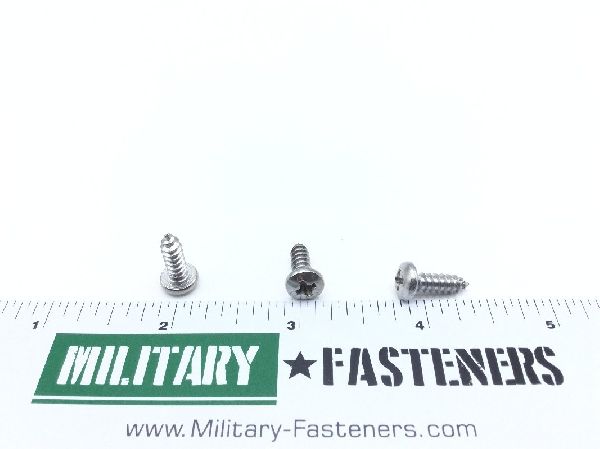

MS51861-35C Tapping Screw (2)

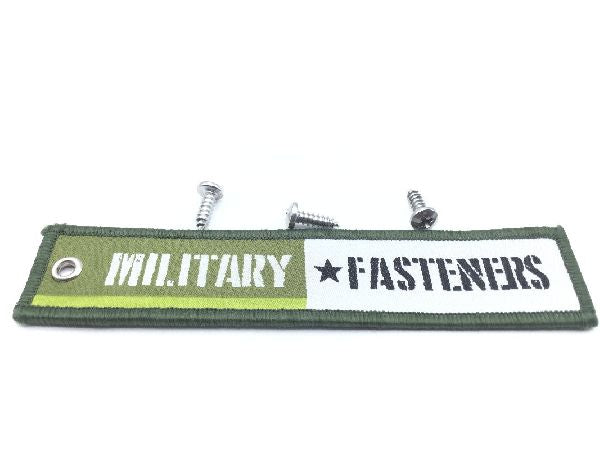

MS51861-35C Tapping Screw (3)

MS51861-35C Tapping Screw (4)

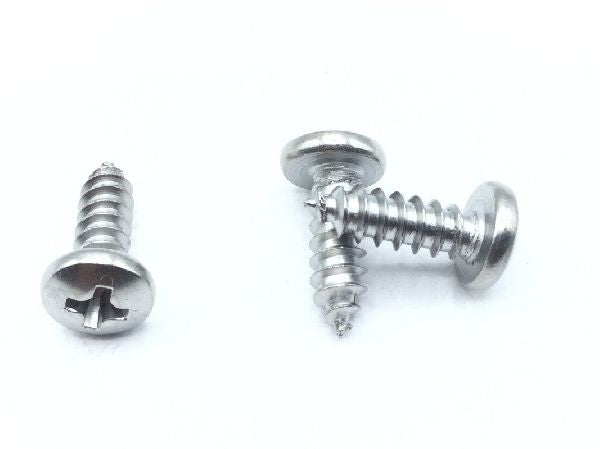

MS51861-35C Tapping Screw (5)

MS51861-35C Tapping Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51861-35C Tapping Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.42

Units per Pack 100

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Head Style

Pan

Material

Steel comp 410

Surface Treatment

Qq-p-35 federal specification single treatment response

Fastener Length: Between 0.469 inches and 0.531 inches
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Cross recess type 1
Material Specification: 66 federal standard single material response
Nondefinitive Specification/std Data: Ab type
Nonmachine Thread Diameter: 0.164 inches
Nonmachine Thread Style: ab or ba) gimlet point (type a
Head Diameter: Between 0.306 inches and 0.322 inches
