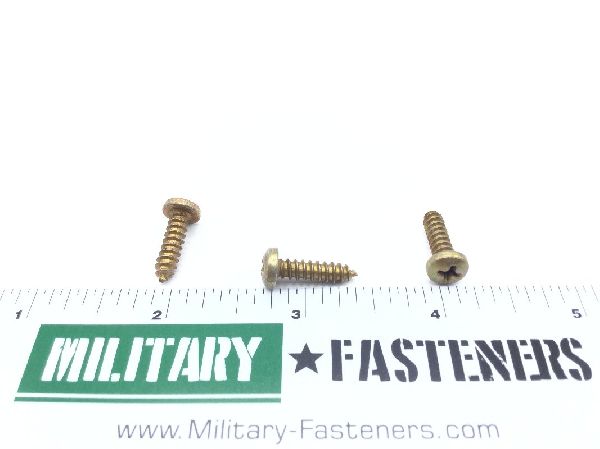

MS51861-36 Tapping Screw

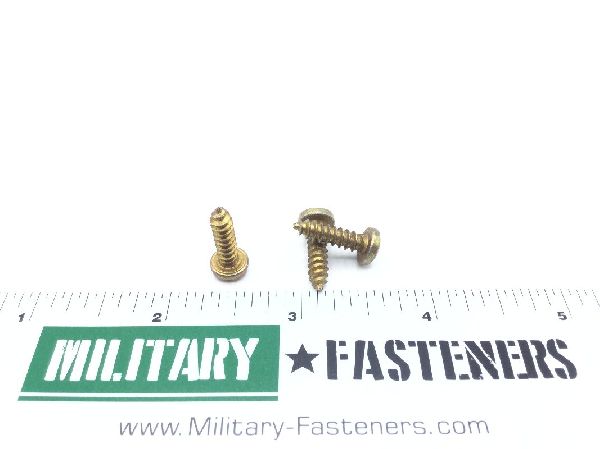

MS51861-36 Tapping Screw (2)

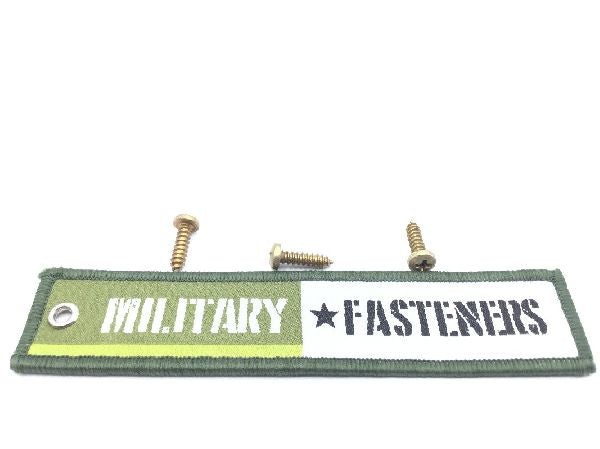

MS51861-36 Tapping Screw (3)
MS51861-36 Tapping Screw (4)

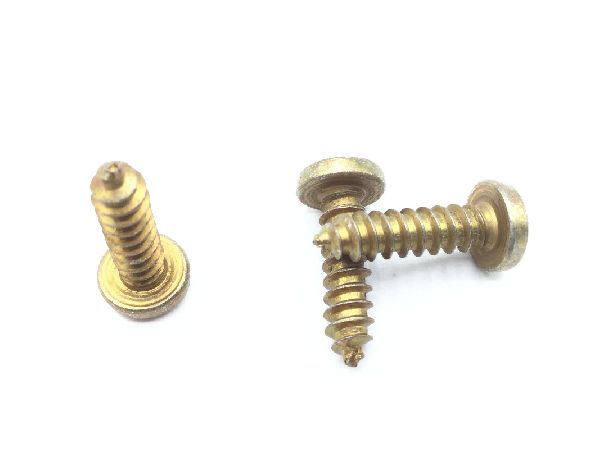

MS51861-36 Tapping Screw (5)

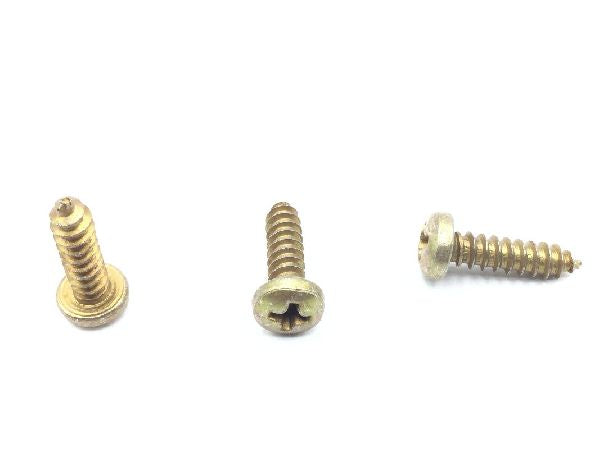

MS51861-36 Tapping Screw (6)
MS51861-36 Tapping Screw
MS51861-36 Tapping Screw (2)
MS51861-36 Tapping Screw (3)
MS51861-36 Tapping Screw (4)
MS51861-36 Tapping Screw (5)
MS51861-36 Tapping Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51861-36 Tapping Screw

Product Series
MS
ECCN
EAR99
Schedule
7318.15.9000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Pan
Material
Steel
Surface Treatment
Class 3 federal specification single treatment response type 2 qq-p-416
Fastener Length
Between 0.594 inches and 0.656 inches
Features
Casehardened
Features Provided
Casehardened
Head Height
Between 0.105 inches and 0.115 inches
Internal Drive Style
Cross recess type 1
Nondefinitive Specification/std Data
Ab type
Nonmachine Thread Diameter
0.164 inches
Nonmachine Thread Style
ab or ba) gimlet point (type a
Head Diameter
Between 0.306 inches and 0.322 inches
