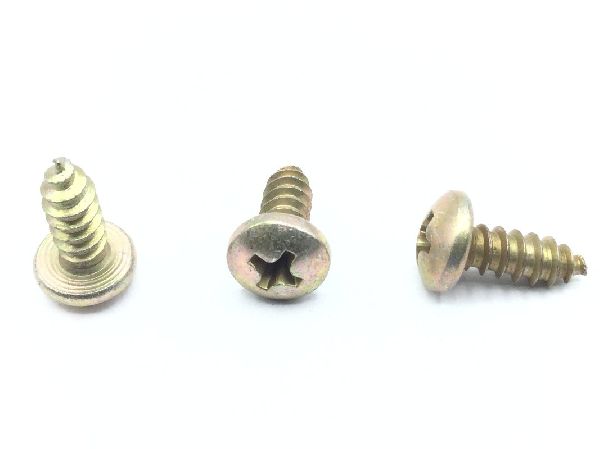

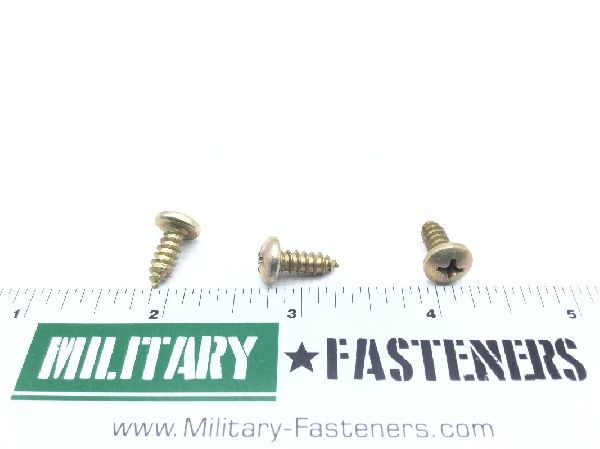

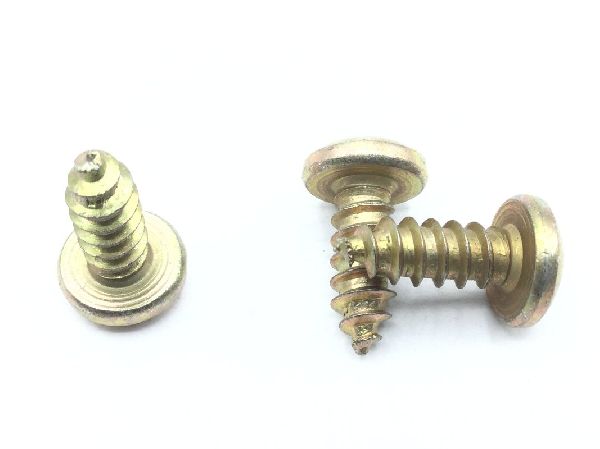

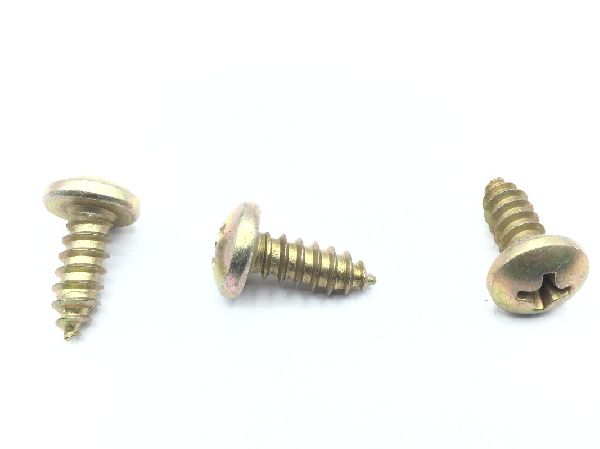

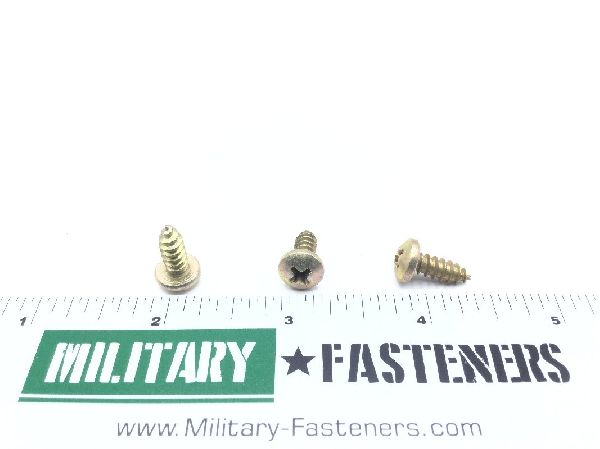

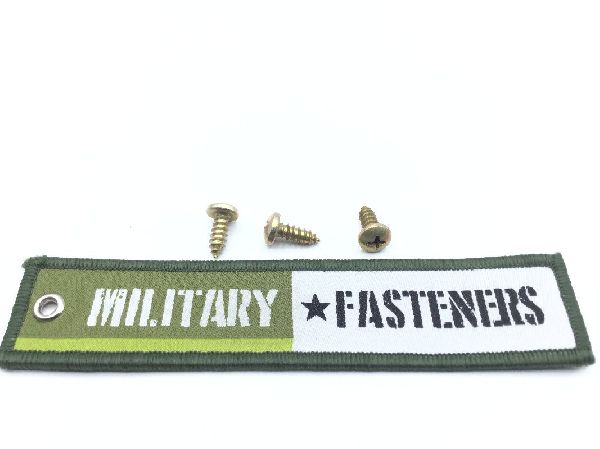

MS51861-45 Tapping Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.30

Units per Pack 100

Price per Pack $30.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $30.00

Add item to quote

Head Style

Pan

Material

Steel comp

Surface Treatment

Astm b633 type 2 cl fe/zn 13 assn standard single treatment response

Departure From Cited Document: As differentiated by surface
Fastener Length: Between 0.469 inches and 0.531 inches
Features: Casehardened
Features Provided: Casehardened
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Material Specification: Aisi assn standard single material response
Nondefinitive Specification/std Data: Ab type
Nonmachine Thread Diameter: 0.190 inches
Nonmachine Thread Style: Ab or ba gimlet point
Head Diameter: Between 0.357 inches and 0.373 inches
