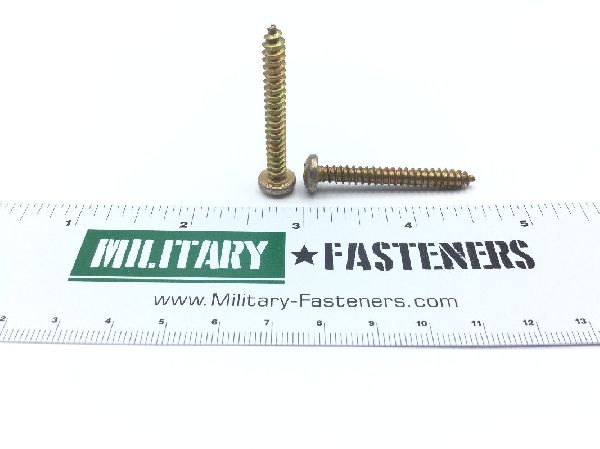

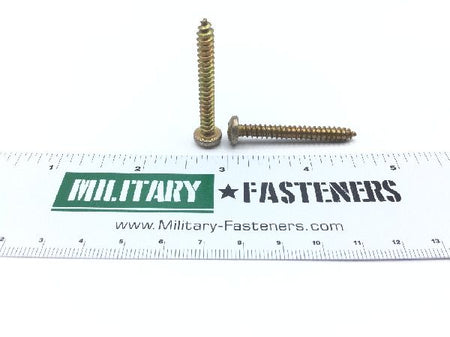

MS51861-51 Machine Screw

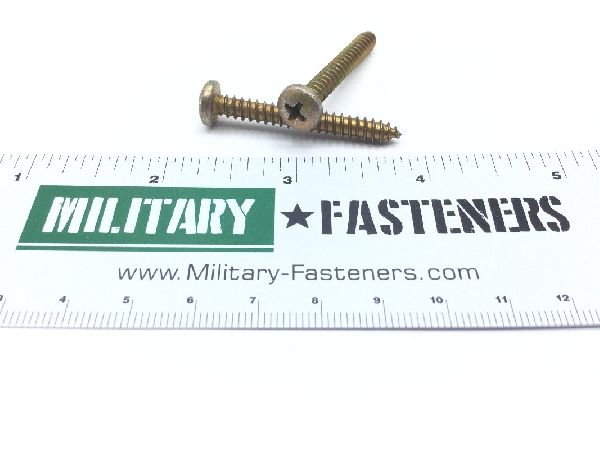

MS51861-51 Machine Screw (2)

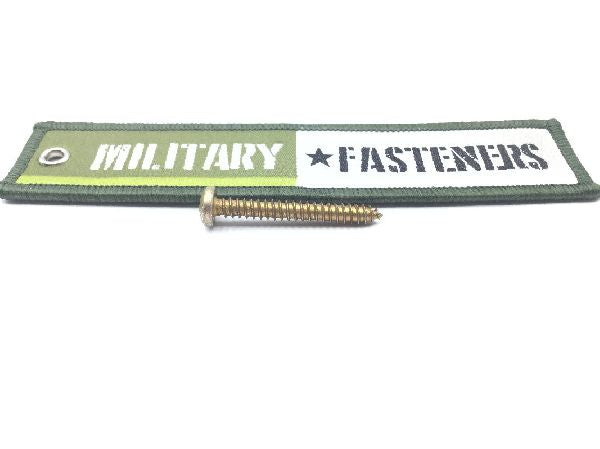

MS51861-51 Machine Screw (3)

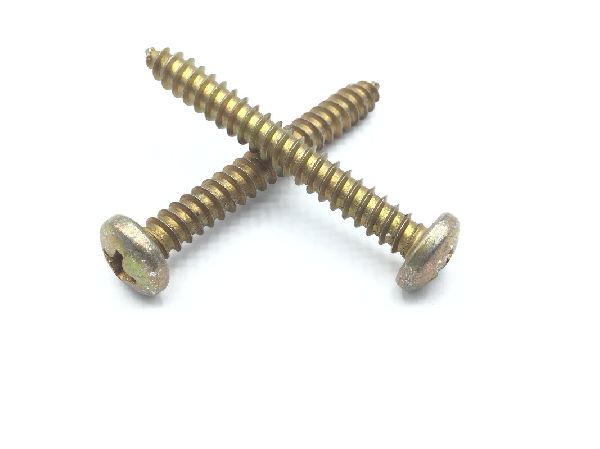

MS51861-51 Machine Screw (4)

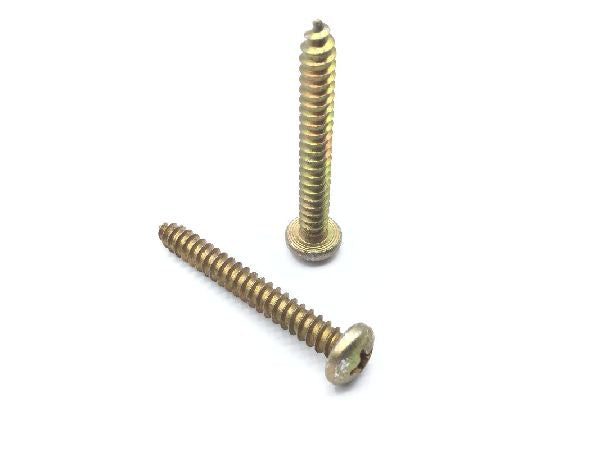

MS51861-51 Machine Screw (5)

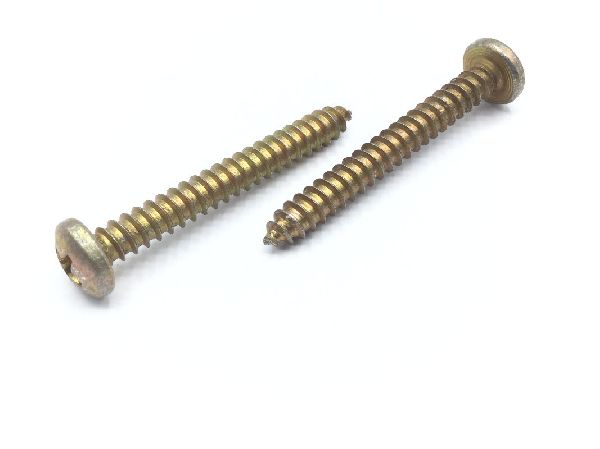

MS51861-51 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51861-51 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.39

Units per Pack 100

Price per Pack $39.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $39.00

Add item to quote

Head Style

Pan

Material

Steel

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Fastener Length: Between 1.453 inches and 1.547 inches
Features: Casehardened
Features Provided: Casehardened
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Nondefinitive Specification/std Data: Ab type
Nonmachine Thread Diameter: 0.190 inches
Nonmachine Thread Style: ab or ba) gimlet point (type a
Head Diameter: Between 0.357 inches and 0.373 inches
