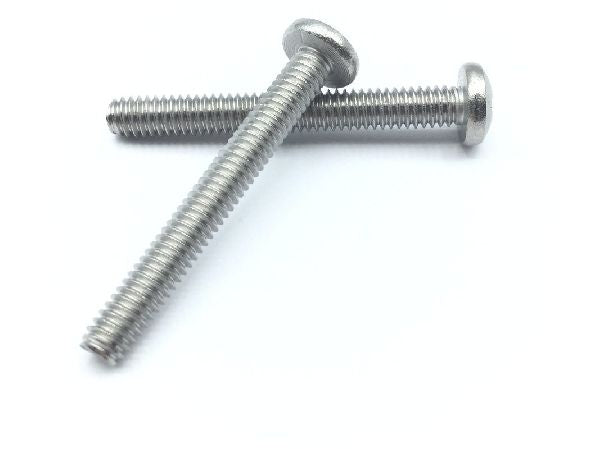

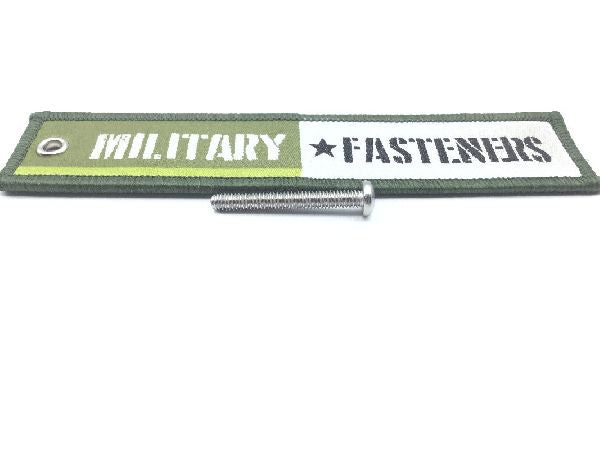

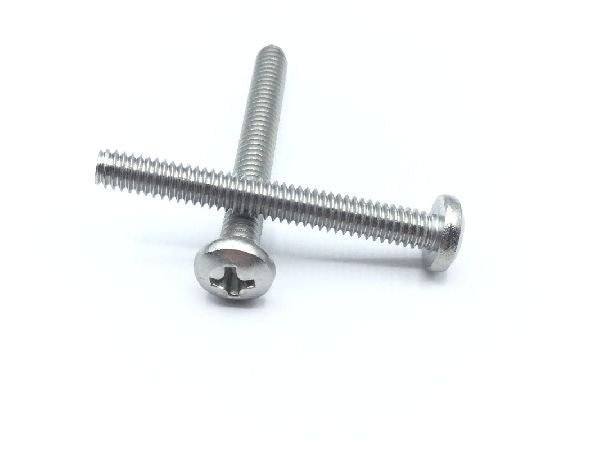

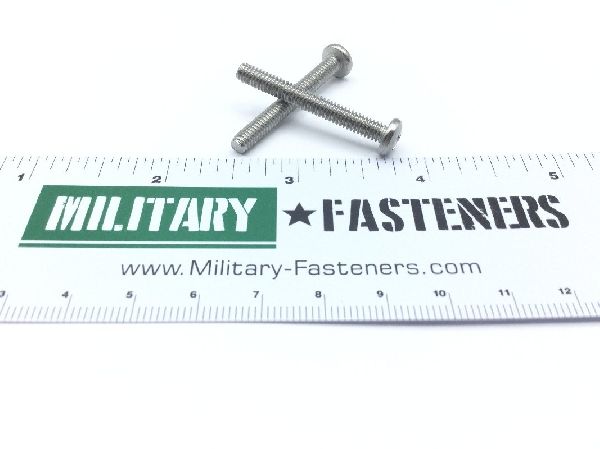

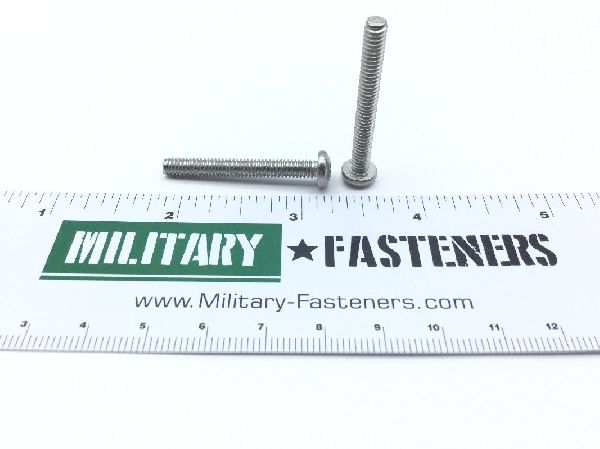

MS51957-128 Machine Screw
- Product Series
- MS
- ECCN
- EAR99
- Schedule
- 7318.15.2091
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Fastener Length
- Between 1.313 inches and 1.375 inches
- Head Height
- Between 0.105 inches and 0.115 inches
- Internal Drive Style
- Cross recess type 1
- Min. Tensile Strength (psi)
- 80000 pounds per square inch
- Nondefinitive Specification/std Data
- 3 type or 9c style
- Screw Material
- Stainless Steel
- Screw Material Specification
- Astm a582 assn standard 1st material response or federal standard no. 66 federal standard 2nd material response or 16-18 assn standard 3rd material response or 18-8 assn standard 4th material response
- Screw Surface Treatment
- Passivate
- Screw Surface Treatment Specification
- Qq-p-35 federal specification single treatment response
- Thread Diameter
- 0.164 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 1.251 inches and 1.375 inches
- Thread Qty Per Inch (tpi)
- 32
- Thread Series Designator
- Unc (coarse thread)
- Head Diameter
- Between 0.306 inches and 0.322 inches
