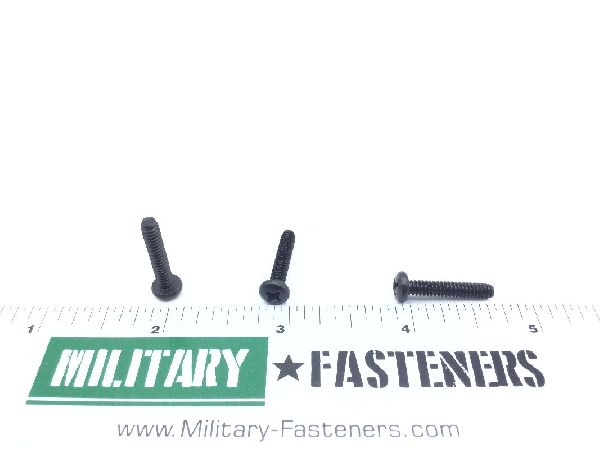

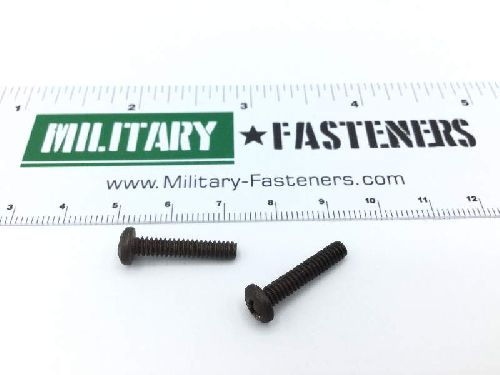

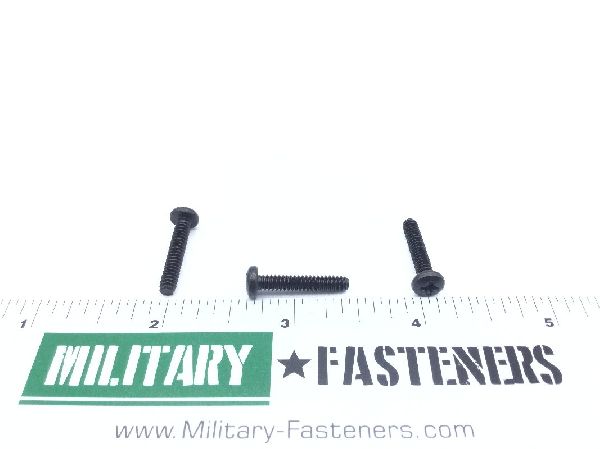

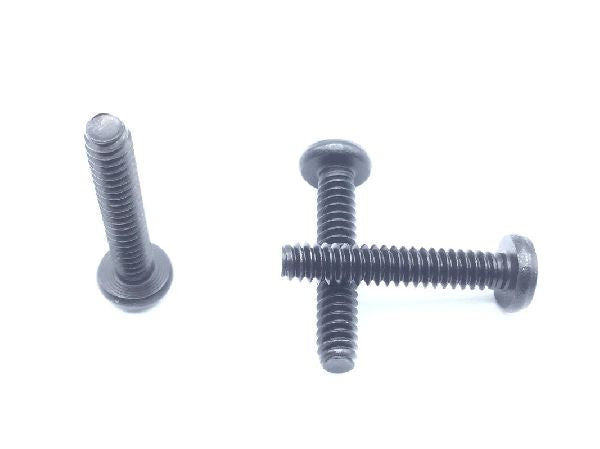

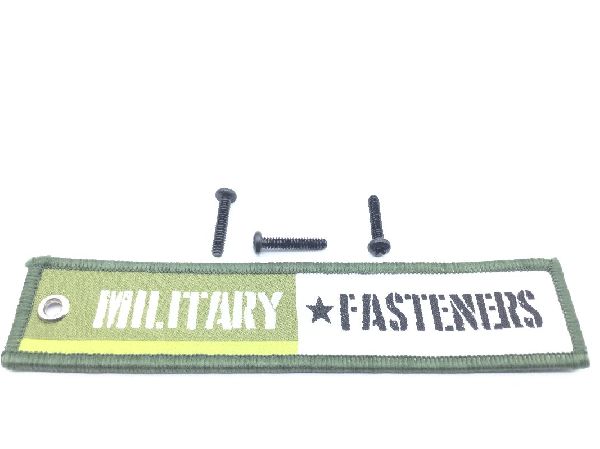

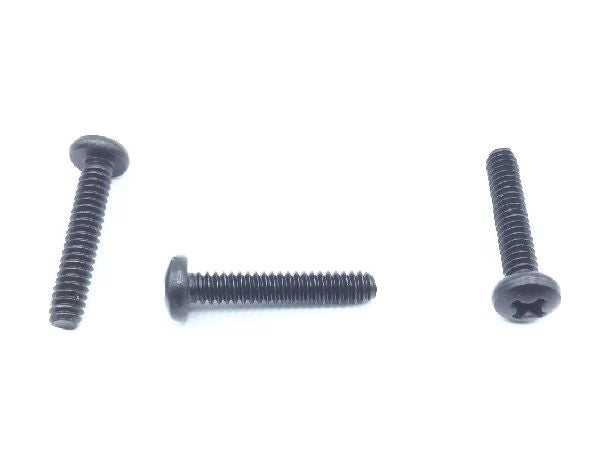

MS51957-32B Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.32

Units per Pack 100

Price per Pack $32.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $32.00

Add item to quote

Head Style

Pan

Material

Steel

Thread Class

Fastener Length: Between 0.719 inches and 0.750 inches
Head Height: Between 0.087 inches and 0.097 inches
Internal Drive Style: Cross recess type 1
Material Specification: 300 series federal standard 1st material response or comp 16-18 or 18-8 assn standard 2nd material response 300 series federal specification 1st material response or 66 qq-s-763
Min. Tensile Strength (psi): 80000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 9c style
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.657 inches and 0.750 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.256 inches and 0.270 inches
