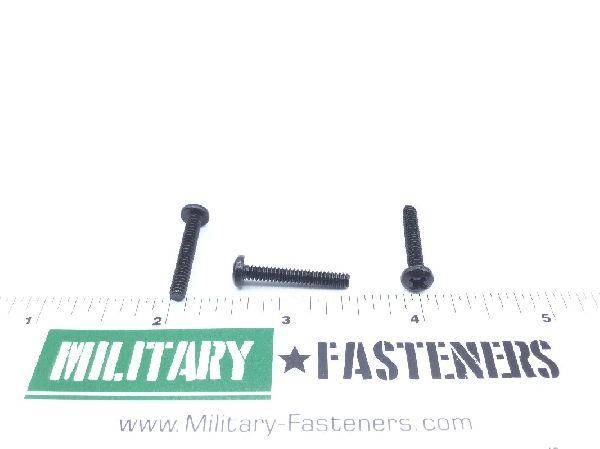

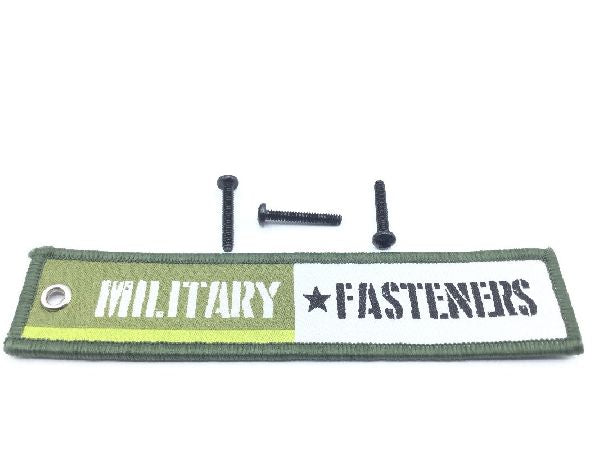

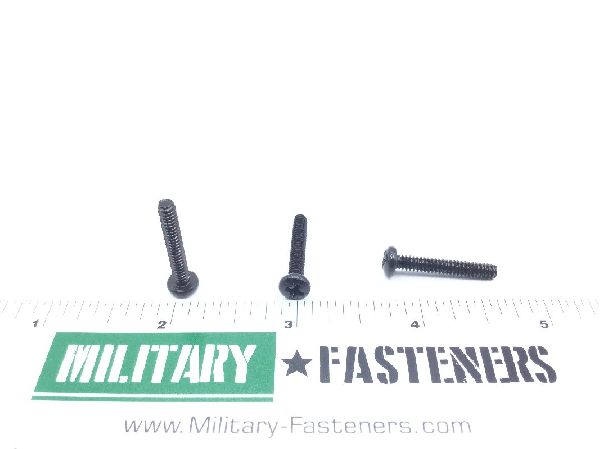

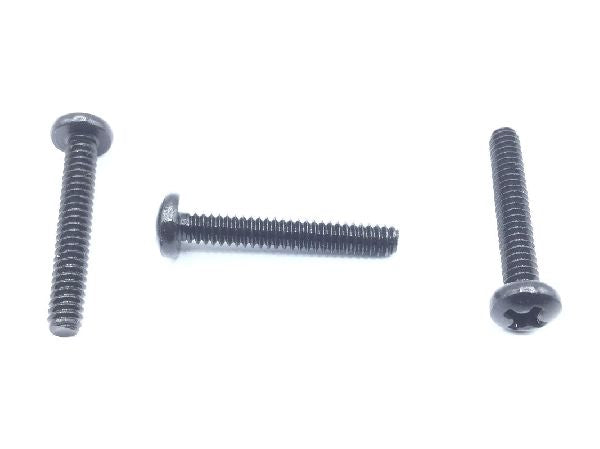

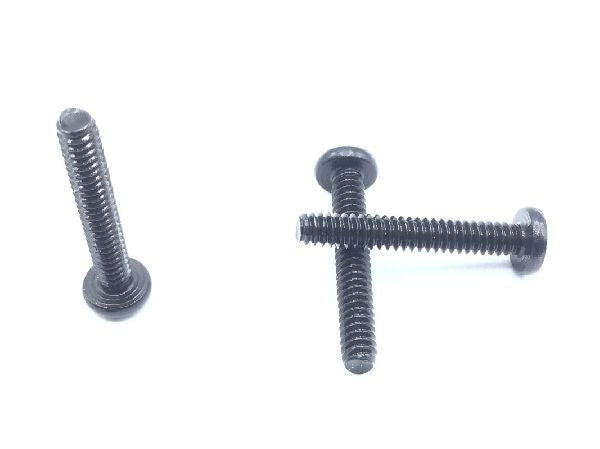

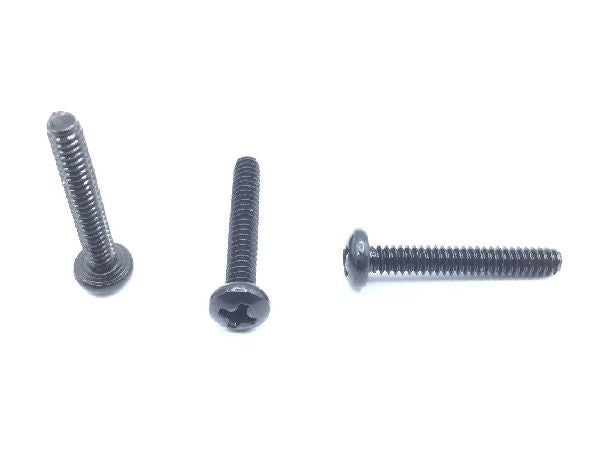

MS51957-33B Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.83

Units per Pack 25

Price per Pack $20.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $20.75

Add item to quote

Head Style

Pan

Thread Class

Thread Quantity Per Inch (tpi)

Fastener Length: Between 0.844 inches and 0.875 inches
Head Height: Between 0.087 inches and 0.097 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 80000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 9c style
Screw Material: Stainless steel or steel
Screw Material Specification: 300 series federal standard 1st material response or comp 16-18 or 18-8 assn standard 2nd material response 300 series federal specification 1st material response or 66 qq-s-763
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.782 inches and 0.875 inches
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.256 inches and 0.27 inches
