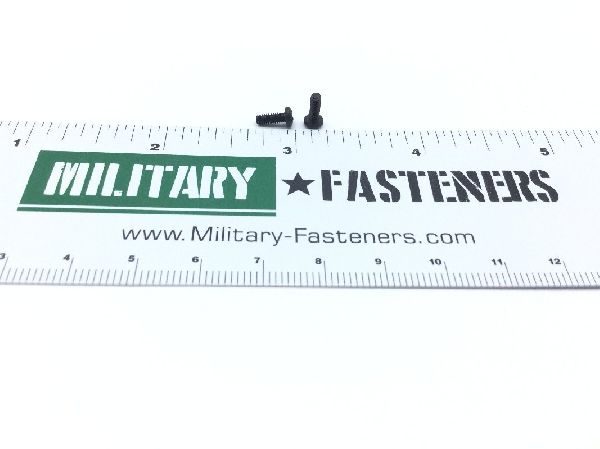

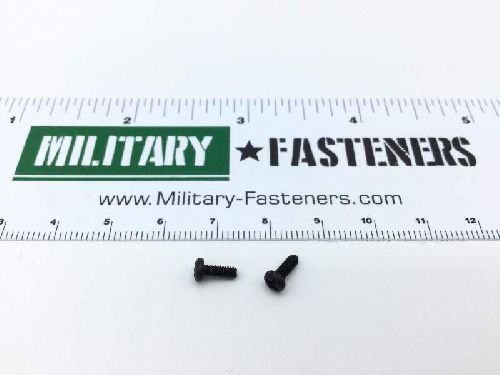

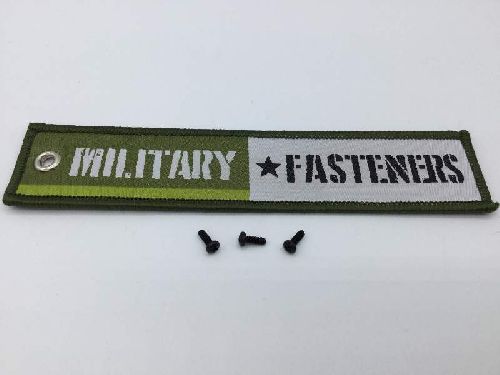

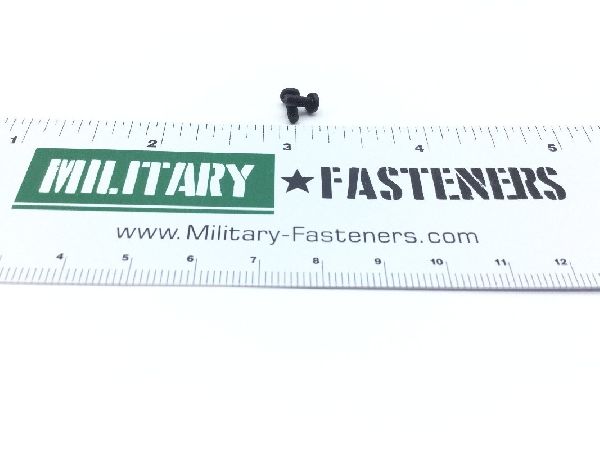

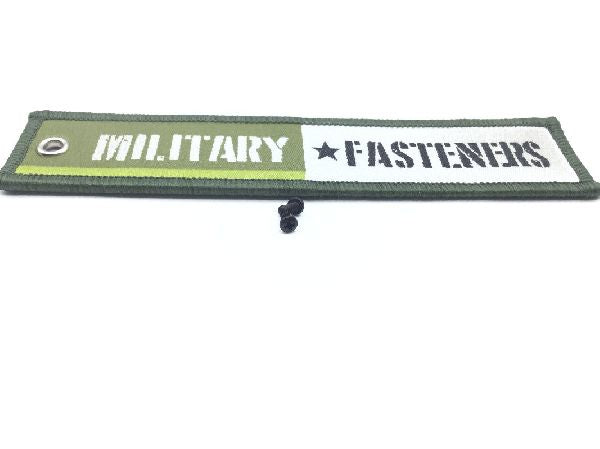

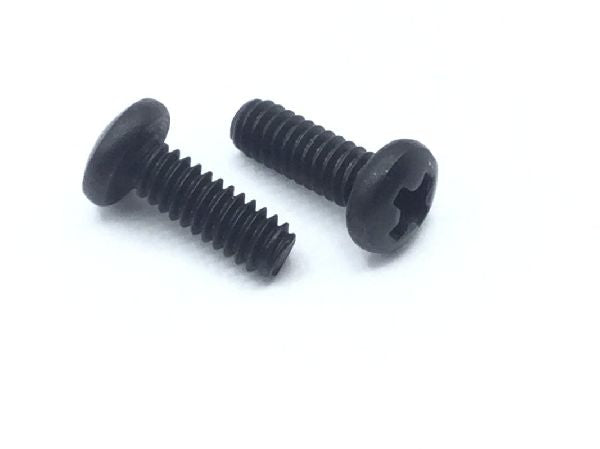

MS51957-3B Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.27

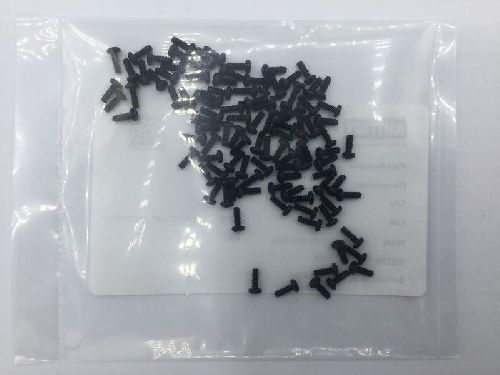

Units per Pack 100

Price per Pack $27.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $27.00

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: Between 0.219 inches and 0.250 inches
Head Height: Between 0.053 inches and 0.062 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 80000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 9c style
Screw Material: Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 316
Screw Surface Treatment: Oxide
Screw Surface Treatment Specification: Cl 4 military specification single treatment response mil-c-13924
Specification Data: 96906-ms51957 government standard and 06481-950726l/inactive/ manufacturers specification control
Thread Diameter: 0.086 inches
Thread Direction: Right-hand
Thread Length: Between 0.183 inches and 0.250 inches
Thread Qty Per Inch (tpi): 56
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.155 inches and 0.167 inches
