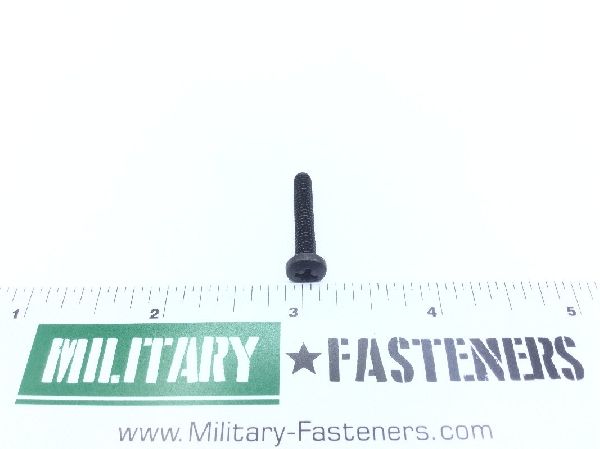

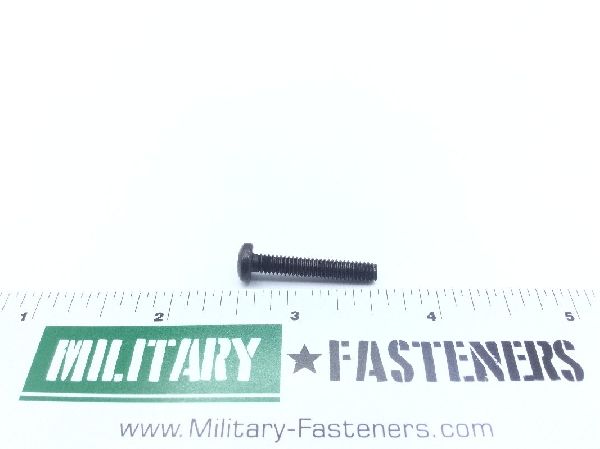

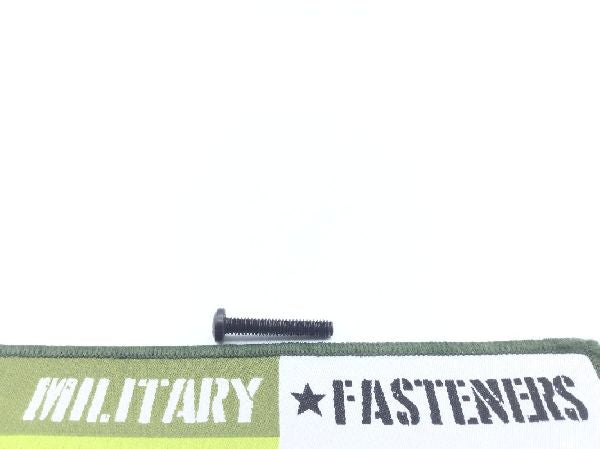

MS51957-49B Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.45

Units per Pack 20

Price per Pack $29.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $29.00

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: Between 0.969 inches and 1.000 inches
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 80000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 9c style
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.907 inches and 1.000 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.306 inches and 0.322 inches
