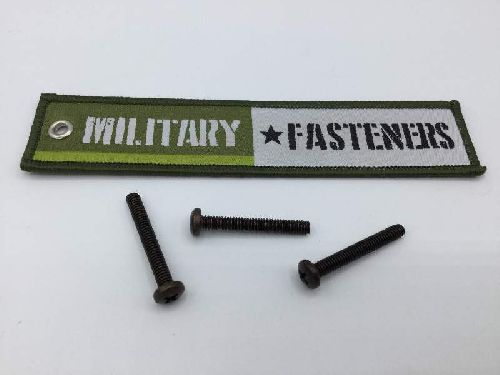

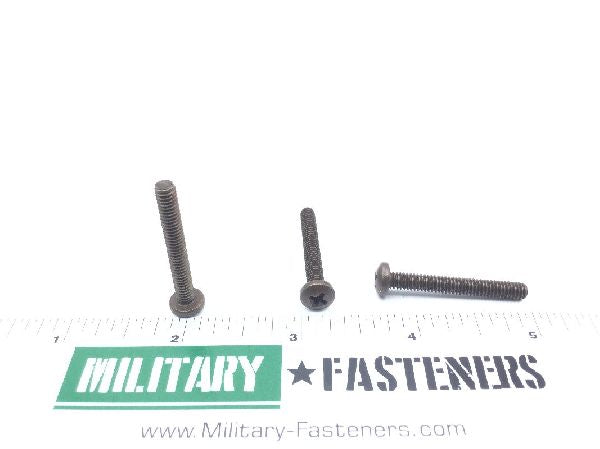

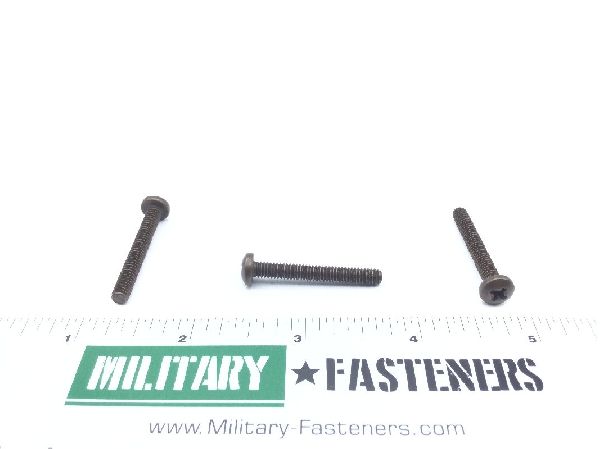

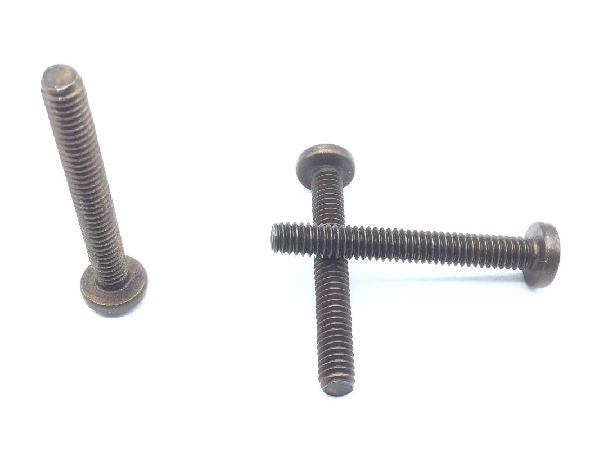

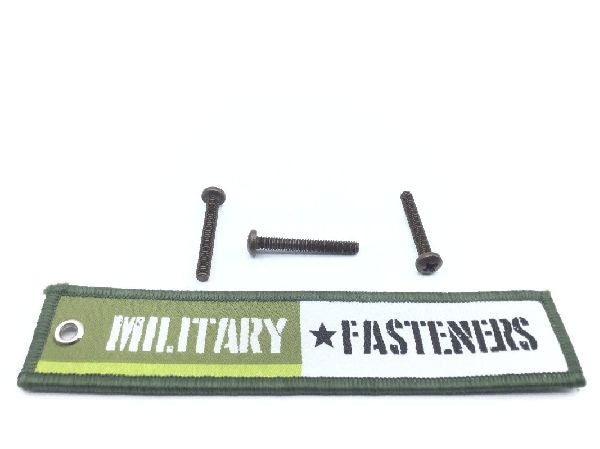

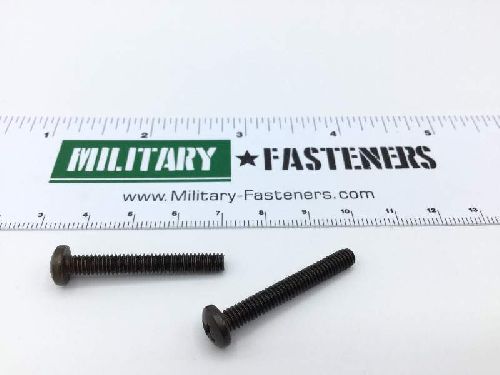

MS51957-50B Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.52

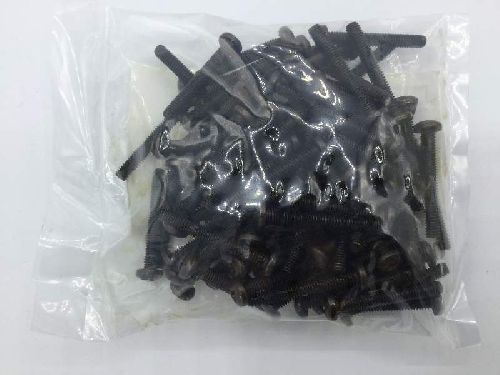

Units per Pack 100

Price per Pack $52.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $52.00

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: Between 1.188 inches and 1.250 inches
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 80000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 9c style
Screw Material: Steel comp
Screw Surface Treatment: Oxide
Screw Surface Treatment Specification: Class 4 military specification single treatment response mil-c-13924
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 1.126 inches and 1.250 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.306 inches and 0.322 inches
