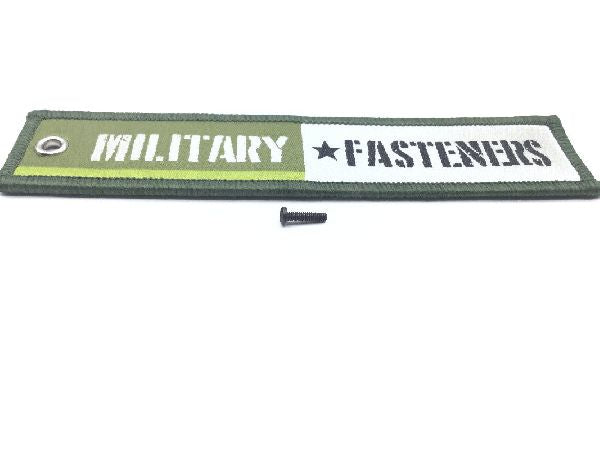

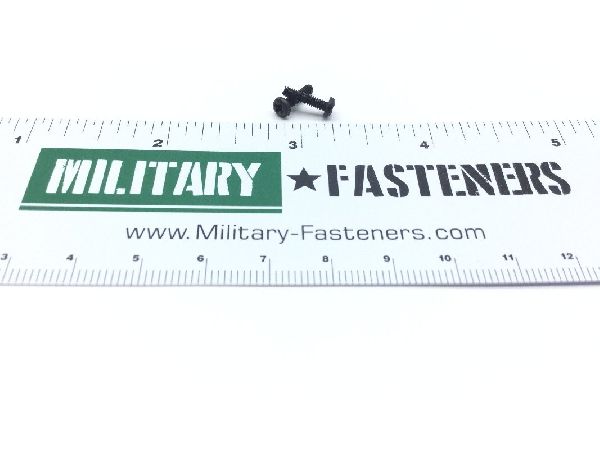

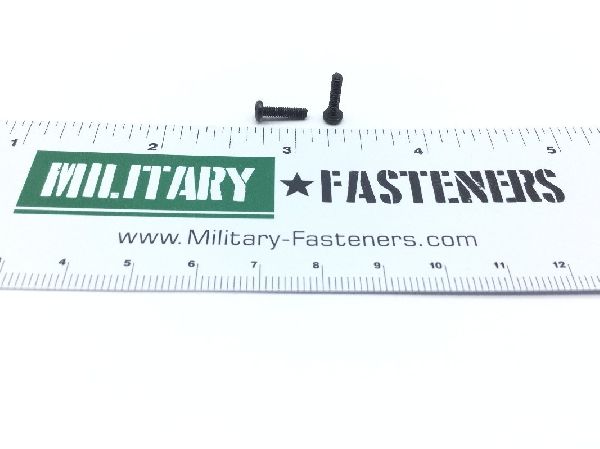

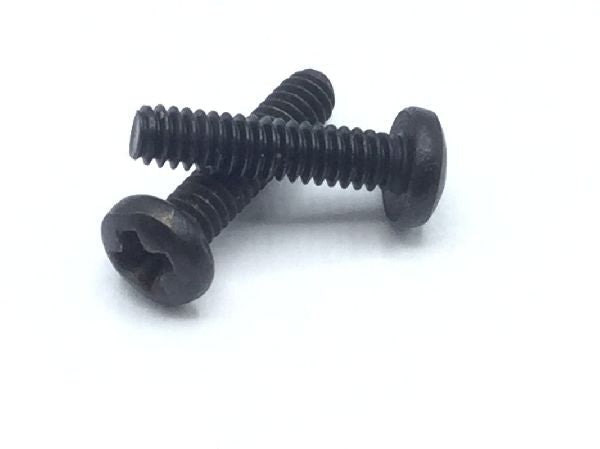

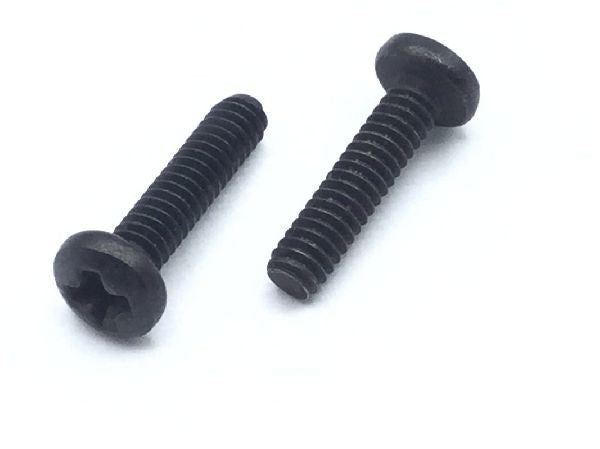

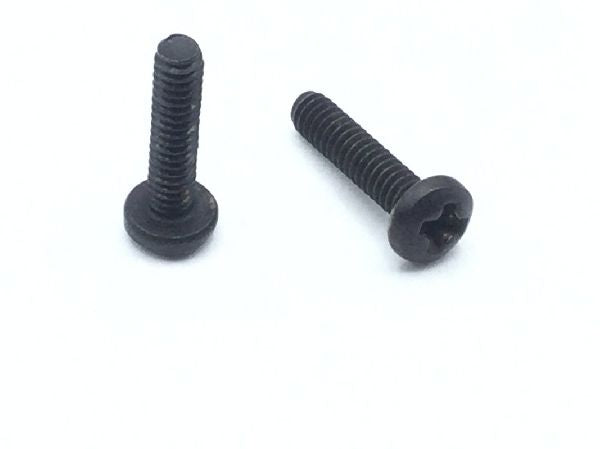

MS51957-5B Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.27

Units per Pack 100

Price per Pack $27.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $27.00

Add item to quote

Head Style

Pan

Material

Steel

Surface Treatment

Class 4 military specification single treatment response mil-c-13924

Thread Class

Fastener Length: Between 0.344 inches and 0.375 inches
Head Height: Between 0.053 inches and 0.062 inches
Internal Drive Style: Cross recess type 1
Material Specification: 300 series federal standard 1st material response or comp 16-18 or 18-8 assn standard 2nd material response 300 series federal specification 1st material response or 66 qq-s-763
Min. Tensile Strength (psi): 80000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 9c style
Thread Diameter: 0.086 inches
Thread Direction: Right-hand
Thread Length: Between 0.308 inches and 0.375 inches
Thread Qty Per Inch (tpi): 56
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.155 inches and 0.167 inches
