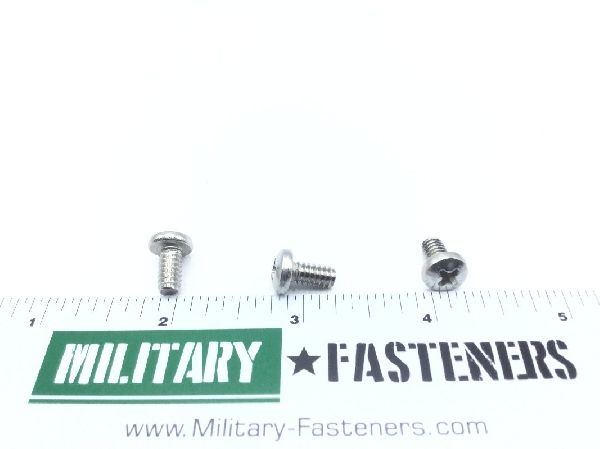

MS51957-61 Machine Screw

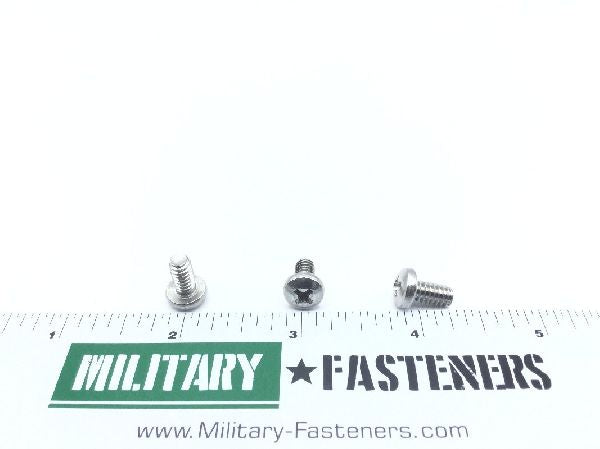

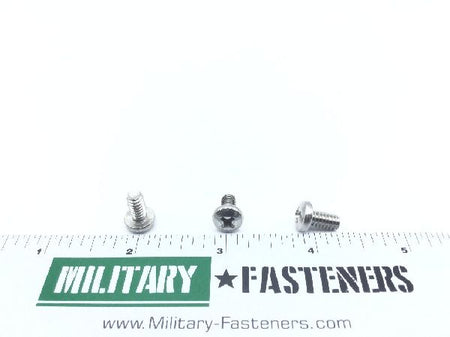

MS51957-61 Machine Screw (2)

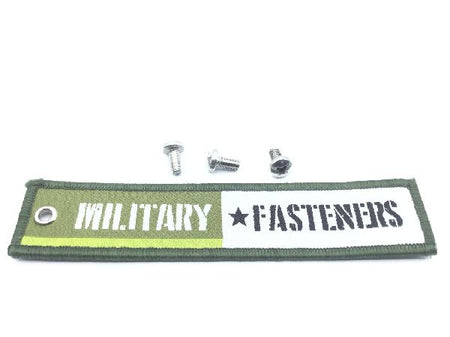

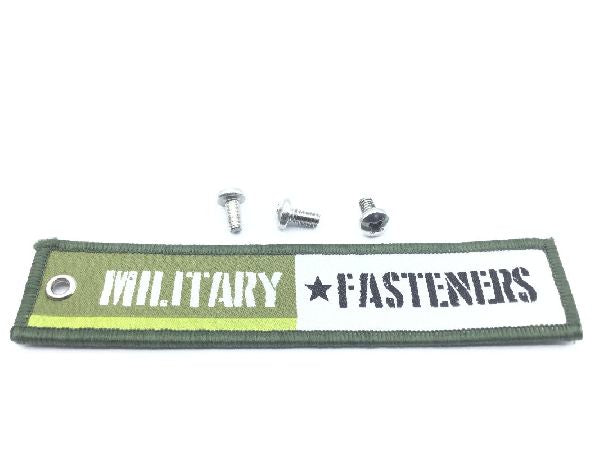

MS51957-61 Machine Screw (3)

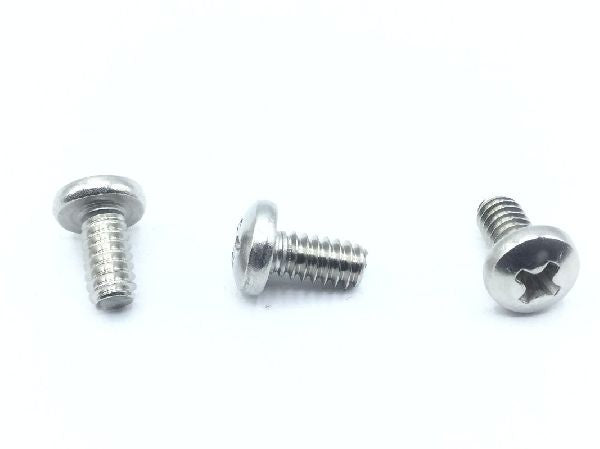

MS51957-61 Machine Screw (4)

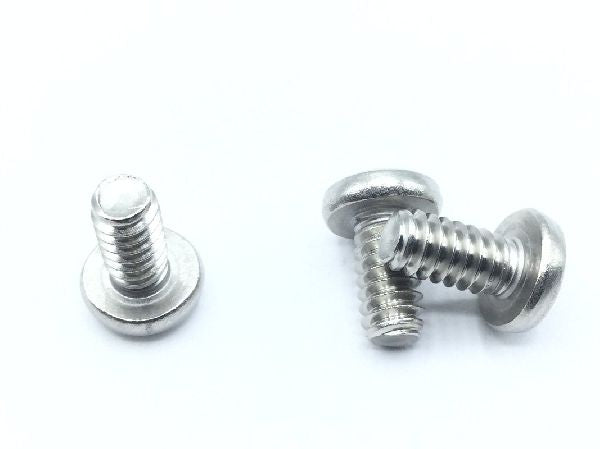

MS51957-61 Machine Screw (5)

MS51957-61 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51957-61 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.37

Units per Pack 100

Price per Pack $37.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $37.00

Add item to quote

Head Style

Pan

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

2a

Fastener Length: 0.375 inches
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.292 inches and 0.375 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.357 inches and 0.373 inches
