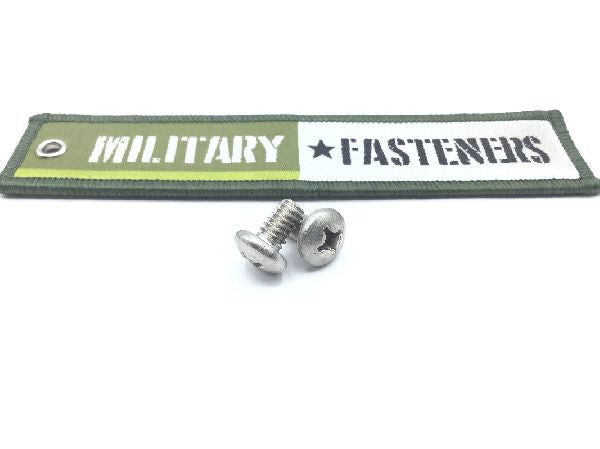

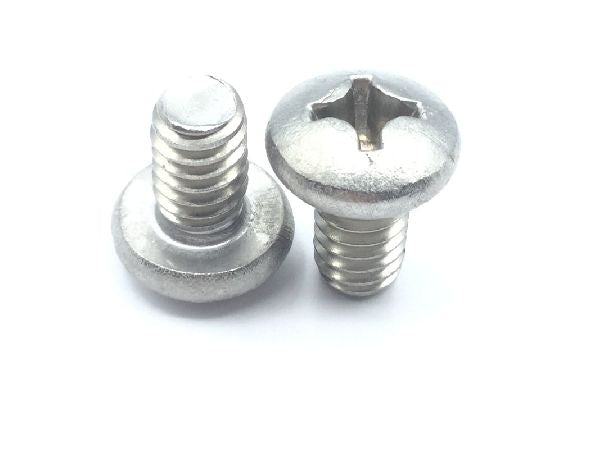

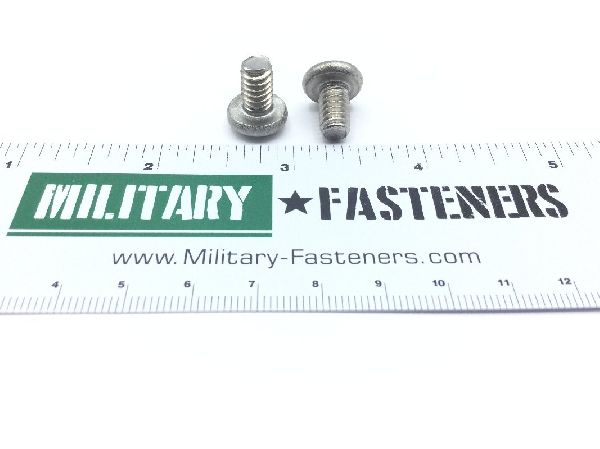

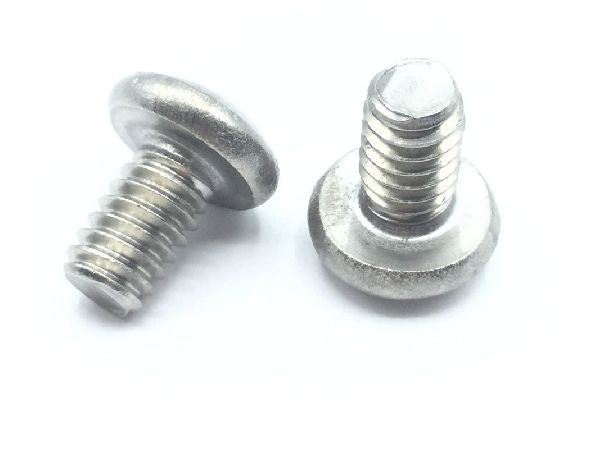

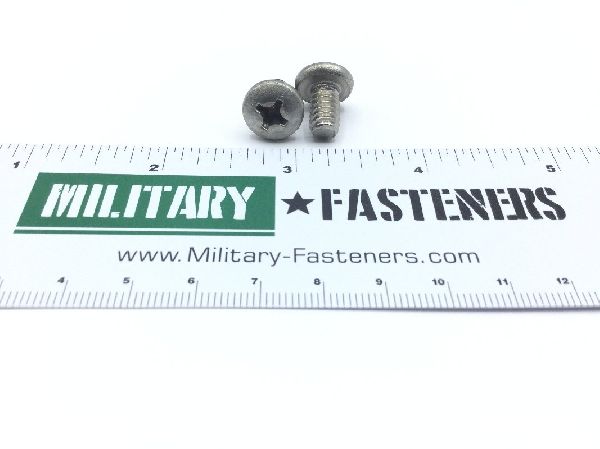

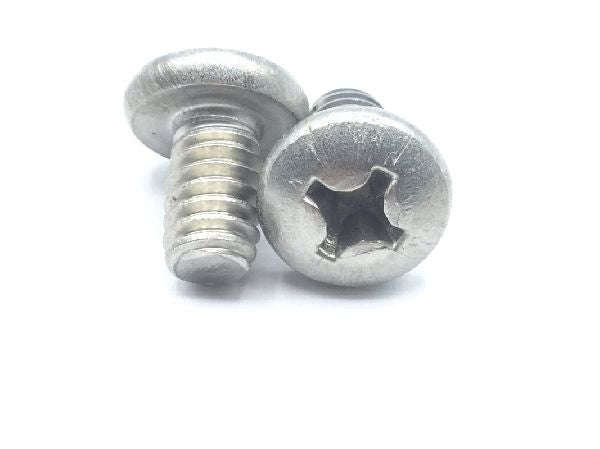

MS51957-78 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.73

Units per Pack 50

Price per Pack $36.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $36.50

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: Between 0.407 inches and 0.438 inches
Head Height: Between 0.162 inches and 0.175 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 80000 pounds per square inch
Screw Material: Stainless Steel
Screw Material Specification: 66 federal standard single material response
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.307 inches and 0.438 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.473 inches and 0.492 inches
