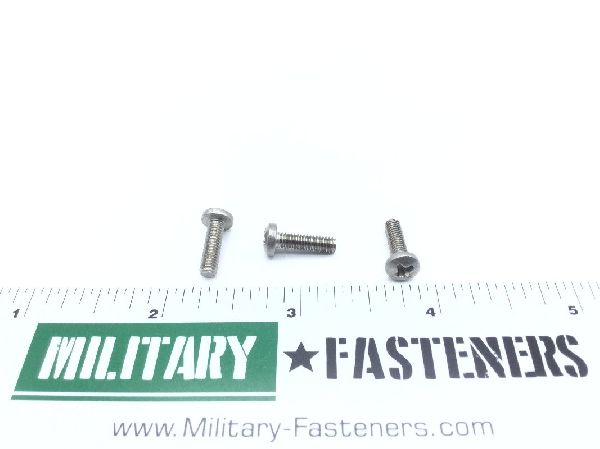

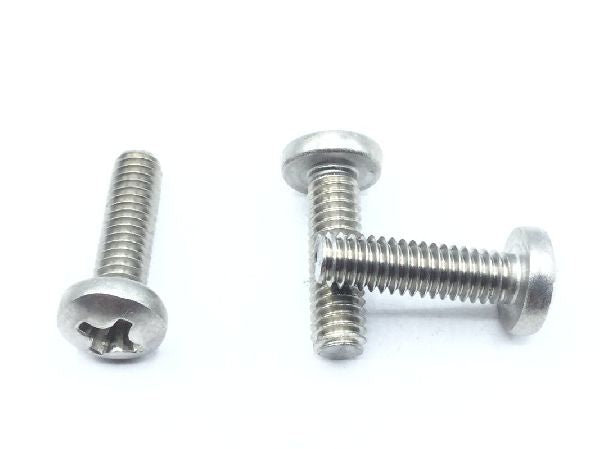

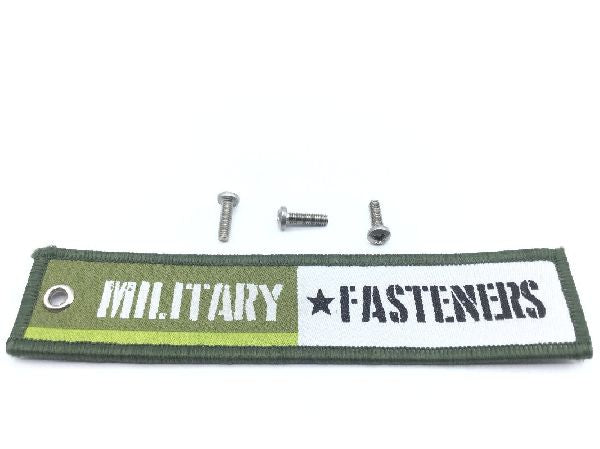

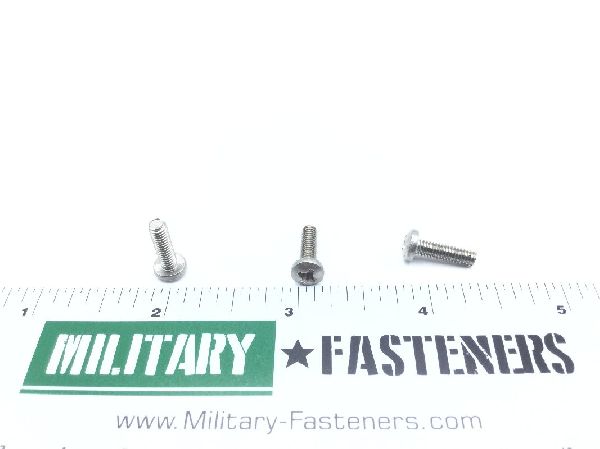

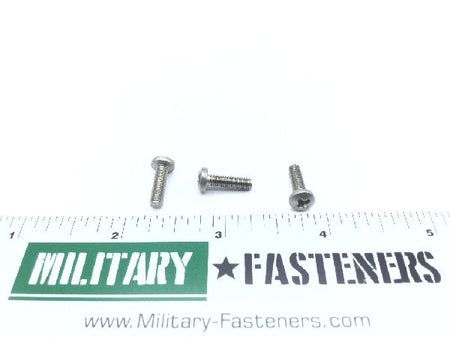

MS51958-30 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.56

Units per Pack 50

Price per Pack $28.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $28.00

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: 0.500 inches
Head Height: Between 0.087 inches and 0.097 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 80000 pounds per square inch
Screw Material: Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316
Screw Material Specification: 66 federal standard all material responses
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.45 inches and 0.50 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.256 inches and 0.270 inches
