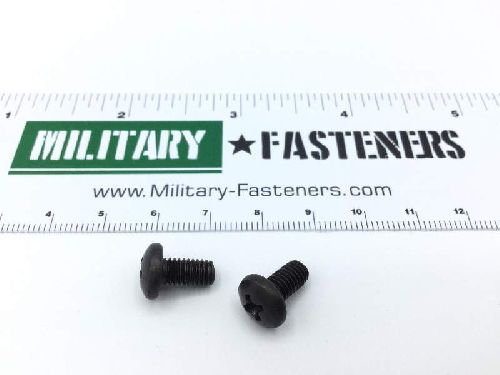

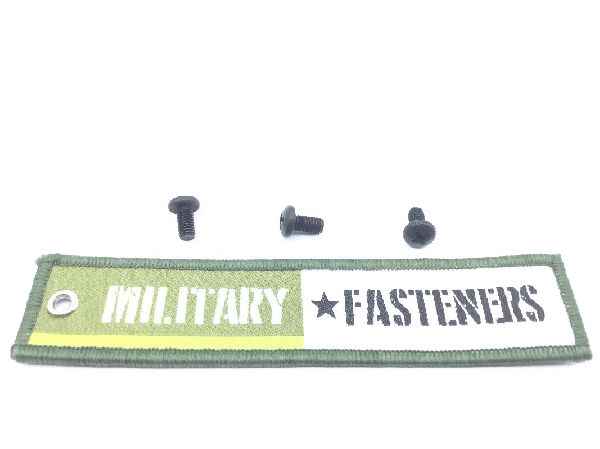

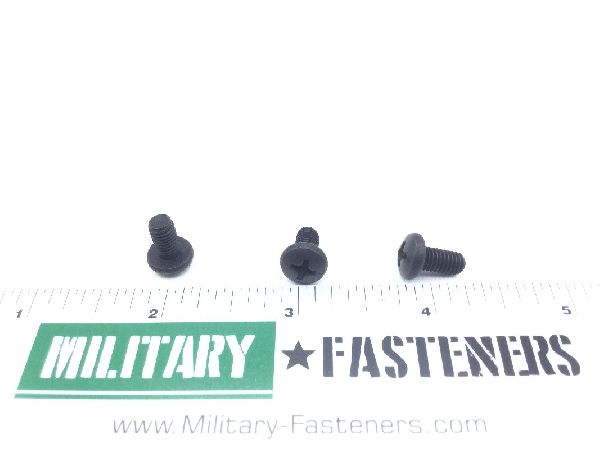

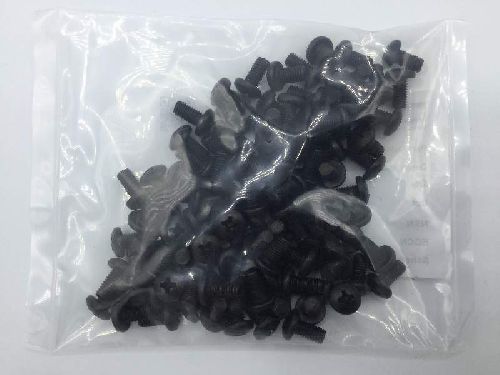

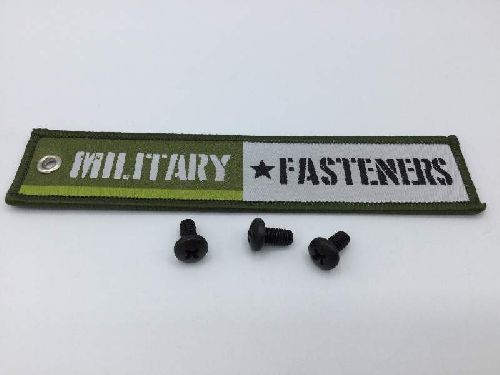

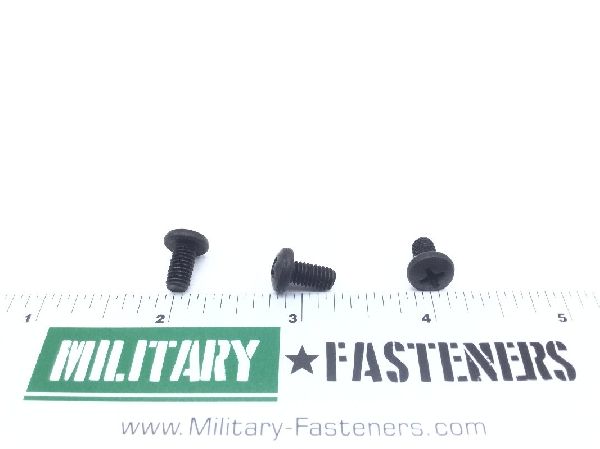

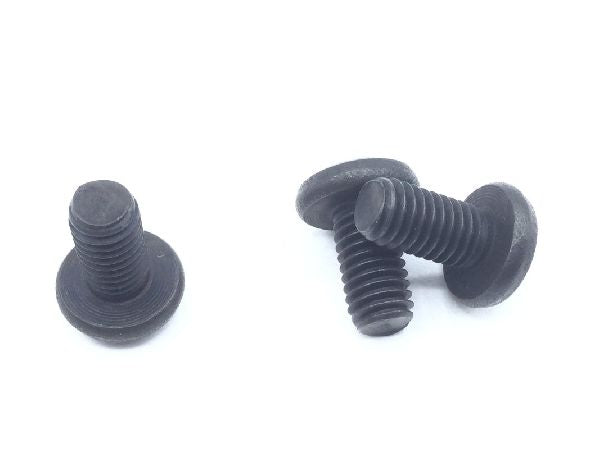

MS51958-61B Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.65

Units per Pack 50

Price per Pack $32.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $32.50

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: Between 0.344 inches and 0.375 inches
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 80000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 9c style
Screw Material: Steel comp 304 or steel comp 302
Screw Material Specification: Qq-s-763 federal specification 1st material response or federal standard 66 federal specification 2nd material response
Screw Surface Treatment: Oxide
Screw Surface Treatment Specification: Cl 4 military specification single treatment response mil-c-13924
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.282 inches and 0.375 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.357 inches and 0.373 inches
