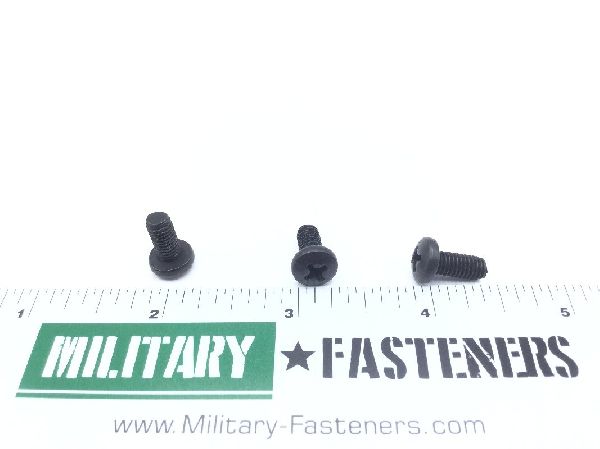

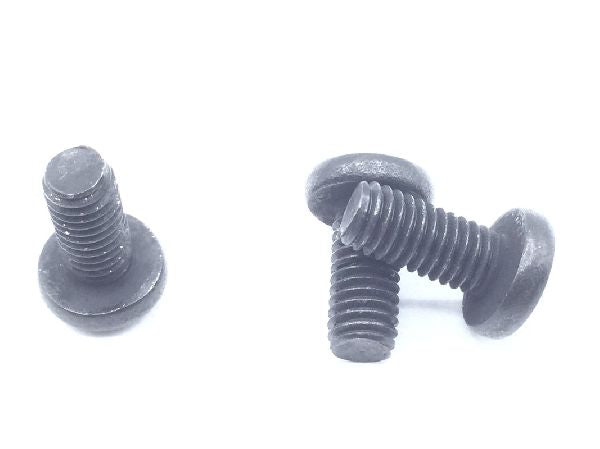

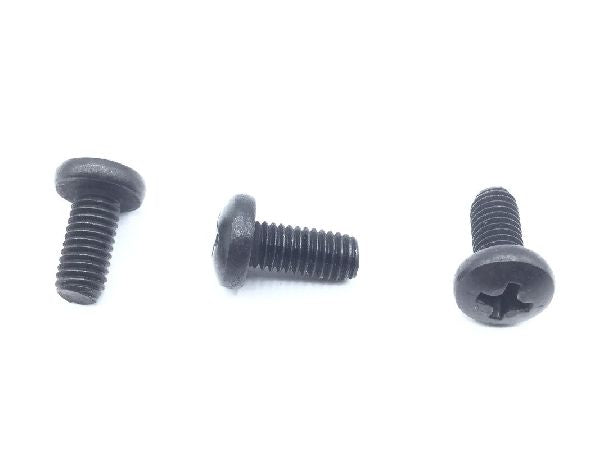

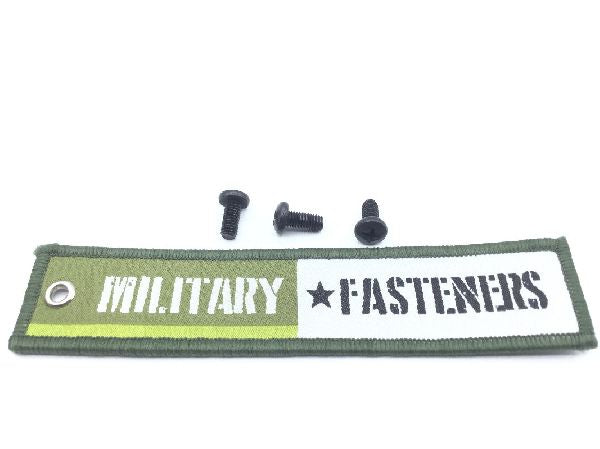

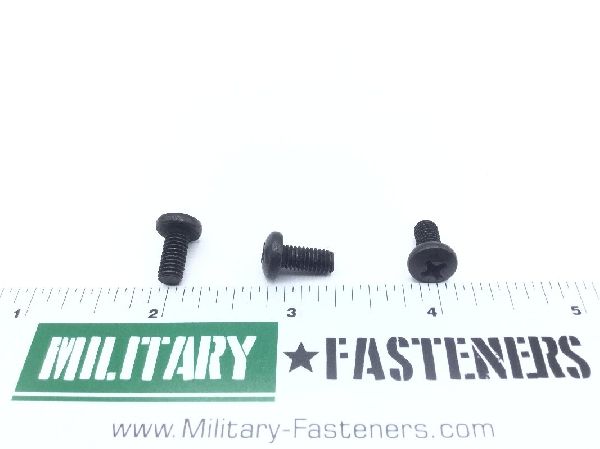

MS51958-62B Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Pan

Thread Class

Fastener Length: Between 0.407 inches and 0.438 inches
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 80000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 9c style
Screw Material: Stainless steel or steel
Screw Material Specification: 300 series federal standard 1st material response or comp 16-18 or 18-8 assn standard 2nd material response 300 series federal specification 1st material response or 66 qq-s-763
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.345 inches and 0.438 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.357 inches and 0.373 inches
