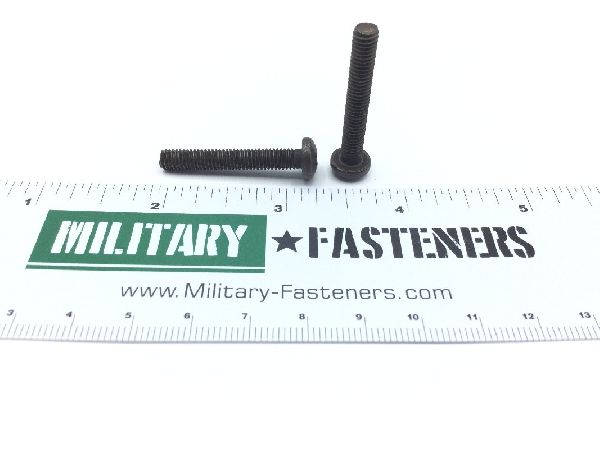

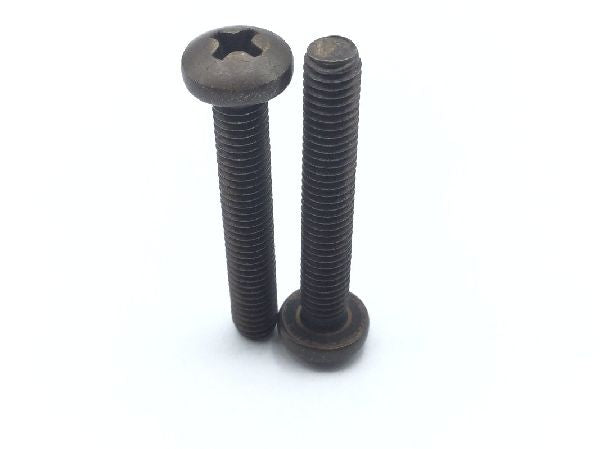

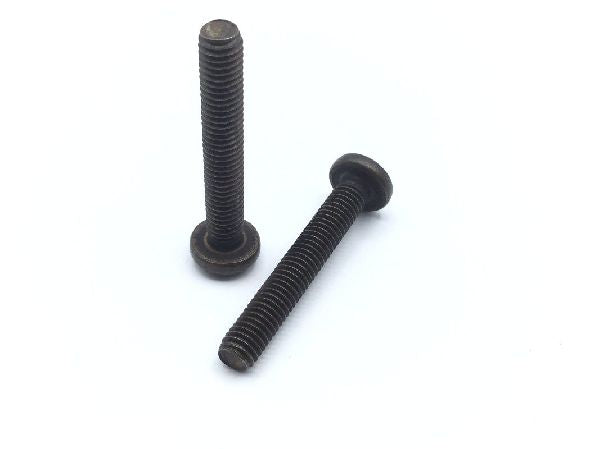

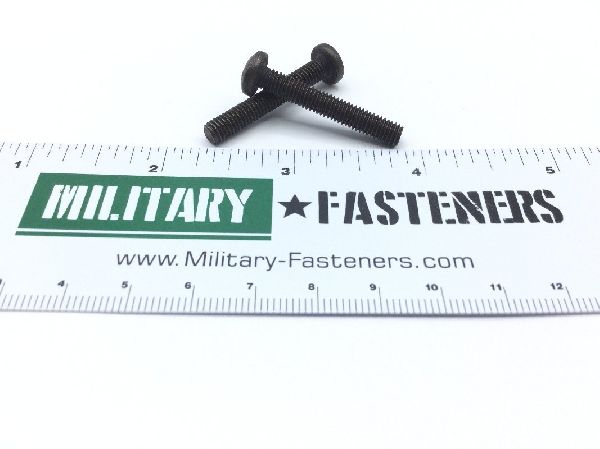

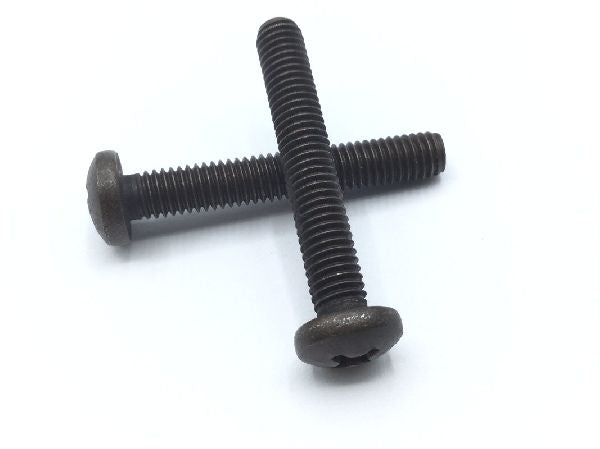

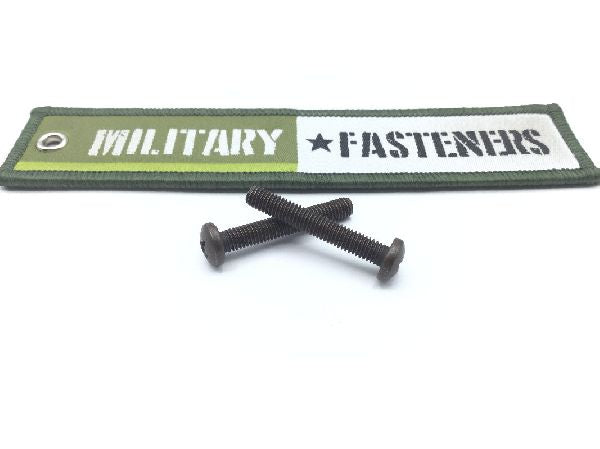

MS51958-68B Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.68

Units per Pack 50

Price per Pack $34.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $34.00

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: Between 1.188 inches and 1.250 inches
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 80000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 9c style
Screw Material: Stainless Steel
Screw Material Specification: 300 series federal standard single material response or comp 16-18 or 18-8 assn standard single material response 300 series federal specification single material response or 66 qq-s-763
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 1.126 inches and 1.250 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.357 inches and 0.373 inches
