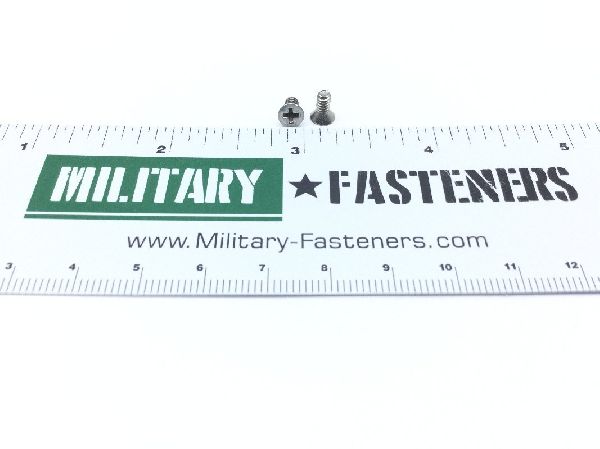

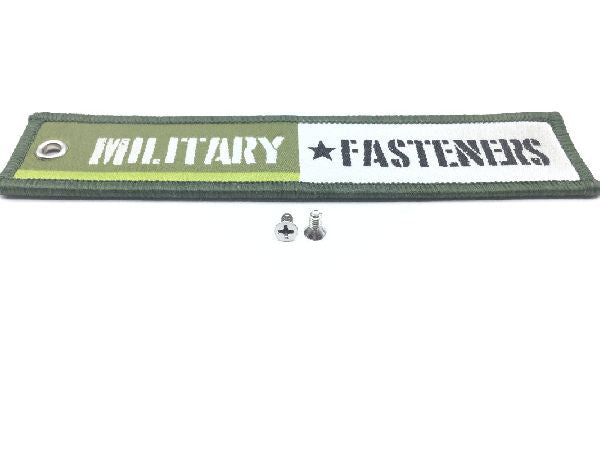

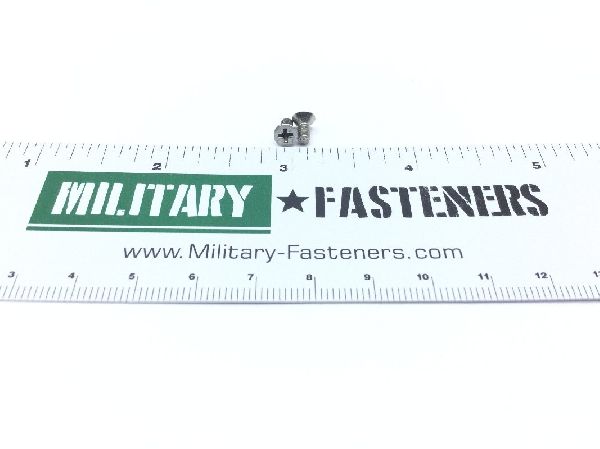

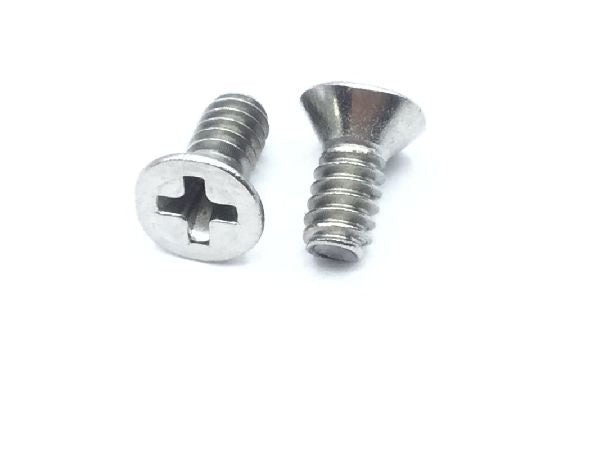

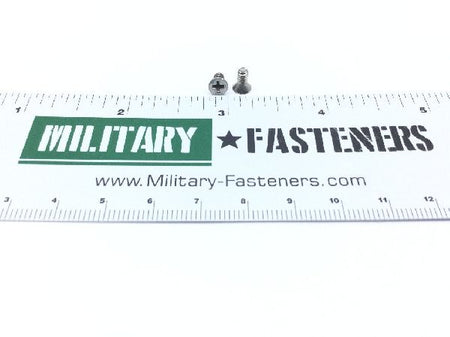

MS51959-13 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.27

Units per Pack 100

Price per Pack $27.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $27.00

Add item to quote

Head Style

Flat countersunk

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Countersink Angle: Between 80.0 degrees and 82.0 degrees
Fastener Length: Between 0.219 inches and 0.250 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 800000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 2c style
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.102 inches and 0.183 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.195 inches and 0.225 inches
