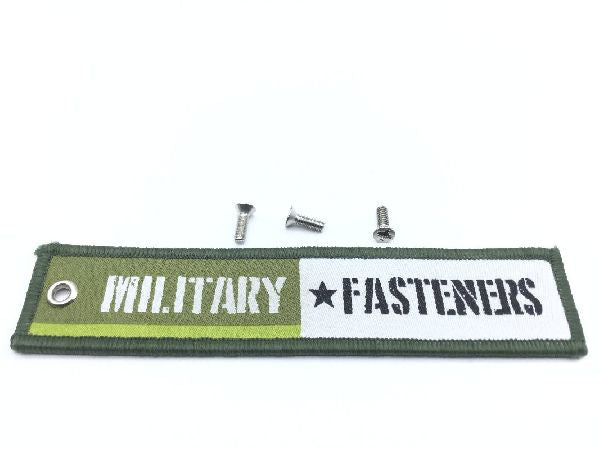

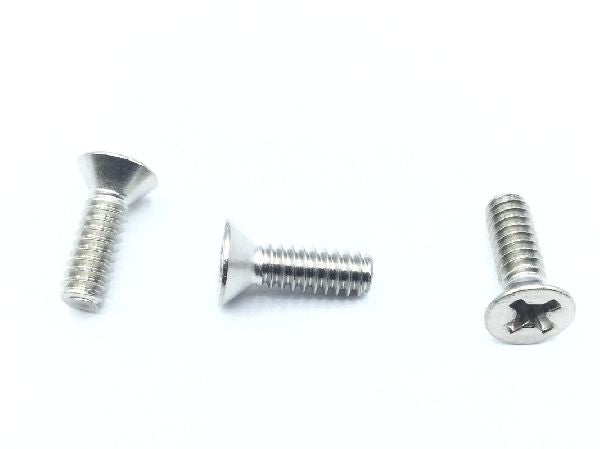

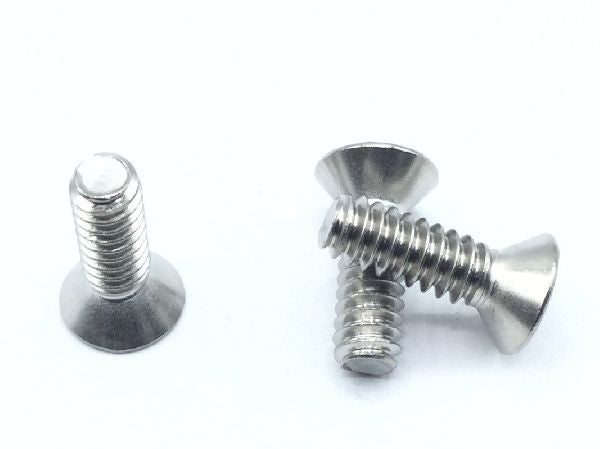

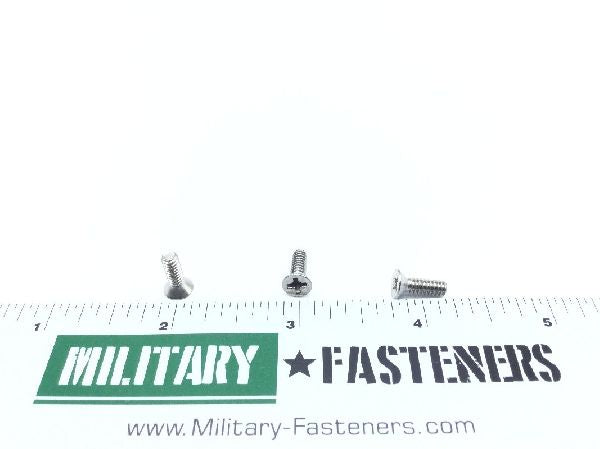

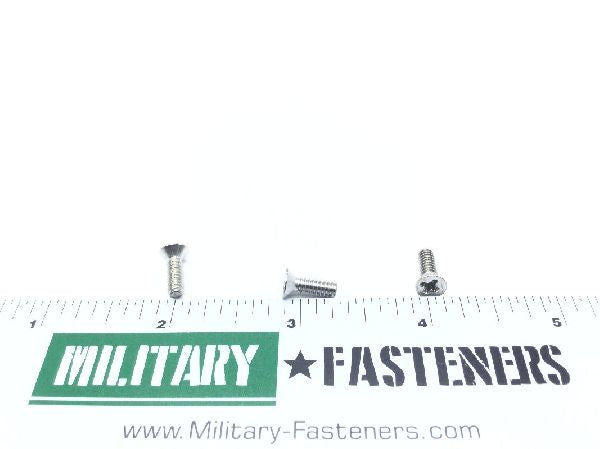

MS51959-29 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.30

Units per Pack 100

Price per Pack $30.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $30.00

Add item to quote

Head Style

Flat countersunk

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Countersink Angle: Between 80.0 degrees and 82.0 degrees
End Application: Mrap rg-33
Fastener Length: 0.438 inches
Internal Drive Style: Cross recess type 1
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.376 inches and 0.438 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.244 inches and 0.279 inches
