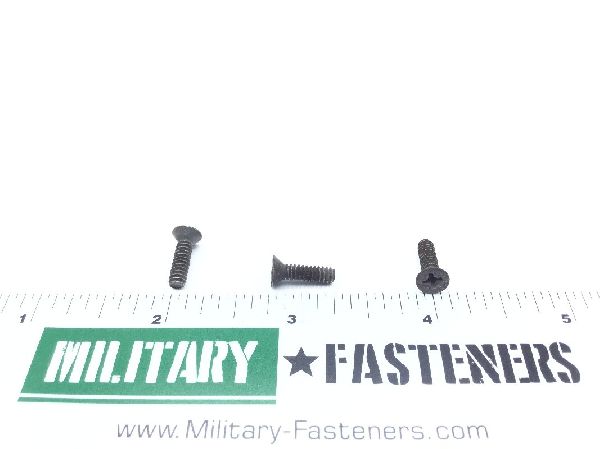

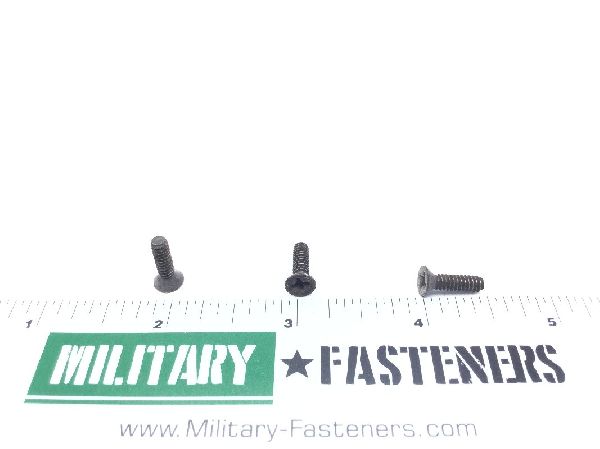

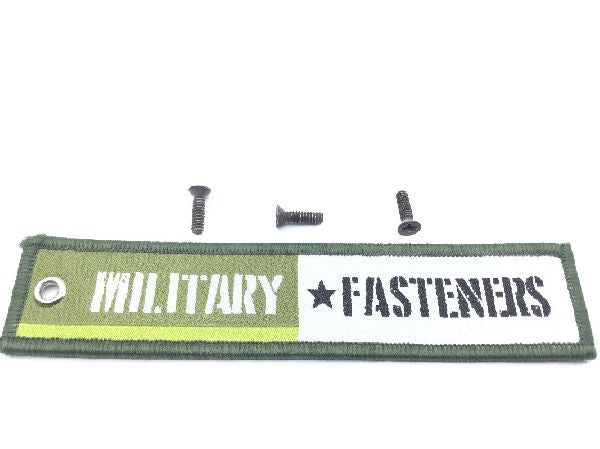

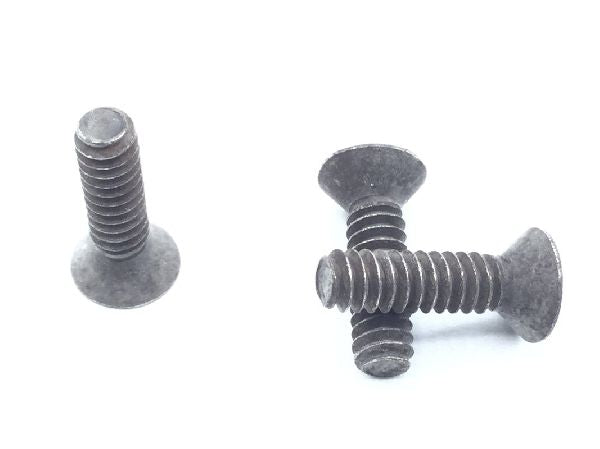

MS51959-30B Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.90

Units per Pack 50

Price per Pack $45.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $45.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Thread Quantity Per Inch (tpi)

Countersink Angle: Between 80.0 degrees and 82.0 degrees
Departure From Cited Designator: As modified by finish
Fastener Length: Between 0.469 inches and 0.500 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 80000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 2c style
Screw Material: Stainless steel or steel
Screw Material Specification: 300 series federal standard 1st material response or comp 16-18 or 18-8 assn standard 2nd material response 300 series federal specification 1st material response or 66 qq-s-763
Screw Surface Treatment: Oxide
Screw Surface Treatment Specification: Cl 4 military specification single treatment response mil-c-13924
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.324 inches and 0.417 inches
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.244 inches and 0.279 inches
