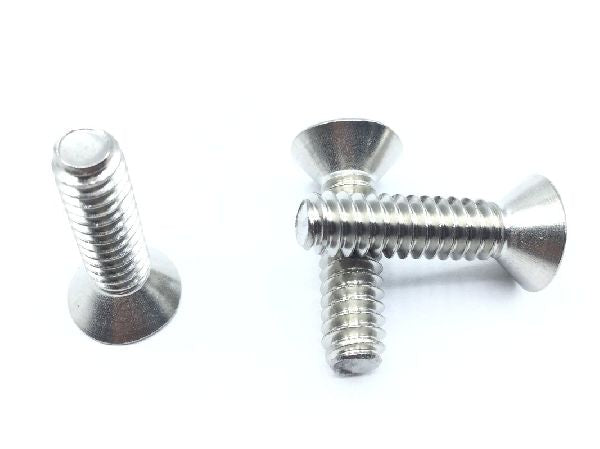

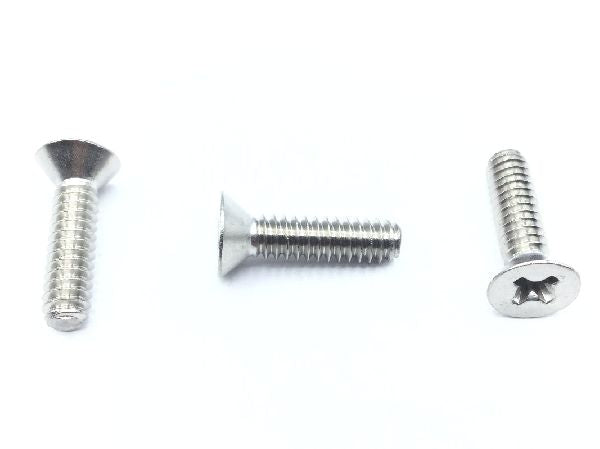

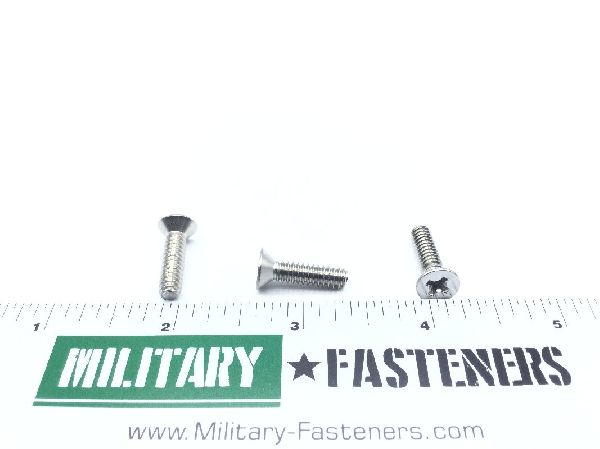

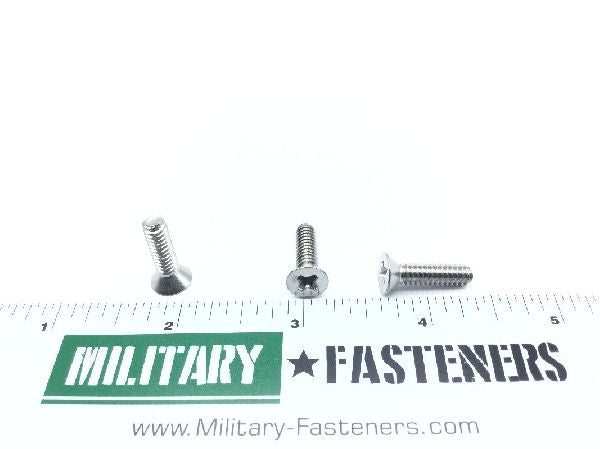

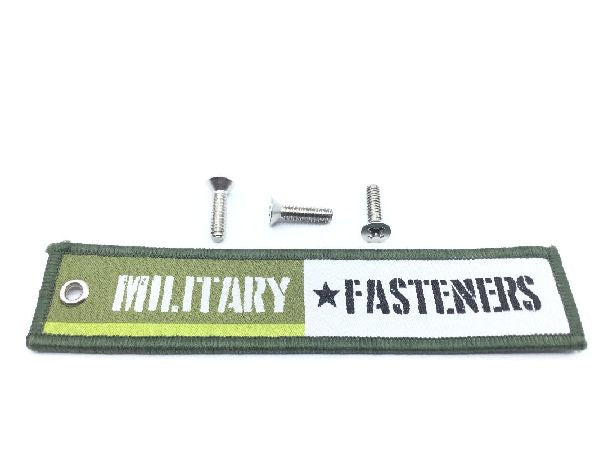

MS51959-65 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.56

Units per Pack 50

Price per Pack $28.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $28.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 80 degrees and 82 degrees
Fastener Length: 0.75 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 80000 pounds per square inch
Screw Material: Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316
Screw Material Specification: 66 federal standard all material responses
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.667 inches and 0.75 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.34 inches and 0.385 inches
