MS51963-34 Setscrew

MS51963-34 Setscrew (2)

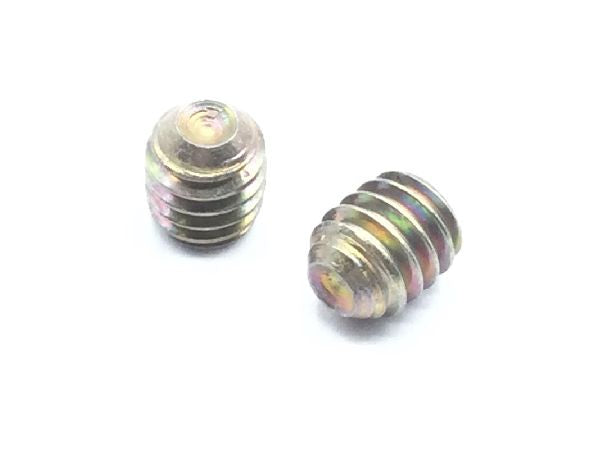

MS51963-34 Setscrew (3)

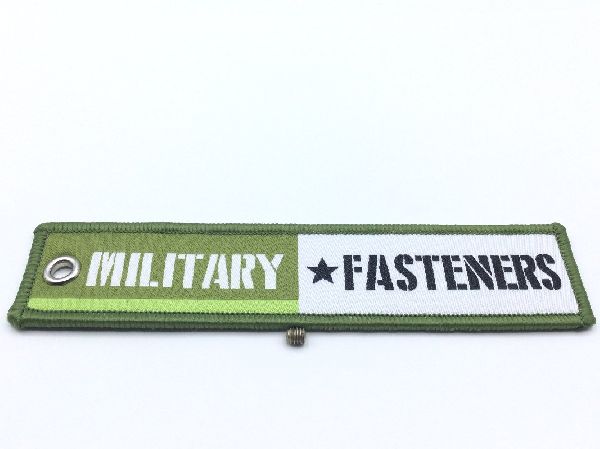

MS51963-34 Setscrew (4)

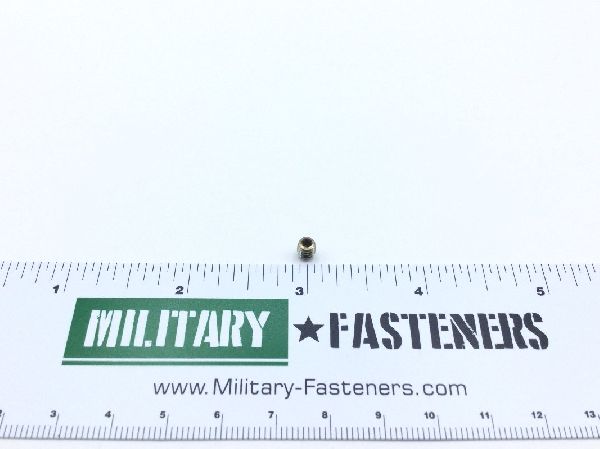

MS51963-34 Setscrew (5)

MS51963-34 Setscrew (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51963-34 Setscrew

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Head Style

Headless (setscrew)

Material

Steel comp 4037 or steel comp 4137 or steel comp 4140 or steel comp 8630 or steel comp 8740

Surface Treatment

Cl 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

3a

Fastener Length: 0.188 inches
Hardness Rating: 45.0 rockwell c and 53.0 rockwell c
Internal Drive Style: Hexagon
Material Specification: 66 federal standard all material responses
Point Style: Cup
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.188 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Width Across Flats: 0.078 inches
