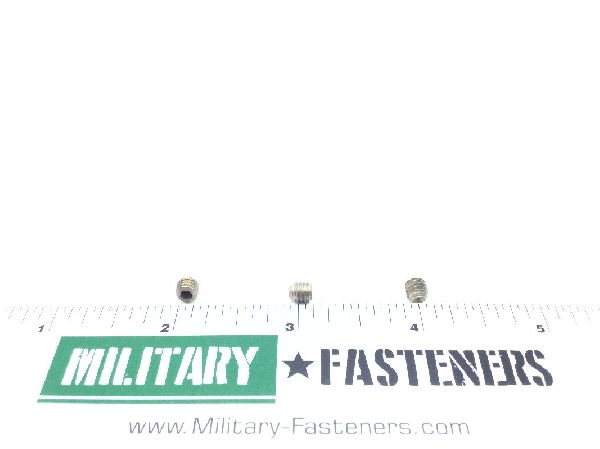

MS51964-48 Setscrew

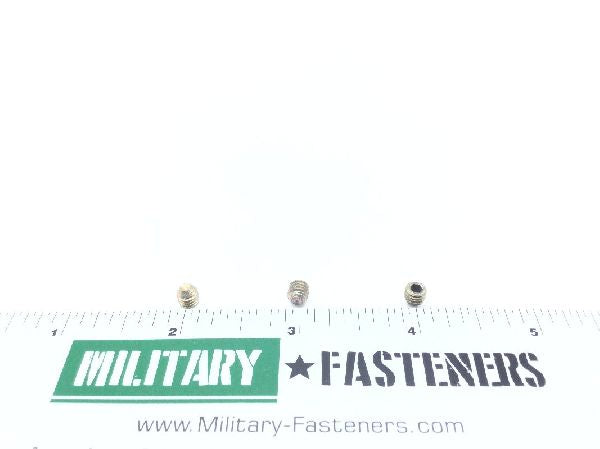

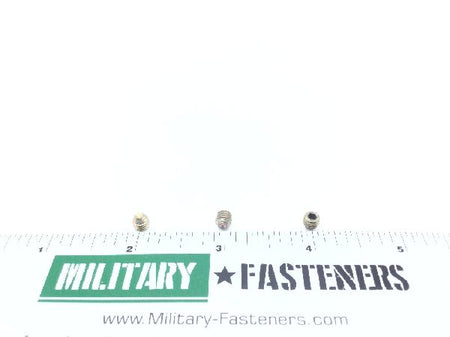

MS51964-48 Setscrew (2)

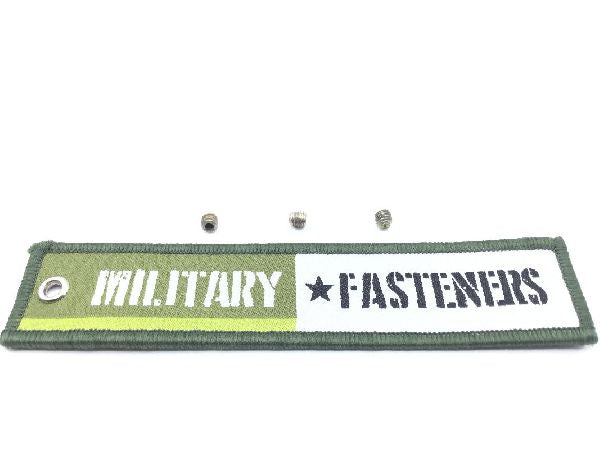

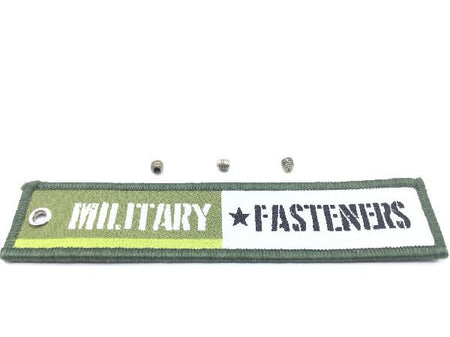

MS51964-48 Setscrew (3)

MS51964-48 Setscrew (4)

MS51964-48 Setscrew (5)

MS51964-48 Setscrew (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51964-48 Setscrew

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Head Style

Headless (setscrew)

Material

Steel comp 1010 or steel comp 1011 or steel comp 1013 or steel comp 1015 or steel comp 1016 or steel comp 1017 or steel comp 1018 or steel comp 1019 or steel comp 1020 or steel comp 1022 or steel comp 1212 or steel comp 1213 or steel com

Thread Class

3a

Fastener Length: 0.187 inches
Hardness Rating: 45.0 rockwell c and 53.0 rockwell c
Internal Drive Style: Hexagon
Material Specification: 66 federal standard all material responses
Nondefinitive Specification/std Data: 1 type and 4 style
Point Style: Cup
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.187 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Across Flats: 0.094 inches
