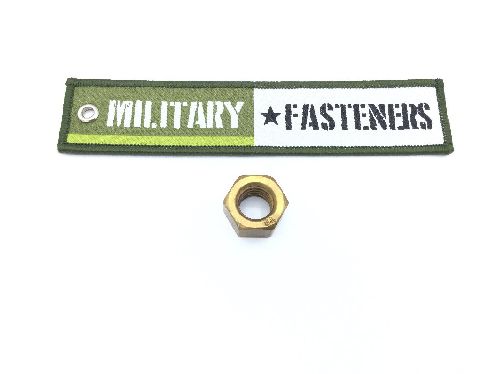

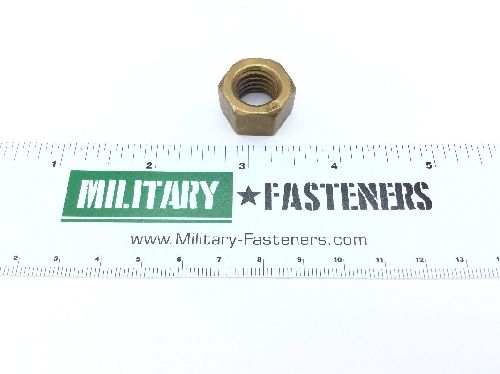

MS51967-14 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.50

Units per Pack 25

Price per Pack $37.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $37.50

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unc (coarse thread)

Thread Size

0.500 inches

Bearing Surface Type: Chamfered or washer faced
Departure From Cited Designator: Material must conform to ships parts control center special quality control provisions
Hardness Rating: Between 95.0 rockwell b and 32.0 rockwell c
Nondefinitive Specification/std Data: 2 type and 4 style and b grade
Nut Height: Between 0.427 inches and 0.448 inches
Nut Style: Hexagon
Special Test Features: Special quality control testing
Test Data Document: Etc.).
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 13
Width Across Flats: Between 0.736 inches and 0.750 inches
