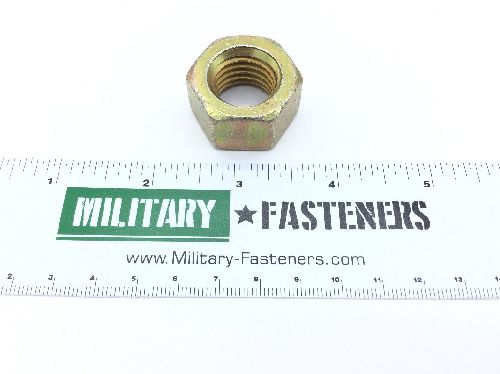

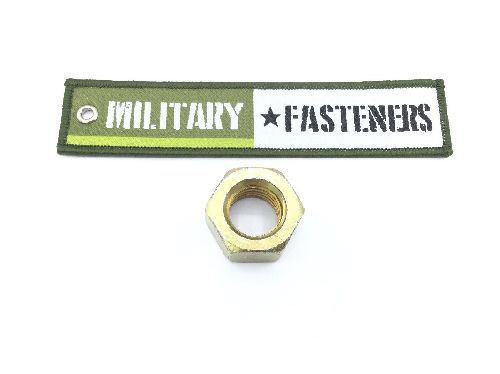

MS51967-24 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $3.19

Units per Pack 10

Price per Pack $31.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $31.90

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

2b

Thread Series

Unc (coarse thread)

Thread Size

0.750 inches

Bearing Surface Type: Chamfered or washer faced
End Application: Nsn 4210-01-486-1035 tfft (tactical fire fighting truck)
Hardness Rating: Between 78.0 rockwell b and 38.0 rockwell c
Nondefinitive Specification/std Data: 2 type and 4 style and c grade
Nut Height: Between 0.617 inches and 0.665 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 10
Width Across Flats: Between 1.088 inches and 1.125 inches
