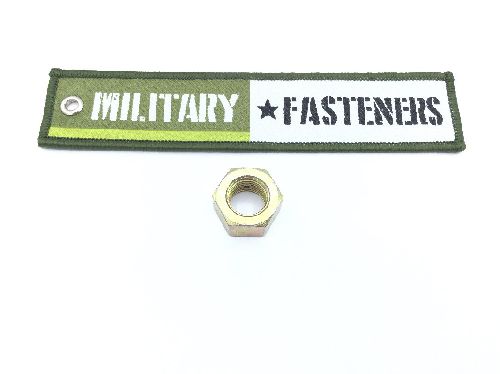

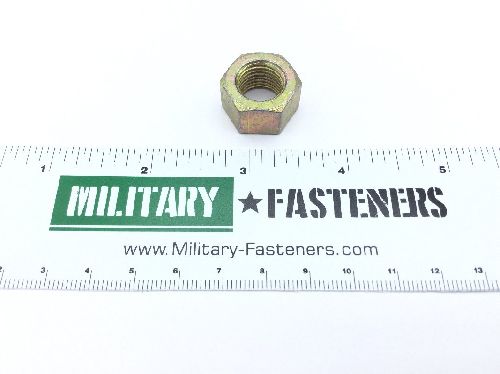

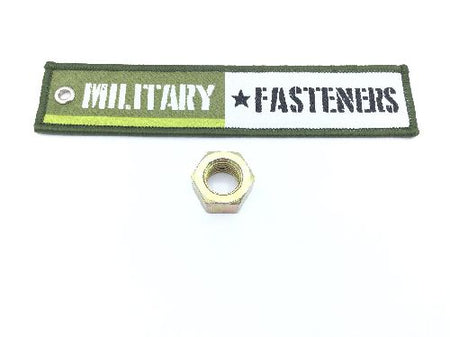

MS51968-14 Plain Hexagon Nut

Product Series
MS
ECCN
EAR99
Schedule
7318.16.0085
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel
Surface Treatment
Cl 3 federal specification single treatment response type 2 qq-p-416
Thread Class
2b
Thread Series
Unf (fine thread)
Thread Size
0.500 inches
Bearing Surface Type
Chamfered or washer faced
Hardness Rating
121.0 brinell standard
Nut Height
Between 0.427 inches and 0.448 inches
Nut Style
Hexagon
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
20
Width Across Flats
Between 0.736 inches and 0.750 inches
