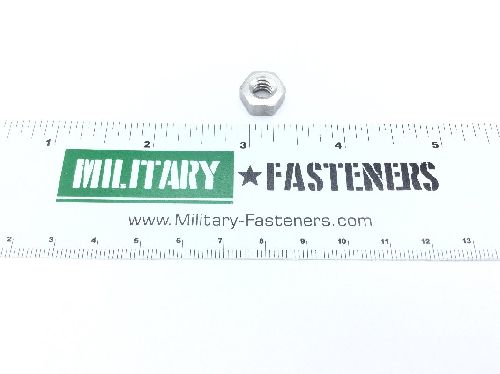

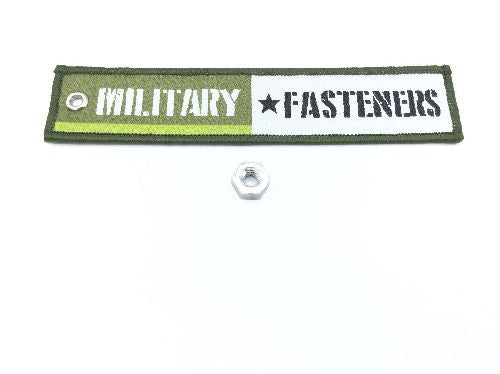

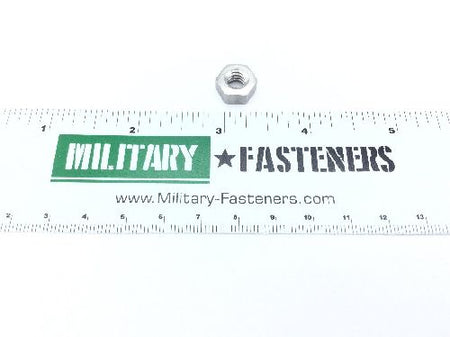

MS51971-1 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.42

Units per Pack 25

Price per Pack $35.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $35.50

Add item to quote

Material

Steel comp 303 or steel comp 304 or steel comp 440c

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

2b

Thread Series

Unc (coarse thread)

Thread Size

0.250 inches

Bearing Surface Type: Chamfered or washer faced
Iii End Application: Mrap- cougar ambulance/rg-33 auv; mrap buffalo mk2a2; mrap - cougar tow; mrap - cougar sabr/tow
Material Specification: Aisi 304 or sae 30304 federal standard 2nd material response or aisi 14140c federal standard 3rd material response aisi 303 or sae 30303 federal standard 1st material response or federal standard 66 fed standard 66
Nut Height: Between 0.212 inches and 0.226 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.4280 inches and 0.4375 inches
