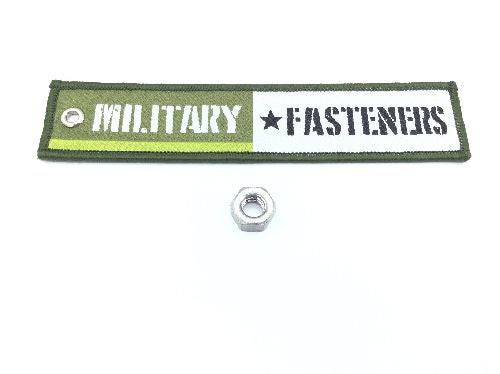

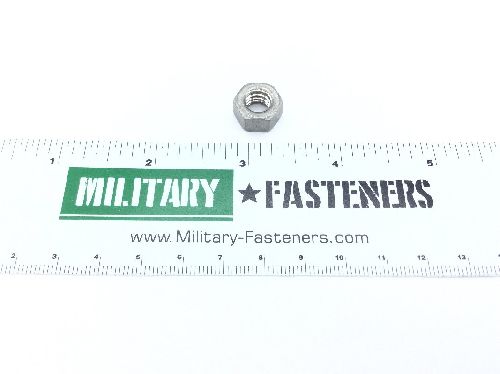

MS51971-2 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 303 or steel comp 304 or steel comp 305

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

2b

Thread Series

Unc (coarse thread)

Thread Size

0.312 inches

Bearing Surface Type: Chamfered or washer faced
Iii End Application: Mrap - m-atv w/cs13 pop; mrap - cougar tow; mrap - cougar sabr/tow
Material Specification: Fed 66 federal standard single material response
Nut Height: Between 0.258 inches and 0.273 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 18
Width Across Flats: Between 0.4890 inches and 0.5000 inches
