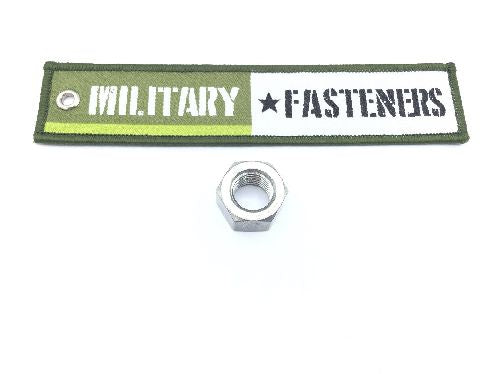

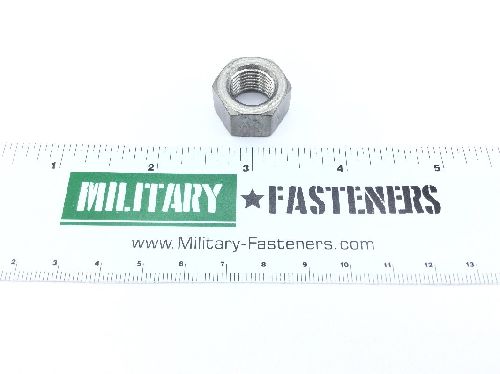

MS51972-5 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $4.58

Units per Pack 10

Price per Pack $45.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $45.80

Add item to quote

Material

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316 or steel comp 317 or steel comp 347

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

2b

Thread Series

Unf (fine thread)

Thread Size

0.500 inches

Bearing Surface Type: Chamfered or washer faced
Material Specification: Or ty347 federal standard all material responses or ty317 ty316 ty305 ty304 type 303 fed standard ty302
Nondefinitive Specification/std Data: 2 type and 4 style and a condition
Nut Height: Between 0.427 inches and 0.448 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.736 inches and 0.750 inches
