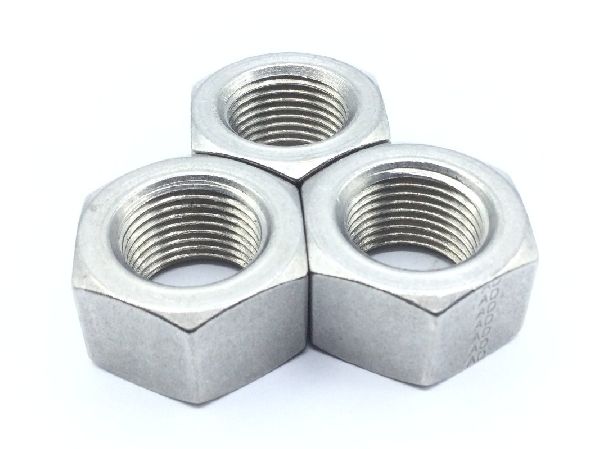

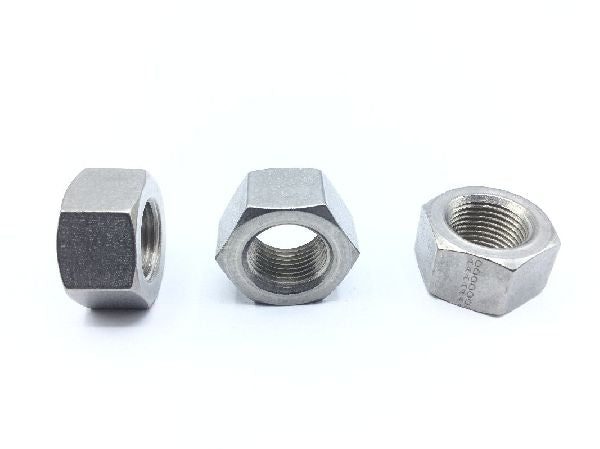

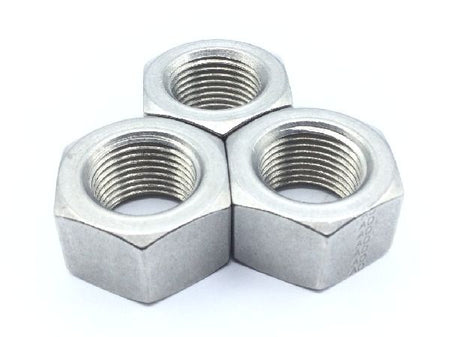

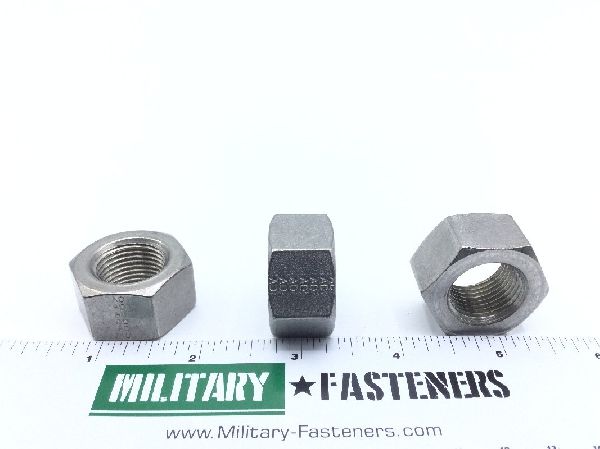

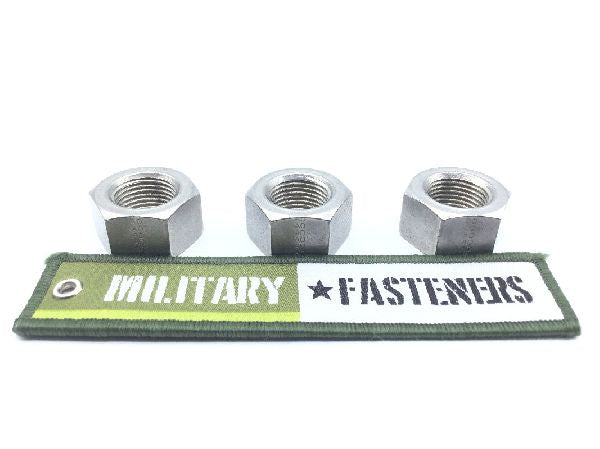

MS51972-8 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 303 or steel comp 304 or steel comp 305

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

2b

Thread Series

Unf (fine thread)

Thread Size

0.750 inches

Bearing Surface Type: Chamfered or washer faced
Material Specification: Aisi 1305 or sae 30305 federal standard all material responses aisi 304 or 30304 aisi303 or303 fed standard 66
Nut Height: Between 0.617 inches and 0.665 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 16
Width Across Flats: Between 1.0880 inches and 1.1250 inches
