MS9025-17 Loop Clamp

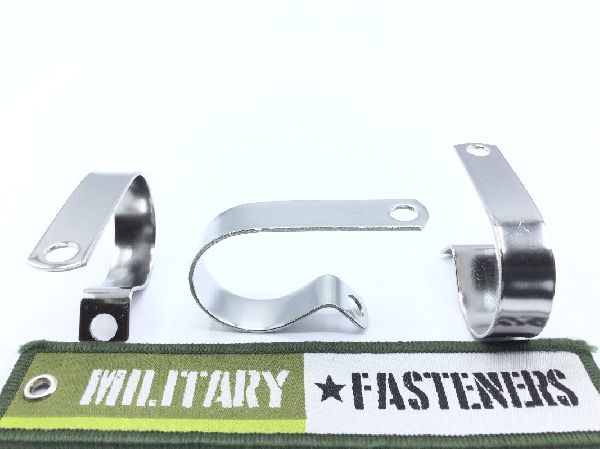

MS9025-17 Loop Clamp (2)

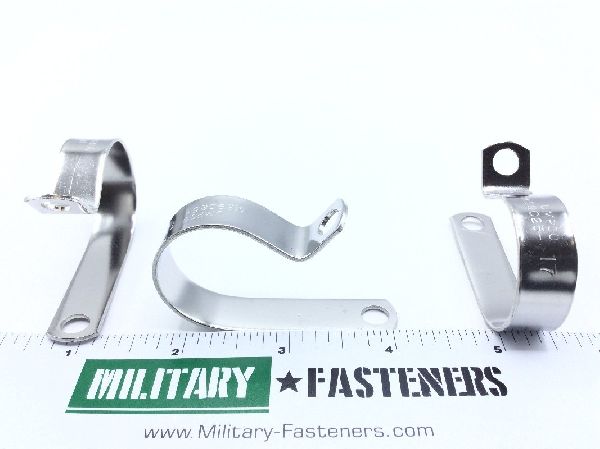

MS9025-17 Loop Clamp (3)

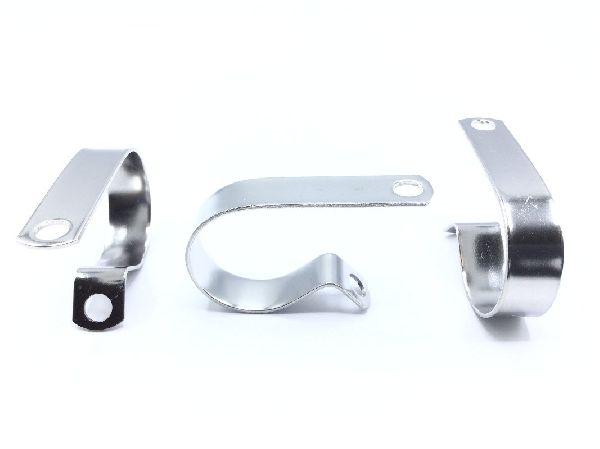

MS9025-17 Loop Clamp (4)
MS9025-17 Loop Clamp (5)

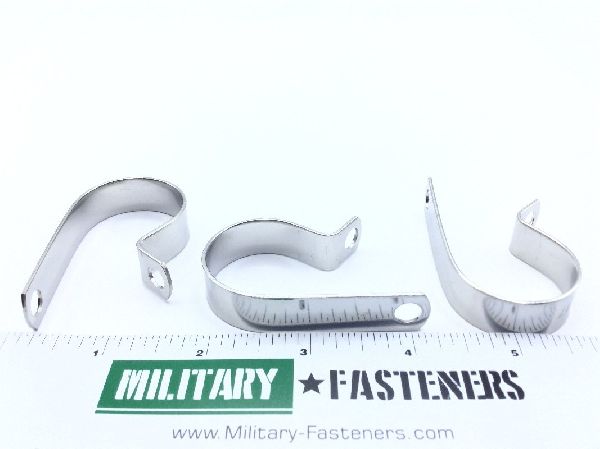

MS9025-17 Loop Clamp (6)
MS9025-17 Loop Clamp
MS9025-17 Loop Clamp (2)
MS9025-17 Loop Clamp (3)
MS9025-17 Loop Clamp (4)
MS9025-17 Loop Clamp (5)
MS9025-17 Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS9025-17 Loop Clamp

Product Series
MS
ECCN
EAR99
Schedule
7616.10.9090
Price per Unit $4.21
Units per Pack 10
Price per Pack $42.10
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $42.10
Add item to quote
Material
Steel comp 321 band
Center To Center Distance Between Loop And Mounting Hole
Between 0.965 inches and 0.975 inches
Distance From Loop Center To Tongue End
Between 1.178 inches and 1.198 inches
Loop Inside Diameter
1.125 inches
Material Specification
Ams 5510 assn standard single material response band
Material Thickness
Between 0.046 inches and 0.056 inches
Overall Width
Between 0.484 inches and 0.516 inches
Slot Length
0.270 inches
Slot Width
0.260 inches
Style Designator
Single loop
