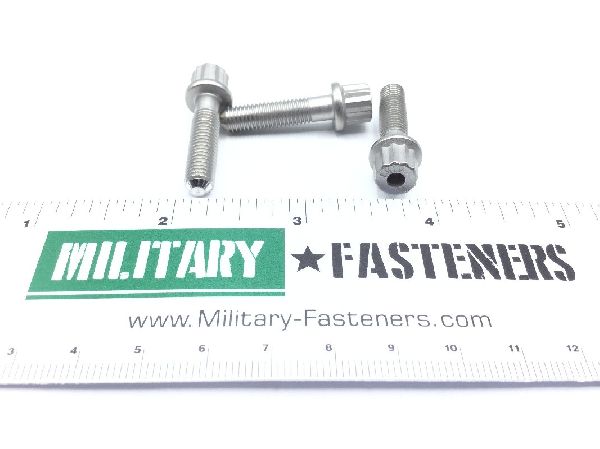

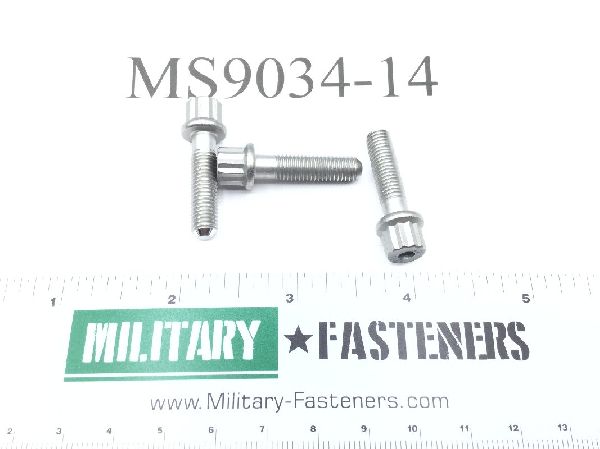

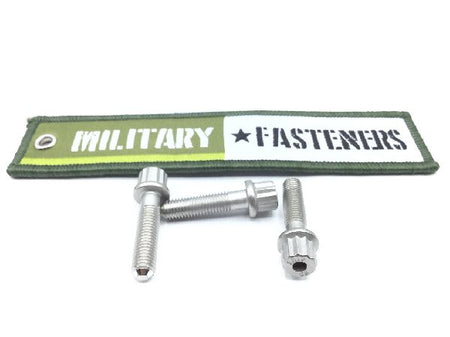

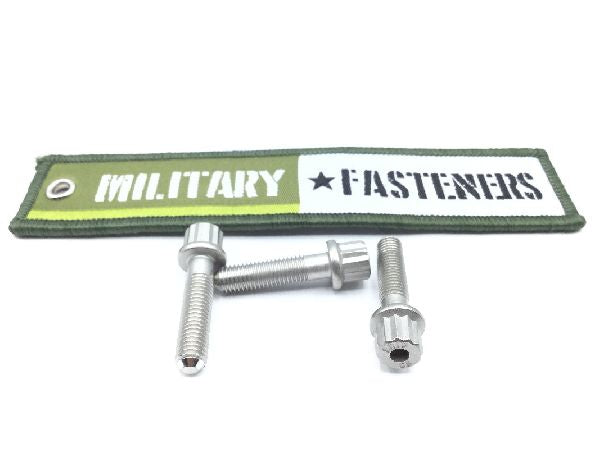

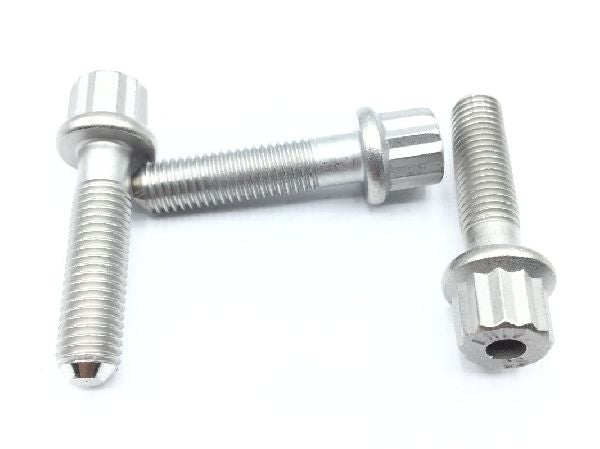

MS9034-14 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $5.54

Units per Pack 10

Price per Pack $55.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $55.40

Add item to quote

Head Style

Double hexagon with hole

Material

Iron alloy 660

Thread Class

Extended Washer Diameter: 0.438 inches
Extended Washer Thickness: Between 0.060 inches and 0.070 inches
Fastener Length: 1.000 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.190 inches and 0.250 inches
Hardness Rating: 248.0 brinell standard and 341.0 brinell standard
Head Height: 0.330 inches
Material Specification: Ams5732 assn standard single material response
Min. Tensile Strength (psi): 130000 pounds per square inch
Minimum Yield Strength: 85000 pounds per square inch
Surface Finish: 63.0 microinches grip
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.750 inches and 0.810 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.304 inches and 0.313 inches
