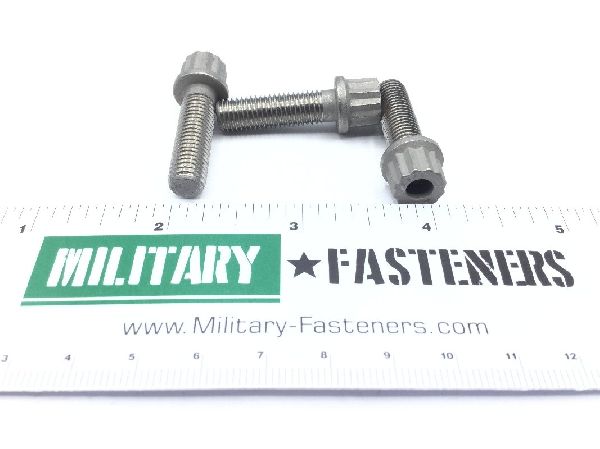

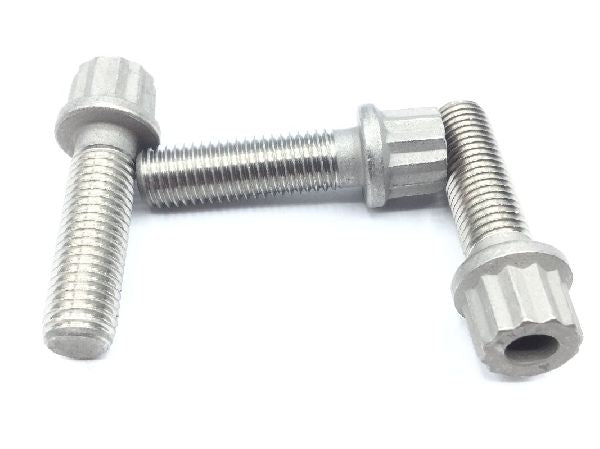

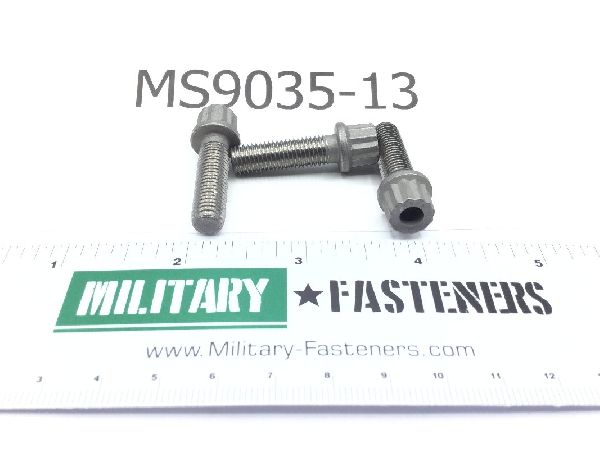

MS9035-13 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $5.47

Units per Pack 25

Price per Pack $136.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $136.75

Add item to quote

Head Style

Double hexagon with hole

Material

Iron alloy 660

Thread Class

Extended Washer Diameter: 0.500 inches
Extended Washer Thickness: Between 0.070 inches and 0.080 inches
Fastener Length: 1.062 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.128 inches and 0.188 inches
Hardness Rating: 248.0 brinell standard and 341.0 brinell standard
Head Height: 0.375 inches
Hole Configuration Style: Double hexagon longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Material Specification: Ams 5737 assn standard single material response
Min. Tensile Strength (psi): 130000 pounds per square inch
Minimum Yield Strength: 85000 pounds per square inch
Surface Finish: 63.0 microinches grip
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.935 inches and 0.975 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.367 inches and 0.376 inches
Hole Diameter: 0.070 inches
